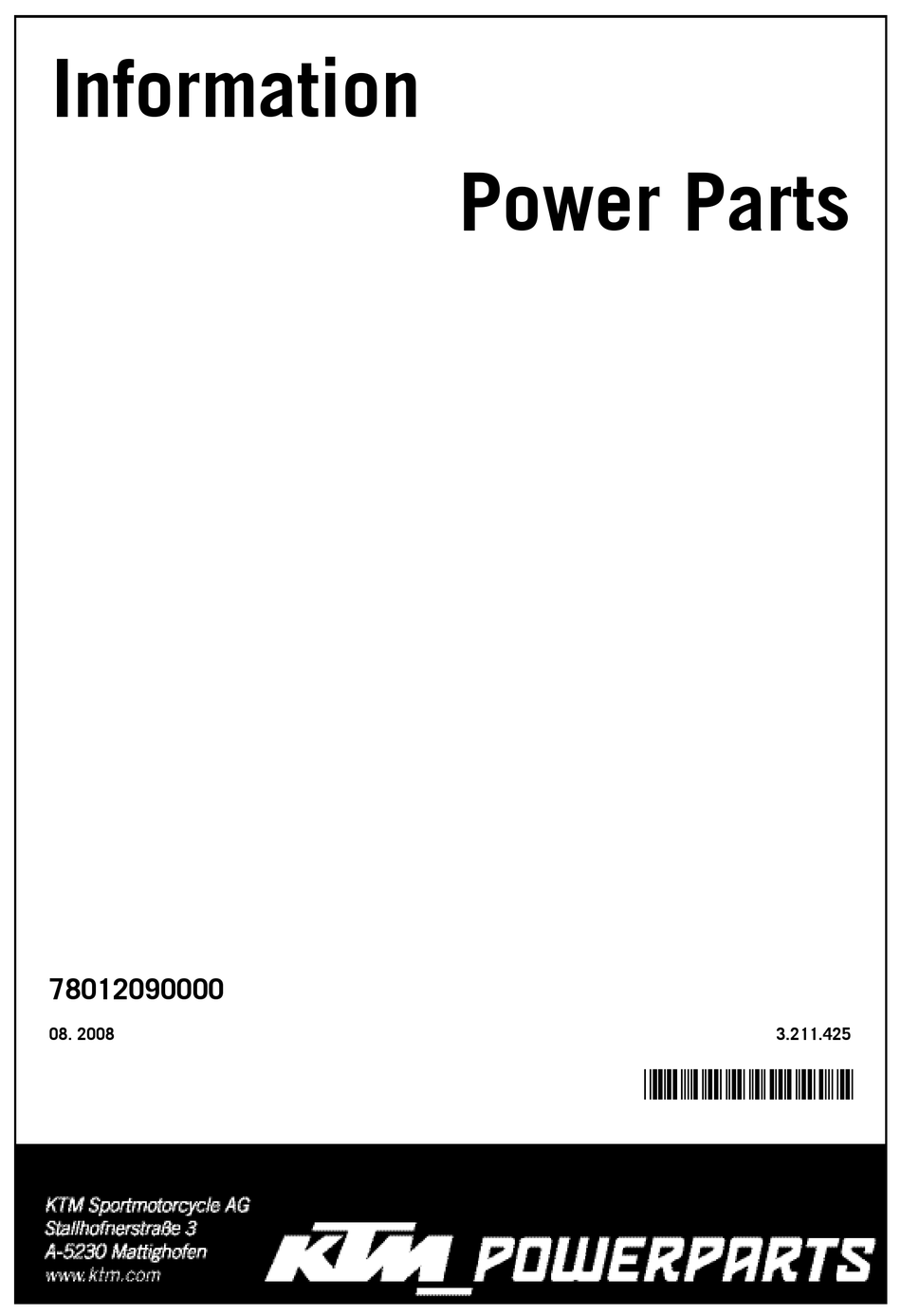

- Page 1 Information Power Parts 78012090000 08. 2008 3.211.425 *3211425*...
- Page 2 KTM Power Parts are race proven to offer the ultimate in performance. KTM WILL NOT BE HELD LIABLE FOR IMPROPER INSTALLATION OR USE OF THIS PRODUCT. Please follow all instructions provided. If you are unsure of any installation procedure, please contact a certified KTM dealer.
- Page 3 Lieferumfang: 1x Roadbookträger 2x ISK Schraube M6x14 2x Linsenkopfschrauben M6x20 4x Beilagscheiben M6 2x Kunststoffscheiben 4x Linsenkopfschraube M4x20 + 8Stk. Beilagscheiben 4x Mutter selbstsichernd M4 1x Bremsschlauchführung 59008019000 4x Distanzbüchse 7x10x7,5 50208020000 nicht im Lieferumfang: Roadbookhalter lose 60012073000 Kabelstrang 59012090060 Fernbedienung Roadbookhalter 60012073080 Montage...
- Page 4 Fernbedienung am Roadbookhalter anstecken. Fernbedienung am Lenker montieren. Stecker lose Lieferumfang Kabelstrang) Kabelstrang anschließen braun auf GND (siehe Sticker Roadbook) rot/gelb auf +12V (siehe Sticker Roadbook Punkt 12). Roadbookhalterkabelstrang am Roadbookhalter lose anstecken. Roadbookhalterkabelstrang am Zugschalter anstecken (siehe Pfeil). Sitzbank demontieren. Tank demontieren.
- Page 5 Scope of supply: 1x road book support 2x M6x14AH screws 2x M6x20 flat head screws 4x M6 shims 2x plastic washers 4x M4x20 flat head screws + 8 shims 4x M4 self-locking nuts 1x brake hose guide 59008019000 4x 7x10x7.5 distance bushings 7x10x7,5 50208020000 Not included in the scope of supply: Roadbookhalter lose...
- Page 6 Connect the remote control to the road book holder. Mount the remote control on the handlebar. Loosely connect the plug (included with the wiring harness) to the wiring harness brown to GND (see road book sticker, item 12) red/yellow to +12V (see road book sticker, item 12). Loosely connect the road book holder wiring harness to the road book holder.
- Page 7 Volume della fornitura: 1x supporto porta road-book 2x vite TCEI M6x14 2x vite a testa bombata M6x20 4x rondella M6 2x rondella in plastica 4x vite a testa bombata M4x20 + 8 x rondella 4x dado autobloccante M4 1x guida per tubo freno 59008019000 4x boccola distanziale 7x10x7,5 50208020000...
- Page 8 Collegare il comando a manubrio al porta road-book. Montare il comando sul manubrio. Collegare il connettore sciolto (in dotazione al cablaggio) al cablaggio, marrone a GND (vedi adesivo sul porta road-book) e rosso/giallo a +12V (vedi adesivo sul porta road-book punto 12). Collegare il cablaggio al porta road-book.
- Page 9 Kit de livraison: 1x support de roadbook 2x vis six pans creux M6x14 2x vis à tête bombée M6x20 4x rondelles M6 2x rondelles en plastique 4x vis à tête bombée M4x20 + 8 rondelles 4x écrous autoblocants M4 1x patte pour la durite de frein 59008019000 4x entretoises 7x10x7,5 50208020000...
- Page 10 Brancher la commande à distance sur le dévideur. Monter la commande à distance sur le guidon. Relier le bouton (dans le kit de livraison faisceau) au faisceau, le marron sur GND (voir l'autocollant roadbook), rouge/jaune sur le 12 V (voir l'autocollant roadbook, point 12). Relier le faisceau sur le dévideur.
- Page 11 Volumen de suministro: 1x soporte para el Roadbook 2x tornillos allen M6x14 2x tornillos alomados M6x20 4x arandelas suplementarias M6 2x arandelas de plástico 4x tornillos alomados M4x20 + 8 arandelas suplementarias 4x tuercas autofijadoras M4 1x guía de latiguillo de freno 59008019000 4x casquillos distanciadores 7x10x7,5 50208020000...
- Page 12 Conectar el control a distancia en el sostén del Roadbook. Montar el control a distancia en el manillar. Conectar el enchufe libre (en el volumen de suministro tramo de cables) en el tramo de cables, marrón sobre GND (véase sticker Roadbook) rojo/amarillo sobre +12V (véase sticker Roadbook punto 12).
