Summary of Contents for Rosewill MAXCUBE
-
Page 3: Front I/O Pinout
Front I/O Pinout USB 3.0 CONNECTOR USB 2.0 CONNECTOR HD Audio CONNECTOR USB+5V USB+5V AUD GND PORT1L PRESENCE# PORT1R SENSE1 RETURN PORT2R NO PIN SENSE SEND NO PIN SENSE2 RETURN PORT2L NO PIN NO PIN © All rights reserved by Rosewill... -
Page 4: Accessory Kit
M/B USB 2.0 USB 2.0 to M/B to M/B Accessory Kit Figure Part’s Name Used for Motherboard tray, Screw-A HDD tray, power supply Screw-B HDD, ODD Screw-C 2.5 inch HDD Cable Tie Cables, wires © All rights reserved by Rosewill... -

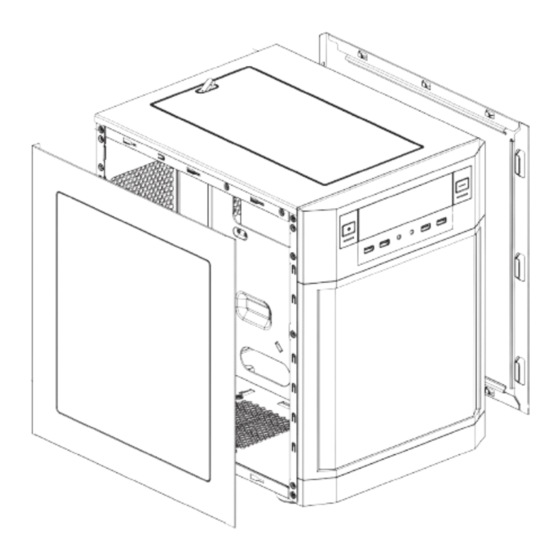

Page 5: Open The Unit
2. Install the Power Supply 2-1. Lay the chassis on its side so the interior is accessible (Figure 2). 2-2. Seat the power supply unit (PSU) to the bottom of the case and secure with Screw-A (Figure 2). © All rights reserved by Rosewill... -
Page 6: Install The Motherboard
4-1. Loosen the screws on the panel cover, 4-2. Unscrew and remove the slot cover. and slide the panel open (Figure 4a). 4-3. Install the add-in card and secure with the screws (Figure 4b). © All rights reserved by Rosewill... - Page 7 5-1. Pull the front panel out and remove it (Figure 1). 5-2. Unscrew the HDD dock and remove it. (Figure 5a). 5-3. Insert a 5.25” drive into the bay and secure with Screw-B (Figure 5b). 5-4. Replace the front panel back onto the case. © All rights reserved by Rosewill...
- Page 8 6-2. Install the 3.5” HDD onto the tray (secure with a screw if desired) (Figure 6b). 6-3. Insert the tray into the HDD cage or the top rail until the latch clicks into a secure position (Figure 6c) (Figure 6d). © All rights reserved by Rosewill...
- Page 9 Slide the side panels back into place and secure shut with thumbscrews (Figure 7a). 7-2. To prevent overheating and damage, clean the dust filter regularly to ensure adequate airflow (Figure 7b). © All rights reserved by Rosewill...
- Page 10 Secure the radiator with screws and put the front panel back on. 8-4. Top location installation (Figure 8b): a. Remove the top dust filter. b. Secure the radiator with screws and put the dust filter back on. © All rights reserved by Rosewill...
-
Page 11: Specifications
120 mm Fans 1 x Rear (pre-installed) 140 mm Fans 230 mm Fans 1 x Front (pre-installed) Side Air Duct Physical Specs Dimensions 11.34” x 14.96” x 14.96” (W x H x D) Weight 13 lb. © All rights reserved by Rosewill... - Page 12 www.rosewill.com...
