Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Model: VM-312 Multi-Format Video/Audio Distributor... -
Page 2: Table Of Contents
Your VM-312 Multi-Format Video/Audio Distributor Connecting the VM-312 Multi-Format Distributor Technical Specifications Figures Figure 1: VM-312 Multi-Format Video/Audio Distributor Figure 2: Connecting the VM-312 Multi-Format Distributor Tables Table 1: VM-312 Multi-Format Video/Audio Distributor Features Table 2: Technical Specifications of the VM-312 Multi-Format Distributor Contents... -
Page 3: Introduction
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors 2 Download up-to-date Kramer user manuals from the Internet at: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com Introduction... -
Page 4: Your Vm-312 Multi-Format Video/Audio Distributor

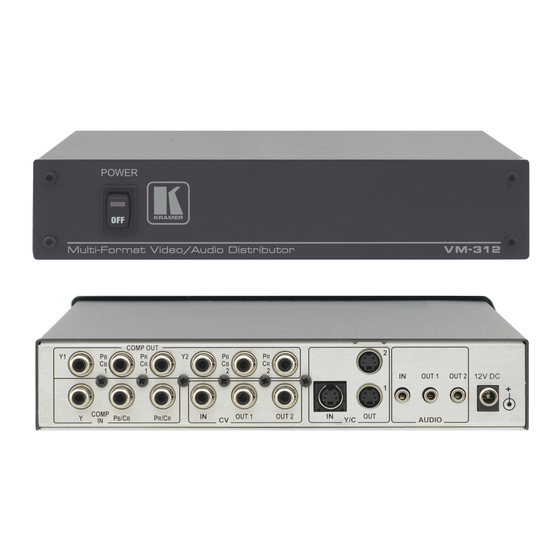

(often associated with low quality cables) Avoid interference from neighboring electrical appliances and position your VM-312 away from moisture, excessive sunlight and dust Your VM-312 Multi-Format Video/Audio Distributor Figure 1 and Table 1 define the VM-312:... -
Page 5: Table 1: Vm-312 Multi-Format Video/Audio Distributor Features
Your VM-312 Multi-Format Video/Audio Distributor Table 1: VM-312 Multi-Format Video/Audio Distributor Features Feature POWER Switch Y1 RCA Connector PB CB 1 RCA Connector PR CR 1 RCA Connector Y2 RCA Connector PB CB 2 RCA Connector PR CR 2 RCA Connector... -
Page 6: Connecting The Vm-312 Multi-Format Distributor
Connecting the VM-312 Multi-Format Distributor Connecting the VM-312 Multi-Format Distributor To connect the VM-312 as illustrated in the example in Figure 2, do the following 1. Connect the component video source and acceptors as follows: Connect a component video source (for example, a betacam video... -
Page 7: Figure 2: Connecting The Vm-312 Multi-Format Distributor
Connecting the VM-312 Multi-Format Distributor Audio Connections are not Shown Plasma Display Composite Video Recorder s-Video Player s-Video Betacam Video Display Player Composite Video Projector Betacam Video Player Recorder Composite Video Display Figure 2: Connecting the VM-312 Multi-Format Distributor... -
Page 8: Technical Specifications
21.5cm x 16.25cm x 4.36cm (8.45” x 6.39” x 1.72”), W, D, H. WEIGHT: 1.2 kg. (2.65 lbs.) approx. ACCESSORIES: Power cord 1 Specifications are subject to change without notice Technical Specifications of the VM-312 Multi-Format Distributor COMP (YUV) 1 component video (Y, B-Y, and R-Y) on RCA connectors 1Vpp/0.7Vpp/75... - Page 9 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
