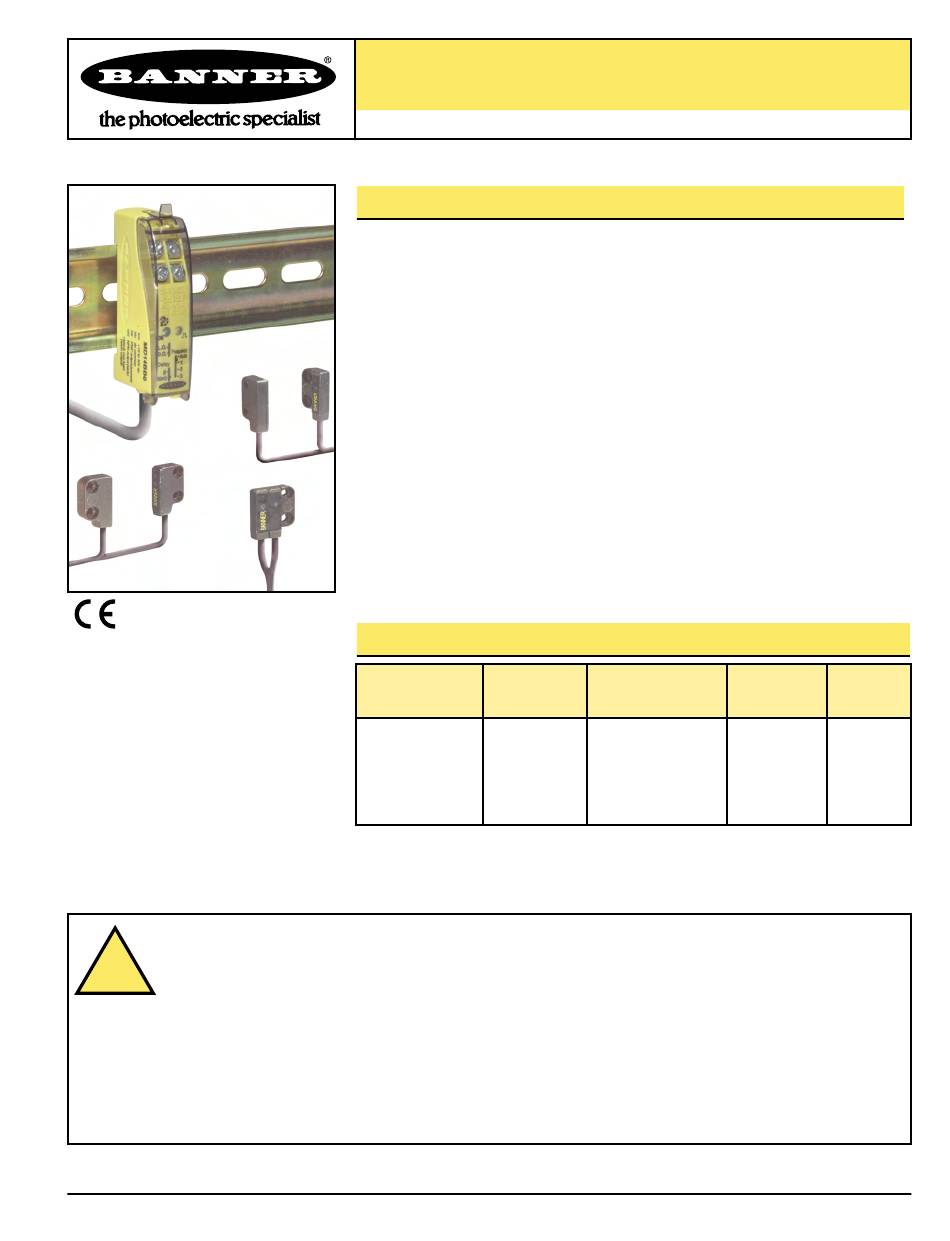

PICO-AMP PICO-AMP Miniature Remote Sensing System
MD14 Modulated Amplifer and Ultra-small Remote Sensors
• Ultra-small remote sensors to fit the tightest locations
• Three fixed frequency selections or Auto Frequency mode to prevent crosstalk in
multiple-sensor applications
• Amplifier clips to 35 mm DIN rail for easy mounting
• Diffuse- or opposed-mode sensors are available
• Opposed-mode sensors are sold in pairs
• Opposed-mode range is 300 mm; diffuse-mode range is 50 mm
• Amplifiers and sensors are sold separately
• Yellow indicator on emitter signals when light is sensed; Yellow indicator on
amplifier signals light sensed and flashes to indicate marginal excess gain
(between 1.0 and 1.5x)
• An excellent option for wafer handling applications, small parts sensing and
pharmaceuticals applications
Models
MD14BB6
MD14BB6Q
*NOTE: 9 m (30') cables are available by adding suffix "W/30" to the model number
of the cabled sensor (e.g., MD14BB6 W/30)
Not a Safety Device
® , MULTI-SCREEN ® , MACHINE-GUARD
™ Miniature Remote Sensing System
PICO-AMP Features
PICO-AMP MD14 Amplifier Models
Sensor
Cable
Compatibility
SP3ER1
SP3ER2 2 m (6.5')
SP8ER1
SP8ER2 4-pin Pico-style QD
SP3D1
™ and PERIMETER-GUARD
Supply
Output Type
Voltage
Bipolar,
10-30V dc
NPN/PNP
™ Systems, and other systems so
