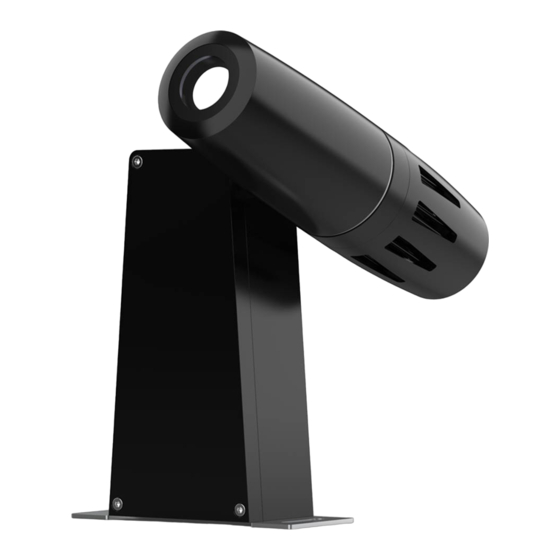

- Page 1 PHOS 45 – 85 s pole mount pro LED-projector moun�ng / comissioning / opera�ng...
- Page 2 Derksen Lich�echnik GmbH. Brand names and trademarks used: All product designa�ons men�oned in this document are trademarks of the respec�ve companies. Technical and design features may be subject to change. For any technical enquiries, please contact our customer service: info@derksen.de Derksen Lich�echnik...
-
Page 3: Table Of Contents
Table of contents 1. Safety instruction ......................4 1.1 General understanding of safety ....................4 1.2 Intended use ..........................4 1.3 Danger of electric shock......................4 1.4 Heat and fire hazard ......................... 4 1.5 Op�cal radia�on hazard ......................5 1.6 Assambly instruc�ons ......................5 2. -
Page 4: Safety Instruction
A projector which has top- re is a safety risk posed by temporary dazzling (e.g. for pled over or a projector head which has dropped can road users, people using stairs, etc.). cause surfaces to catch fire. Derksen Lich�echnik... -
Page 5: Op�Cal Radia�On Hazard
Safety Instruc�ons 1.6 Assambly instruc�ons • The projector’s beam of light can reach high tempera- tures at close range. Keep flammable materials at a safe distance (0.5 m) from the light exit point. This The projector must be firmly a�ached to a stable and load- distance increases the more projectors are used to il- bearing surface or structure. -
Page 6: Overview Of The Phos S Pole Mount Pro
• Heat sink with / without fan • Op�cal system holder ⑯ Moun�ng plate ⑦ Knurled screw for gobo case holder ⑰ Moun�ng strap with turnbuckle ⑧ Gobo case ⑱ Connec�on cable ⑨ Knurled screw for projec�on lens holder ⑲ Cable sleeve Derksen Lich�echnik... -
Page 7: Definition Of Terms
Defini�on of terms 3. Defini�on of terms Term Defini�on An op�cal device that uses an internal light source (LED) to display a two-dimensional LED projector template (gobo) on an image surface. Light Emi�ng Diode Semiconductor component that emits light. Projec�on mo�f Gobo A glass template used to display logos, pa�erns, texts or images with a projector. -
Page 8: Mounting And Installation
Plastic masts are not suitable. • Use only original accessories and spare parts from Derksen that have been specially designed for fitting to the device. Do not modify, disassemble or damage the mounting accessories, as they may then not meet the safety requirements. - Page 9 Moun�ng Moun�ng Thread the mounting strap into the mounting plate. The angled surfaces of the mounting plate and the turnbuckle, which will later surround the mast, must be aligned. Loop the mounting strap around the mast. As far as possible, position the turnbuckle opposite the moun- ting plate and ensure that the head of the clamping screw is on the top.
-
Page 10: Fi�Ng The Moun�Ng Bracket
Use the hexagon socket wrench supplied to do so. Slide the moun�ng bracket over the threaded pin of the moun�ng plate. Fasten the moun�ng bracket with the self-locking nut (a.), spring washer (b.) and washer (c.) a. b. Derksen Lich�echnik... -
Page 11: Moun�Ng The Projector
Moun�ng Align the moun�ng bracket and mount the cylinder head screw (a.) with spring washer (b.) and washer (c.) Check that the ar�culated bracket is firmly seated on the moun�ng plate. a. b. 4.3. Moun�ng the projector Posi�on the device stand on the moun�ng bracket so that the threaded holes in the base plate line up with the holes in the moun�ng bracket. -
Page 12: Connec�Ng To The Power Supply
Connect the two cables to the terminal block. Ensure the device is powered with the power supply voltage specified on the product data sheet (230 V) and your supply cable is connected to a protec�ve conductor via the corresponding contact on the termi- nal block Derksen Lich�echnik... - Page 13 Installa�on Lock the sleeve with the threaded sec�ons of the strain relief using the specified torque. 2,5 Nm Screw the caps onto the strain relief using the speci- fied torque. 2,5 Nm PHOS s pole mount pro...
-
Page 14: Connec�Ng Your Own Supply Cable
This must NOT be dismantled, rotated or modified in any way. This is the only way to ensure its waterproof capability. Release the cable screw connec�on on the back of the device. Derksen Lich�echnik... -
Page 15: Connec�On Op�On For Dimming Func�On (Dali Or 1
Installa�on Release the connec�on terminals and remove the pre-assembled cable. Note that the cable screw connec�on is suitable for a maximum cable diameter of 7 mm. Ensure the projector is powered with the power sup- ply voltage specified on the product data sheet (230 V) and your supply cable is connected to a protec�ve conductor via the corresponding contact on the connec�on terminal. -
Page 16: Setting Up And Operating The Projector
(see sec�on 5.5). Remove visible water droplets with a dry cloth. A few se�ngs s�ll need to be made to the projector head in order to set up projec�on as you wish. • Carefully remove the casing from the projector head. Derksen Lich�echnik... -
Page 17: Inser�Ng/Changing The Projec�On Mo�F (Gobo)
Se�ngs 5.1 Inser�ng/changing the projec�on mo�f (gobo) Loosen the knurled screw. Remove the gobo case. Unscrew the gobo case halves. Insert the gobo into the case with the mo�f back-to- front. The front side must face the light source. (Note: Touch only the edges of the gobo when inser- �ng it into the case.) Ensure that the gobo is placed flat in the case. -
Page 18: Aligning The Projector Head
You can move this stop to reach any possible rota�onal posi�on: Release the hex bolt on the axis. Turn the projector head to the ver�cal posi�on shown here and do not move it again un�l the stop is firmly in place once again Derksen Lich�echnik... -
Page 19: Adjus�Ng The Focus Of The Mo�F
Se�ngs Release and remove the two cylinder head screws. Rotate the stop by 180° so that the lug is on the other side, but facing the projector head again. Fix the stop in place with the two cylinder head screws. 5.4 Adjus�ng the focus of the mo�f Loosen the knurled screw. -
Page 20: Locking The Device Stand
Ensure that the sealing ring is in the correct posi�on and is free from oil, lubricants and other contamina�on Connect the device cover to the protec�ve conductor. Fit the cover with the four cylinder head screws un�l it fits firmly and evenly on the device stand. Derksen Lich�echnik... -
Page 21: Locking The Projector Head
Cleaning and disposal 5.8 Locking the projector head Ensure that the sealing ring is in the posi�on provi- ded for it. Keep the sealing ring free from oil, lubricants and other agents. Screw the casing onto the projector head with at le- ast 6.0 Nm to ensure that it is leak �ght. -
Page 22: Disposal Of The Projector
This direc�ve was enacted in German law with the na�onal Electrical and Electro- nic Equipment Act (ElektroG). In accordance with the ElektroG, Derksen Lich�echnik GmbH is registered as a manufacturer on the German EAR register (Register of Used Electronic Devices). WEEE Reg. No.: DE 98055625 Our products are manufactured exclusively for the B2B (business to business) sector, and they must not be disposed of with household waste or at collec�on points at local public waste disposal facili�es. -
Page 23: Dimensions
Technical specifica�ons 8.2 Dimensions Depending on the focal length of the lens selected and LED output, the dimensions shown above result in the following sizes: Lens focal length A: Total height of the projector Ultra wide-angle, f=45mm 21.0 in / 534 mm Wide-angle, f=63mm 20.1 in / 511 mm Standard, f=85mm... -
Page 24: Photometric Data
The diagrams below provide the corresponding values as based on your projector’s output. Ultra wide-angle lens, f=45 mm, 48° Colour code for projec�on brightness = under normal interior ligh�ng, suitable for coloured pa�erns = in poorly lit rooms, for colourless pa�erns = recommended only for darkened rooms Derksen Lich�echnik... - Page 25 Technical specifica�ons Wide-angle lens, f=63 mm, 35° • The results presented here are approximate values. The result may deviate from reality. • The projec�on sizes provide the maximum diameter that can be projected with a ø 40 mm image. • The projec�on pa�ern is circular and fills the gobo’s image area.
- Page 26 Technical specifica�ons Standard lens, f=85 mm, 26° Telephoto lens, f=135 mm, 17° Derksen Lich�echnik...
-
Page 27: Declaration Of Conformity
Declera�on of conformity 9. Declara�on of conformity Derksen Lich�echnik Manufacturer: Derksen Lich�echnik GmbH 45889 Gelsenkirchen Johannes-Rau-Allee 4 This declara�on of conformity is issued under our sole responsibility Product: PHOS LED-Projektor Type: • PHOS 25 outdoor pro • PHOS 65 outdoor pro DALI •... - Page 28 Derksen Lich�echnik GmbH Johannes-Rau-Allee 4 D-45889 Gelsenkirchen Tel: +49 (0) 2 09 / 9 80 70-0 E-Mail: info@derksen.de Web: www.derksen.de...
