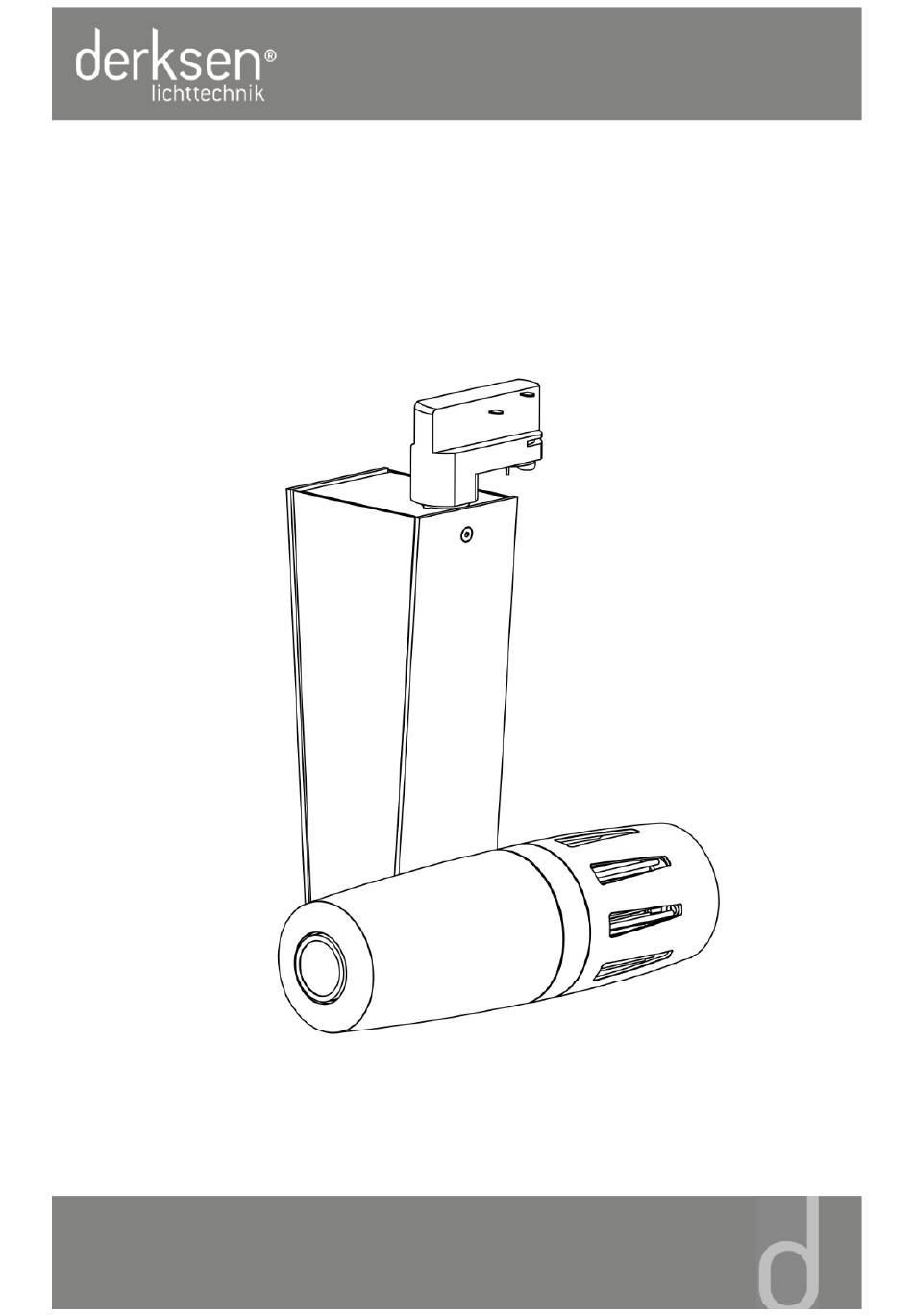

- Page 1 PHOS 25 – 85 LT LED-projector moun�ng / comissioning / opera�ng...
- Page 2 Brand names and trademarks used: All product designa�ons men�oned in this document are trademarks of the respec�ve companies. Technical and design features may be subject to change. For any technical enquiries, please contact our customer service: info@derksen.de 2 / 20 Derksen Lich�echnik...
-
Page 3: Table Of Contents
Table of contents 1. Safety instruc�ons ........................4 1.1. General understanding of safety ....................4 1.2. Intended use ..........................4 1.3. Danger of electric shock......................4 1.4. Heat and fire hazard ......................... 5 1.5. Op�cal radia�on hazard ......................5 1.6. Assambly instruc�ons ......................5 2. -
Page 4: Safety Instruc�Ons
‘gobos’. Do not insert any other projec- and must never be exposed to rain or humidity. �on mo�fs or objects in the projector! The projector can be damaged by unsuitable projec�on mo�fs and can result in fire. 4 / 20 Derksen Lich�echnik... -
Page 5: Heat And Fire Hazard
Safety instruc�ons 1.4. Heat and fire hazard • Install the projector in a loca�on where a distance of more than 1 m can be kept from the eyes of people • Do not operate the device near highly flammable sub- exposed to the beam of light. -
Page 6: Overview Of The Phos Lt (Ligh�Ng Track)
Adjustment screws for �l�ng projector head ④ Gobo case ⑩ Track ligh�ng adapter ⑤ Knurled screw for gobo case ⑪ Power track (not supplied) Projector head comprising: • ⑥ • Heat sink with/without fan • Op�cal system holder 6 / 20 Derksen Lich�echnik... -
Page 7: Defini�On Of Terms
Defini�on of terms 3. Defini�on of terms Term Defini�on An op�cal device that uses an internal light source (LED) to display a two-dimensional LED-Projector template (gobo) on an image surface. Light Emi�ng Diode Semiconductor component that emits light. Projec�on mo�f: Gobo a glass template used to display logos, pa�erns, texts or images with a projector. -
Page 8: Moun�Ng And Installa�On
1. Ensure that the power track has no voltage. The adapter has a bar 3 mm in height on one side, which has a counterpart in the power track and there- fore requires precise alignment. 8 / 20 8 / 20 Derksen Lich�echnik Derksen Lich�echnik... -
Page 9: Dismantling The Projector
Moun�ng Moun�ng 3. Ensure that the lock on the track ligh�ng adapter is in its lateral home posi�on and the rotary switch for pha- se selec�on is in the “OFF” posi�on. 4. Push the correctly aligned adapter into the power track up to the stop. -
Page 10: Se�Ng Up And Opera�Ng The Projector
Carry out set-up work as soon as possible a�er switching on the device. • Carefully remove the casing from the projector head. 5.1. Inser�ng/changing the projec�on mo�f (gobo) 1. Loosen the knurled screw. 2. Entnehmen Sie den Gobohalter. 10 / 20 Derksen Lich�echnik... - Page 11 Se�ngs Unscrew the gobo holder halves. Insert the gobo into the holder with the mo�f mirror- inverted. The mirror side must face the light source. (Make sure to only hold the gobo by the sides when in- ser�ng it into the holder.) Ensure that the gobo is placed flat in the holder.
-
Page 12: Aligning The Projector
3. Tighten the countersunk screw. 5.4. Adjus�ng the focus of the mo�f 1. Loosen the knurled screw. 2. Reposi�on the projec�on lens within the case un�l the mo�f is in focus. 3. Tighten the knurled screw. 12 / 20 Derksen Lich�echnik... -
Page 13: Aligning The Mo�F
Cleaning and disposal 5.5. Aligning the mo�f 1. Loosen the knurled screw un�l the gobo case can be rotated. 2. Rotate the gobo case un�l the mo�f has been aligned as desired. 3. Tighten the knurled screw. 5.6. Locking the projector head 1. -
Page 14: Disposal Of The Projector
This direc�ve was enacted in German law with the na�onal Electrical and Electronic Equipment Act (ElektroG). In accordance with the ElektroG, Derksen Lich�echnik GmbH is registered as a manufacturer on the German EAR register (Register of Used Electronic Devices). WEEE Reg. No.: DE 98055625 Our products are manufactured exclusively for the B2B (business to business) sector, and they must not be disposed of with household waste or at collec�on points at local public waste disposal facili�es. -
Page 15: Dimensions
Technical specifica�ons 8.2. Dimensions Depending on the focal length of the projec�on lens selected, the dimensions shown above should be as follows: Projec�on lens focal length A: Total height of the projector from lower edge of power track Extra wide angle, f=45mm 17.3 in / 440 mm Wide angle, f=63mm 16.0 in / 406 mm... -
Page 16: Photometric Data
The diagrams below provide the corresponding values as based on your projector’s output. Ultra wide-angle lens, f=45 mm, 48° Colour code for projec�on brightness = under normal interior ligh�ng, suitable for coloured pa�erns = in poorly lit rooms, for colourless pa�erns = recommended only for darkened rooms 16 / 20 Derksen Lich�echnik... - Page 17 Technical specifica�ons Wide-angle lens, f=63 mm, 35° • The results presented here are approximate values. The result may deviate from reality. • The projec�on sizes provide the maximum diameter that can be projected with a ø 40 mm image. • The projec�on pa�ern is circular and fills the gobo’s image area.
- Page 18 Technical specifica�ons Standard lens, f=85 mm, 26° Telephoto lens, f=135 mm, 17° 18 / 20 Derksen Lich�echnik...
-
Page 19: Declara�On Of Conformity
• PHOS 25 indoor • PHOS 65 downlight • PHOS 15 LT • PHOS 45 indoor • PHOS 85 downlight • PHOS 25 LT • PHOS 65 indoor • PHOS 25 pole mount • PHOS 45 LT • PHOS 85 indoor •... - Page 20 Derksen Lich�echnik GmbH Johannes-Rau-Allee 4 D-45889 Gelsenkirchen Tel: +49 (0) 2 09 / 9 80 70-0 E-Mail: info@derksen.de Web: www.derksen.de...
