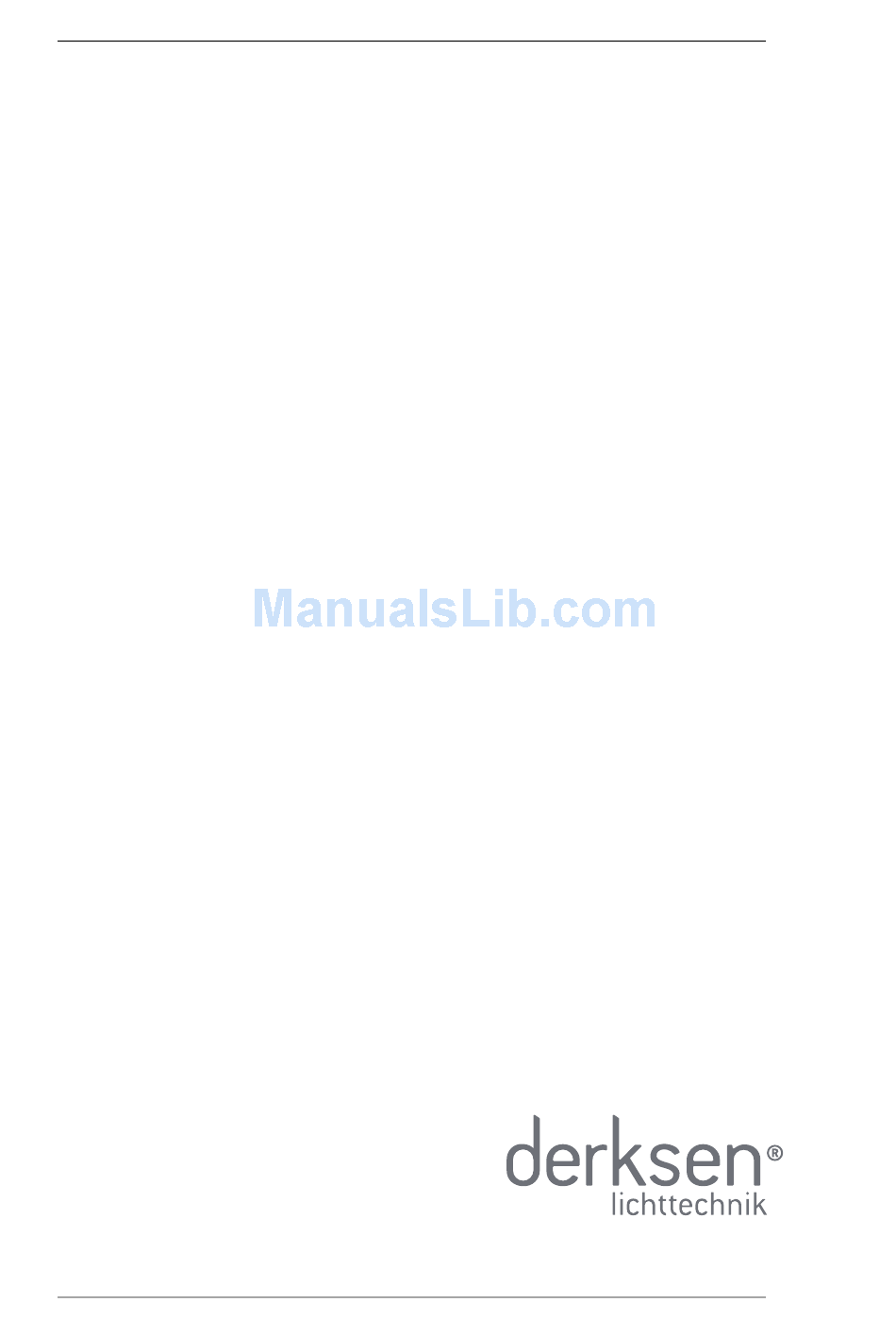

- Page 1 Instruction Manual PHOS 20 LED Projector Wednesday, 08 May 2013 Version 1.4, English PHOS 20 LED PROJECTOR INSTRUCTION MANUAL page 1 of 10 Derksen Lichttechnik GmbH | Sauerlandstr. 5 | 45889 Gelsenkirchen | Germany | www.derksen.de...
-
Page 2: Table Of Contents
Wednesday, 08 May 2013 Version 1.4, English Thank you for deciding to buy this high quality product. The PHOS 20 projector is built exclu- sively in Germany and therefore incorporates the typical German high standards of quality and safety. We hope you enjoy many fascinating hours with your new projector! To use the machine effectively and safely please read the instruction manual carefully first. -
Page 3: A Look At The Machine And Titles Of The Important Parts
Diagram 1: A look at the machine and titles of the important parts lens ring, turn to focus the projected image lens tube cooling element base power plug page 3 of 10 Derksen Lichttechnik GmbH | Sauerlandstr. 5 | 45889 Gelsenkirchen | Germany | www.derksen.de... -
Page 4: Installation
This work should only be carried out by a qualified electrician. Diagram 2: Assembly or removal of the mounting plate mounting plate base (rotated view) page 4 of 10 Derksen Lichttechnik GmbH | Sauerlandstr. 5 | 45889 Gelsenkirchen | Germany | www.derksen.de... - Page 5 3. Make the final electrical connection through an opening in the mounting plate according to regulations. This work should only be carried out by a qualified electrician. page 5 of 10 Derksen Lichttechnik GmbH | Sauerlandstr. 5 | 45889 Gelsenkirchen | Germany | www.derksen.de...
-
Page 6: Set Up And Operation
Individual glass gobos can be created according to your own design and ordered directly from Derksen Lichttechnik. Glass gobos are made from heat resistant, metal coated glass and dichroic colour filters. They hold their colours for a long time even when in constant use and come with a manufacturers 5 year guarantee. -
Page 7: Focussing Of The Projected Image
Version 1.4, English Focussing the projected image The PHOS 20 LED projector is suitable for projecting images over distances ranging from 0.5 to 3 meters increasing in darkness up to 8 meters. 1. Turn the lens ring until the projected image is sharply defined on the chosen backdrop. -
Page 8: Care To Be Taken When Connecting To Power Supply
Only a qualified service technician can carry out repairs to the machine and only original replacement parts must be used. page 8 of 10 Derksen Lichttechnik GmbH | Sauerlandstr. 5 | 45889 Gelsenkirchen | Germany | www.derksen.de... -
Page 9: Specifications
The machine is ready to plug in and run. Required accessories: Glass gobo with individually designed motif. Measurements: page 9 of 10 Derksen Lichttechnik GmbH | Sauerlandstr. 5 | 45889 Gelsenkirchen | Germany | www.derksen.de... -
Page 10: Derksen Lichttechnik Gmbh | Sauerlandstr. 5 | 45889 Gelsenkirchen | Germany | Www.derksen.de Page 2 Of
We reserve the right to alter details pertaining to technology and product performance if and when circumstances dictate the need. Our general terms and conditions apply. page 10 of 10 Derksen Lichttechnik GmbH | Sauerlandstr. 5 | 45889 Gelsenkirchen | Germany | www.derksen.de...
