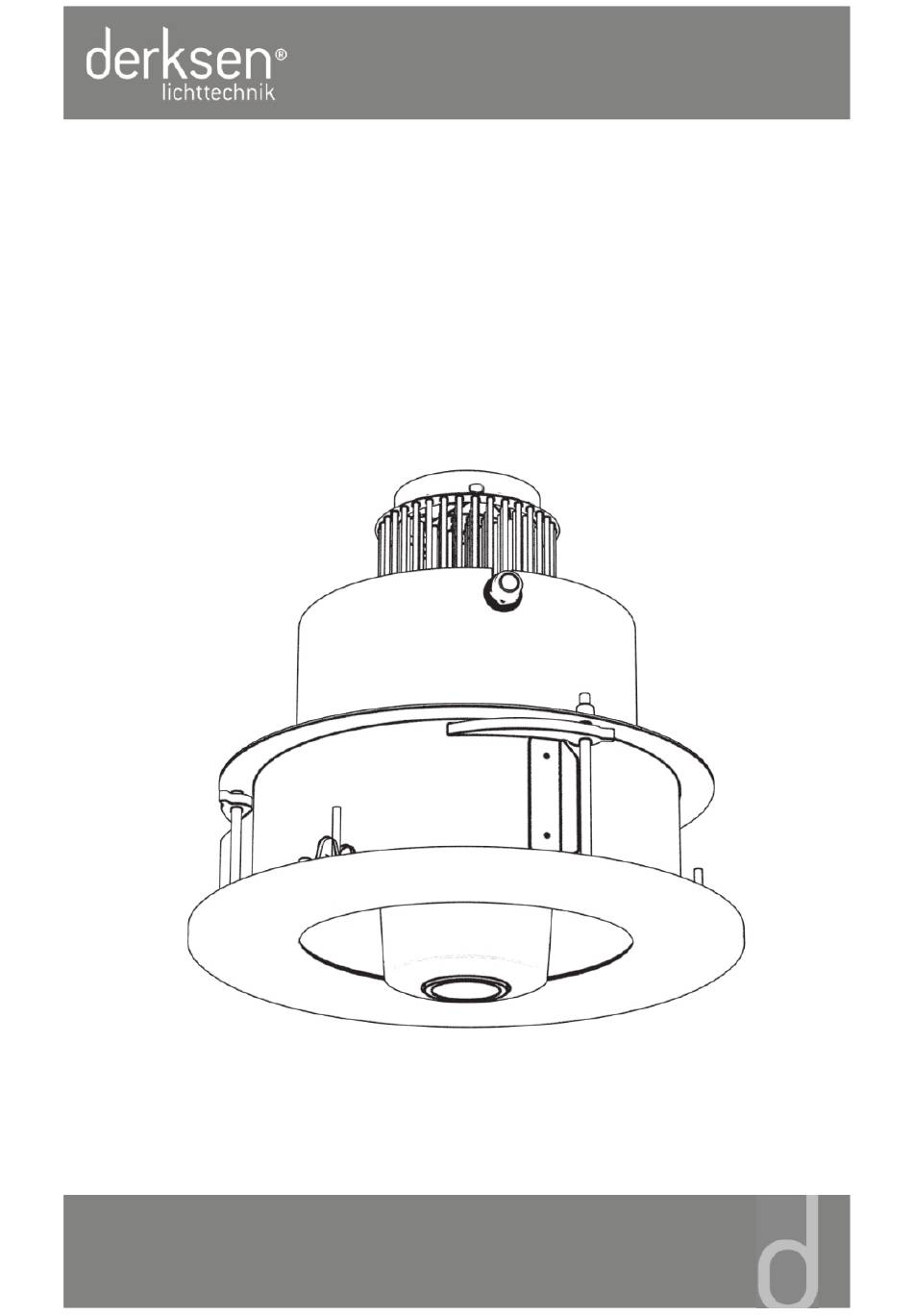

- Page 1 PHOS 25 – 85 downlight LED-projector moun�ng / comissioning / opera�ng...
- Page 2 Derksen Lich�echnik GmbH. Brand names and trademarks used: All product designa�ons men�oned in this document are trademarks of the respec�ve companies. Technical and design features may be subject to change. For any technical enquiries, please contact our customer service: info@derksen.de Derksen Lich�echnik...
-
Page 3: Table Of Contents
Table of contents 1. Safety instruc�on ........................4 1.1 General understanding of safety ....................4 1.2 Intended use ..........................4 1.3 Danger of electric shock......................4 1.4 Heat and fire hazard ......................... 4 1.5 Op�cal radia�on hazard ......................5 1.6 Assambly instruc�ons ......................5 2. -
Page 4: Safety Instruc�On
When using the projector, make sure that the bright cause surfaces to catch fire. beam of light does not dazzle anyone, especially if the- re is a safety risk posed by temporary dazzling (e.g. for road users, people using stairs, etc.). Derksen Lich�echnik... -
Page 5: Op�Cal Radia�On Hazard
Safety instruc�ons 1.6 Assambly instruc�ons • The projector’s beam of light can reach high tempera- tures at close range. Keep flammable materials at a safe distance (0.5 m) from the light exit point. This The projector must be firmly a�ached to a stable and load- distance increases the more projectors are used to il- bearing surface or structure. -
Page 6: Overview Of The Phos Downlight
Moun�ng axis ② Knurled screw for the gobo case holder ⑨ Cover Projector assembly comprising: ③ Gobo case ⑩ • Projector head ④ Knurled screw for projec�on lens holder • Moun�ng casing ⑤ Projec�on lens ⑪ Assembly ring Derksen Lich�echnik... -
Page 7: Defini�On Of Terms
Defini�on of terms 3. Defini�on of terms Term Defini�on An op�cal device that uses an internal light source (LED) to display a two-dimensional LED projector template (gobo) on an image surface. Light Emi�ng Diode Semiconductor component that emits light. Projec�on mo�f Gobo A glass template used to display logos, pa�erns, texts or images with a projector. -
Page 8: Moun�Ng And Installa�On
▶ Only install the device once the mains supply has been switched off. Carefully remove the cover by pulling it evenly away from the assembly ring. Loosen the cylinder head screws un�l the assembly ring can be turned. Separate the assembly ring from the projector assem- bly. Derksen Lich�echnik Derksen Lich�echnik... - Page 9 Moun�ng Moun�ng Insert the assembly ring into your ceiling structure. By �ghtening the countersunk screws, the clamps swi- vel outwards, sink over the edge of the opening and push the assembly ring slowly upwards. Tighten the three countersunk screws evenly un�l the assembly ring fits flat to the ceiling.
-
Page 10: Connec�Ng To The Power Supply
• The PHOS 45 - 85 downlights are devices in protec�on PHOS 25 class II. They must also be powered with the specified power supply voltage (230 V). There is no facility for PHOS 45-85 connec�on to a protec�ve conductor. Derksen Lich�echnik... -
Page 11: Se�Ng Up And Opera�Ng The Projector
Se�ngs 5. Se�ng up and opera�ng the projector WARNING! Risk of burns! You can burn yourself on projector parts which have become hot. ▶ Let the device cool for at least 10 minutes before any set-up work. WARNING! Op�cal radia�on hazard! Op�cal radia�on can cause temporary or permanent eye damage. - Page 12 B. Dark side: The dark side of the coa�ng can be seen through the glass. The dark side faces the lens. Insert the gobo holder into the projector head. Fasten the knurled screw. Derksen Lich�echnik...
-
Page 13: Aligning The Projector Head
Se�ngs WARNING! Risk of burns! You can burn yourself on projector parts which have become hot. ▶ Let the device cool for at least 10 minutes before any set-up work. WARNING! Op�cal radia�on hazard! Op�cal radia�on can cause temporary or permanent eye damage. ▶... -
Page 14: Locking The Projector Head
Se�ngs 5.5 Locking the projector head 1. Screw the casing firmly onto the projector head. Derksen Lich�echnik... -
Page 15: Cleaning
EU-wide return and recycling of waste equipment. This direc�ve was transposed into German law with the na�onal Electri- cal and Electronic Equipment Act [ElektroG]. In accordance with the ElektroG, Derksen Lich�echnik GmbH is registered as a manufacturer with the German registra�on authority S��ung Elektroaltgeräte Register (Office for Old Electrical Equipment Register, EAR). -
Page 16: Technical Specifica�Ons
Technical specifica�ons 8. Technical specifica�ons 8.1 General PHOS downlight 25 PHOS downlight 45 PHOS downlight 65 PHOS downlight 85 Housing material steel / aluminum 8.31 lbs / 8.05 lbs 8.64 lbs / 8.38 lbs 8.86 lbs / 8.60 lbs 8.86 lbs / 8.60 lbs Weight with lens 8.05 lbs / 8.77 lbs... -
Page 17: Dimensions
Technical specifica�ons 8.2 Dimensions Ceiling cut-out Depending on the focal length of the projec�on lens selected, dimension A shown above should be as follows: Projec�on lens focal length A: Overhang over ceiling structure Ultra wide angle lens, f = 45 mm 2.32 in / 59 mm Wide angle lens, f = 63 mm 0.98 in / 25 mm... -
Page 18: Photometric Data
The diagrams below provide the corresponding values as based on your projector’s output. Ultra wide-angle lens, f=45 mm, 48° Colour code for projec�on brightness = under normal interior ligh�ng, suitable for coloured pa�erns = in poorly lit rooms, for colourless pa�erns = recommended only for darkened rooms Derksen Lich�echnik... - Page 19 Technical specifica�ons Wide-angle lens, f=63 mm, 35° • The results presented here are approximate values. The result may deviate from reality. • The projec�on sizes provide the maximum diameter that can be projected with a ø 40 mm image. • The projec�on pa�ern is circular and fills the gobo’s image area.
- Page 20 Technical specifica�ons Standard lens, f=85 mm, 26° Telephoto lens, f=135 mm, 17° Derksen Lich�echnik...
-
Page 21: Declara�On Of Conformity
Declara�on of conformity 9. Declara�on of conformity Derksen Lich�echnik Manufacturer: Derksen Lich�echnik GmbH 45889 Gelsenkirchen Johannes-Rau-Allee 4 This declara�on of conformity is issued under our sole responsibility Product: PHOS LED-Projektor • PHOS 15 indoor • PHOS 45 downlight • PHOS 85 s pole mount Type: •... -
Page 22: Accessories
The 85 mm standard lens can be re- placed with the 63 mm projec�on lens set if a larger image is required at a short distance. Delivery includes: 63 mm wide angle lens, 2 mm spacer ring for inser�on into the projector op�cs. Derksen Lich�echnik... - Page 23 Accessories 85 mm standard lens Art.-No.:......09955120 This projec�on lens is supplied with every PHOS projector. 45 mm wide angle projec�on lens set Art.-No.:......02010920 The 85 mm standard lens can be re- placed with the 45 mm projec�on lens set if a larger image is required at a short distance.
