EasyAG® Profile Probes
February 2015
C o p y r i g h t
©
2 0 0 2 - 2 0 0 9
C a m p b e l l
S c i e n t i f i c ,
I n c .
®
EasyAG
and EnviroSMART
are trademarks of Sentek Pty. Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EasyAG SDI-12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Campbell EasyAG SDI-12

Summary of Contents for Campbell EasyAG SDI-12

  • Page 1 EasyAG® Profile Probes February 2015 C o p y r i g h t © 2 0 0 2 - 2 0 0 9 C a m p b e l l S c i e n t i f i c , I n c .
  • Page 4 (780) 454-2655. Campbell Scientific (Canada) Corp. is unable to process any returns until we receive this form. If the form is not received within three days of product receipt or is incomplete, the product will be returned to the client at the client’s expense.

  • Page 5: Table Of Contents

    Table of Contents PDF viewers: These page numbers refer to the printed version of this document. Use the PDF reader bookmarks tab for links to specific sections. 1. General ............... 1 2. Absolute Data ............. 1 3. Relative Data .............. 1 4.
  • Page 6 Installation Procedure ..............B-3 Removing Access Tubes ............... B-12 C. Site Selection............C-1 D. SDI-12 Commands ..........D-1 Figures 8-1. EasyAG SDI-12 Interface ..............5 A-1. SDI-12 Interface Power Connection ..........A-1 A-2. SDI-12 Interface TTL Connection ..........A-1 A-3.

  • Page 7: General

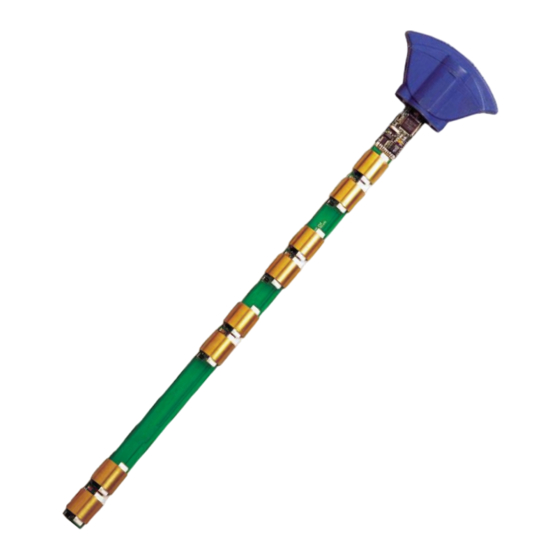

    ® EasyAG Soil Water Content Profile Probes General ® EasyAG probes measure a profile of volumetric soil water content. EasyAG 50 probe measures at 10, 20, 30, and 50 cm. EasyAG 80 probe measures at 10, 30, 50, and 80 cm. TriSCAN versions of these probes also measure soil salinity.
