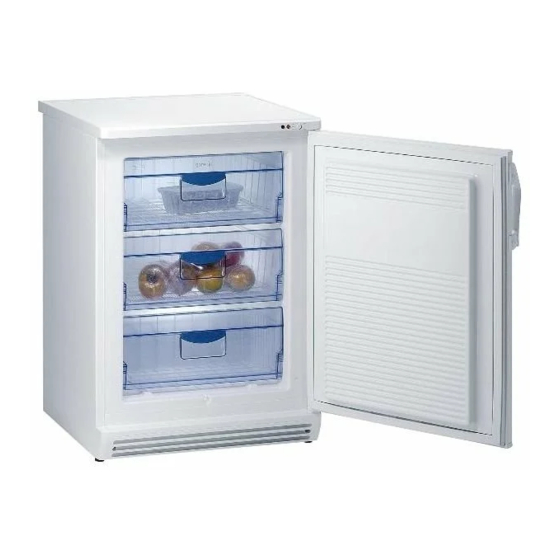

Upright Freezer
Thank you for your trust and for buying this appliance. We hope it will successfully
The upright freezer for domestic use is intended for freezing
fresh food and for long-term storing of frozen food (up to one
year), depending on the kind of food.
Before Putting Into Use.................................................. 9
Important ........................................................................ 9
Placing and Installation ............................................... 10
Description of the Appliance ....................................... 11
Operation Control ........................................................ 11

Before Putting Into Use

 Before connecting the appliance to the mains supply, leave
it for about 2 hours to stand in place where it will later on
be installed. This will reduce the possibility of malfunctions
in the cooling system that might have occurred due
to transport handling.
 Clean the appliance thoroughly, especially the interior (see
Cleaning and Maintenance).
Instructions for Use
These instructions for use were prepared for the user. They
describe the appliance and its correct and safe use. They
were prepared for various types/models of appliances
therefore you might find in it some functions that do not apply
to your appliance.
We Care for the Environment
 Our products use environmentally friendly packaging,
which can be either recycled or disposed of in an
environmentally friendly manner. To this end, individual
packaging materials are clearly marked.
 These instructions are printed either on recycled paper or
chlorine free bleached paper.
 When your appliance finally wears out, please try not to
burden the environment with it; call your nearest authorised
service agent. (See Disposing of the Worn Out Appliance).
Important
 This appliance is manufactured in compliance with relevant
safety standards. However, it is still advisable it is not used
without due supervision by persons with diminished
physical, motoric, or mental capabilities or persons with
inadequate experience or knowledge. The same
recommendation applies to minors using the appliance.
 If you've bought this appliance to replace an old one
equipped with a lock that cannot be opened from inside
(lock, bolt), make sure that the lock is broken. This will
serve the purpose for many years.
Use ..................................................................................12
Maintenance and Cleaning...........................................13
Trouble Shooting Guide ...............................................14
A few tips on how to save power with your
refrigerator-freezer combo
 Observe the installation instructions.
 Do not open the appliance door more frequently than
necessary.
 Occasionally check whether air can circulate freely behind
the appliance.
 Condenser unit mounted on the appliance back wall must
be kept clean at all times (see section "Cleaning the
appliance").
 If the seal is damaged or loose, replace it as soon as
possible.
 Store your food in closed containers or other appropriate
packaging.
 Before placing the food in the refrigerator, let it cool down
to room temperature.
 Defrost your frozen food in the refrigerator compartment.
 Remove the freezer drawers and door as described in the
instructions, in order to make use of the entire capacity.
 Defrost your conventional freezer when a frost layer
approximately 3-5 millimetres thick has accumulated on
the surfaces in the freezer compartment.
 Make sure the shelves are evenly distributed and that the
food is arranged in a way that allows free circulation of air
(heed the recommended food arrangement as described in
the instructions).
 In appliances fitted with a fan, do not block the fan slots.
make it impossible for the children to lock themselves in
the appliance and suffocate.
 Mind to connect the appliance correctly to the mains supply
(see Connection to the Mains Supply).
 Do not touch the cooled surfaces while the appliance
operates, especially not with wet hands, because the skin
might stick to the cold surfaces.
 Do not freeze bottled drinks, especially not fizzy ones such
as mineral water, sparkling wine, beer, cola etc., because
Instructions for Use
EN
9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F 6101 W and is the answer not in the manual?

Questions and answers

Summary of Contents for Gorenje F 6101 W

  • Page 1: Table Of Contents

    Upright Freezer Thank you for your trust and for buying this appliance. We hope it will successfully serve the purpose for many years. The upright freezer for domestic use is intended for freezing fresh food and for long-term storing of frozen food (up to one year), depending on the kind of food.
  • Page 2: Storing Time During Power Supply Interruption

    liquid expands during freezing and the glass bottle is very  Warning! Do not use electric appliances in the refrigerator likely to blow up. or freezer interior, except for those expressly allowed by  Avoid eating frozen food (bread, fruit, vegetables), because the refrigerator-freezer manufacturer.
  • Page 3: Connection To Power Supply

    The connection to the mains supply and earthing have to be Connection to Power Supply made according to current standards and regulations. Connect the appliance with the cable and plug to the power The appliance resists temporary voltage tolerance up to -6 to supply socket outlet with a ground terminal (safety socket).
  • Page 4: Red Control Light

    Red Control Light The red light is on when there is something wrong with the temperature in the freezer (See Trouble Shooting Guide).  If you want to freeze larger amount of fresh food, set the Switching on the Empty Freezer thermostat knob to the position for continuous operation Switch the appliance on and set the thermostat knob to the (yellow light is on).
  • Page 5: Maintenance And Cleaning

    Maintenance and Cleaning Varnished surfaces are cleaned with soft cloth and an Freezer Defrosting alcohol based cleaning agent (for example glass cleaners). When the frost layer in the freezer is 3-5 mm thick, you You may also use alcohol (ethanol or isoprophylic alcohol). should clean the freezer.
  • Page 6: Trouble Shooting Guide

    1 Upper hinge fastener 5 Kick plate or control panel 2 Upper hinge washer 6 Cover plate of the lower hinge 3 Lower hinge 7 Fixture plug of the door hinge 4 Lower hinge washer 8 Door hinge fixture Trouble Shooting Guide During the service, you can come across some troubles that The Freezer Door is Hard to Open in most cases result from improper handling of the appliance...
