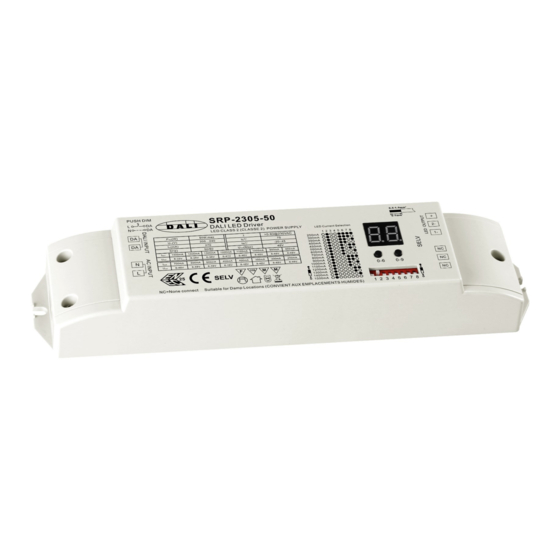

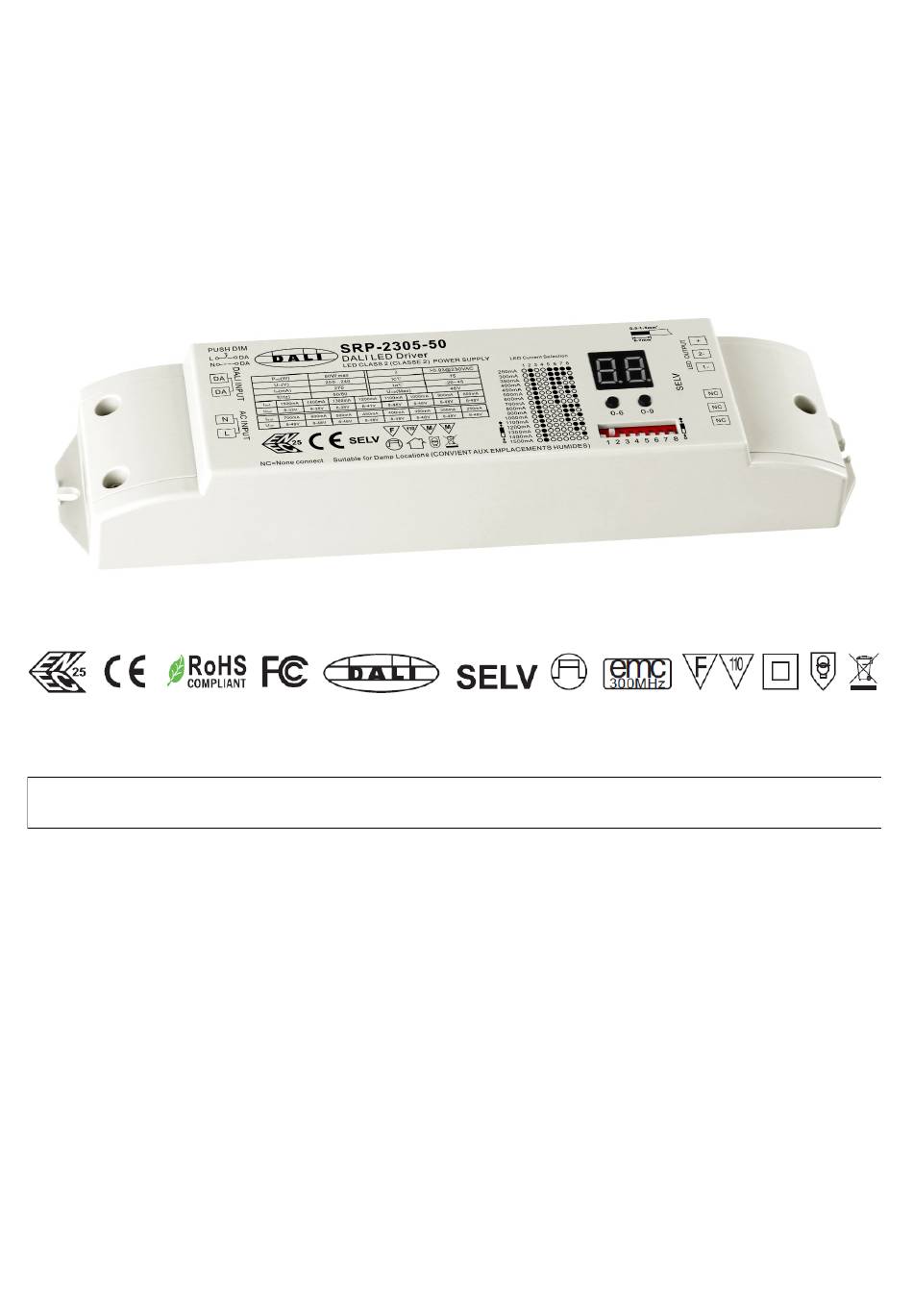

50W DALI DT6 DIMMABLE LED DRIVER
•
DT6 dimmable 1/2-channel TW power supply unit
•
200-240VAC wide input voltage range
•
1/2-channel constant current output (total output power up to 50W)
•
Output current from 250mA to 1500mA selectable via DIP switches
•
Class 2 power supply, completely insulated plastic housing
•
High power factor and efficiency
•
Built-in DALI interface, DALI DT6 device, the device can be controlled via 1/2 DALI address
•
Colour control according to DALI DT6 specifications
•
Complies with DALI IEC 62386-101,102,207 standard
•
Generally compatible with DALI masters supporting DT6 commands
•
IP20 protection class, suitable for indoor lighting projects
•
5 years warranty
Subject to change without notice. Information without guarantee. / 07.01.2021
SRP-2305-50-TW-CC
Product features
1
Advertisement
Table of Contents
Related Manuals for Sunricher SRP-2305-50-TW-CC
Summary of Contents for Sunricher SRP-2305-50-TW-CC
- Page 1 SRP-2305-50-TW-CC 50W DALI DT6 DIMMABLE LED DRIVER Product features • DT6 dimmable 1/2-channel TW power supply unit • 200-240VAC wide input voltage range • 1/2-channel constant current output (total output power up to 50W) • Output current from 250mA to 1500mA selectable via DIP switches •...
-
Page 2: Technical Data
Technical Data Voltage Range 200-240V AC Frequency Range 50/60Hz Power Factor (typ.) > 0.9 Total Harmonic Distortion THD ≤ 15% (@ full load /230VAC) INPUT Efficiency typ. 87% @ 230VAC full load AC Current (typ) 0.27A @ 230VAC Inrush Current (typ) COLD START Max. -
Page 3: Product Dimension
Product dimension Wiring diagram DALI: AC PUSH: Subject to change without notice. Information without guarantee. / 07.01.2021... -
Page 4: Installation
Installation SAFETY AND WARNINGS • Do not install with power applied to the device • Do not set operation current with power applied to the device • Do not expose the device to moisture • Drivers with PWM dimming can cause noise due to vibrations. These can be generated by vibra- ting components in the device as well as by resonant vibrations from other bodies. - Page 5 Important Information for installation Set DALI Address Quantity 3.1 Press and hold down both of the two buttons until numeric digital display flashes, then release the button. 3.2 Click first button to select “1A” or “2A” which means 1 address or 2 addresses. 3.3 Then press and hold down any of the 2 buttons until the numeric digital display stops flashing to confirm the setting.
