Sunricher SRP-ZG9105N-12CCT100-700 Manual

12W 2CH Zigbee NFC Enabled LED Driver(Constant Current)
Important: Read All Instructions Prior to Installation

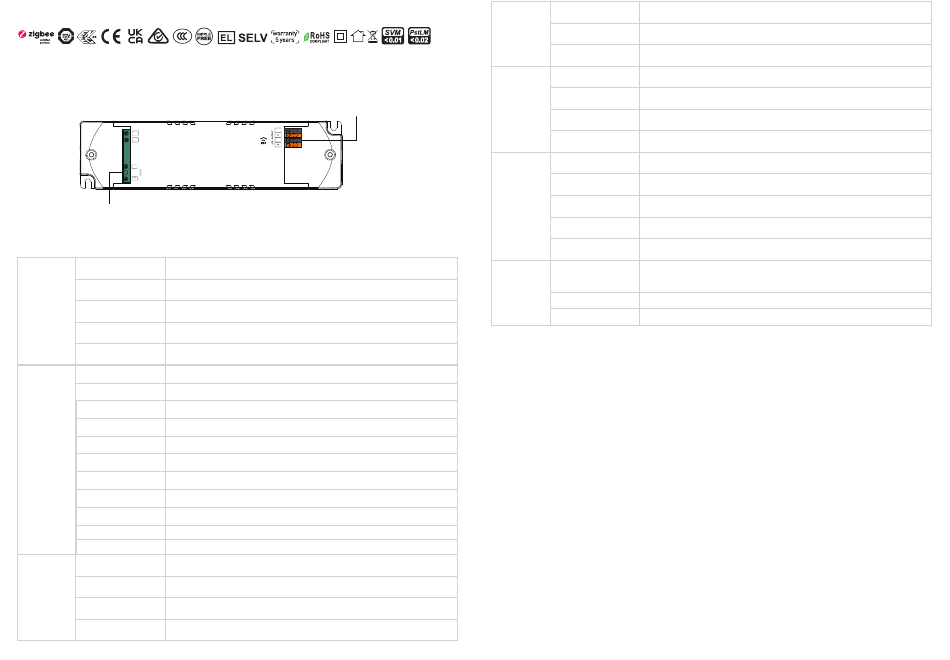

Function introduction
NC
NC
Zigbee Dimmable Driver
L
AC/DC power
input
Product Data
LED Channel
DC Voltage
Current
100-700mA via NFC setting; Min.current gear lower to 0.1mA,Default 300mA
Output
Current Accuracy
Rated Power
Voltage Range
Absolute Voltage Range
Frequency Range
Power Factor (Typ.)
Total Harmonic
Distortion
Input
Efficiency (Typ.)
AC Current (Typ.)
Inrush Current (Typ.)
Leakage Current
Standby Power Consumption
Anti Surge
Dimming Interface
Dimming Range
Control
Dimming Method
Dimming Curve
LED Output
CW-
WW-
2
6-42V, Max.50V
±3%( ±1%@Certain full load) @ full load
Max. 12W
220-240VAC/220-240VDC
196-264VAC/196-264VDC
0/50/60Hz
> 0.95 @ 230VAC Full load*
THD ≤ 12% (@ full load / 230VAC)*
＞77% @ 230VAC full load*
0.1A Max.
Max. 3.96A at 230VAC; 80μs duration
< 5mA /230VAC
＜0.5W
L-N:2KV
Zigbee
0.01%-100%@ Max current
Amplitude/CCR dimming
Linear/ Logarithmic optional
Short Circuit
Yes, remove the fault conditions and re-power the device
Over Current
Protection Yes, remove the fault conditions and re-power the device
Over Temperature Yes, remove the fault conditions and re-power the device
Working Temp.
Max. Case Temp.
Environment
Working Humidity
Storage Temp.
& Humidity
Safety Standards EN61347-1, EN61347-2-13, GB/T 19510.1-2023, GB/T 19510.213-2023
Withstand Voltage
Safety &
Isolation Resistance
EMC
EMC Emission EN55015, EN61000-3-2, EN61000-3-3, GB 17625.1-2022, GB/T 17743-2021
EMC Immunity
MTBF
Others
Dimension
Warranty
*: PF/THD/Eff shall be different per different testing setup and equipment.
• Dimmable LED driver, ZigBee device based on ZigBee 3.0 protocol
• Dimmable LED driver. Max. output power 12W
• 100-700mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
• Dimming curve/Power on state/Soft start/Soft off via NFC program tool.
• Class Ⅱ power supply, full isolated plastic case
• High power factor and efficiency
• Able to On/Off and control LED lighting luminaries' brightness and color temperature
• Amplitude/CCR dimming, smooth and deep dimming
• ZigBee end device that supports Touchlink commissioning
• Can directly pair to a compatible ZigBee remote via Touchlink
• Supports zigbee green power and can bind max. 20 zigbee green power switches
• Compatible with universal ZigBee gateway products
• Waterproof grade: IP20, suitable for indoor LED lighting applications
• 5 years warranty
Safety & Warnings
• DO NOT install with power applied to the device.
• DO NOT expose the device to moisture.
-25℃ ~ +45℃
TC=85℃ (Ta="45℃")
10% ~ 95% RH non-condensing
-40℃ ~ +80℃, 10% ~ 95% RH
I/P-O/P: 3.75KVAC
I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH
EN61547, EN61000-4-2,3,4,5,6,8,11
191350H, MIL-HDBK-217F @ 230VAC full load
and 25℃ ambient temperature
135x35x20mm (L*W*H)
5 Years
