Sunricher SRP-2309-75-TW-CC Quick Start Manual

75w dali dt8 dimmable led driver
Hide thumbs
1
2
3
4
5
Table of Contents

Advertisement

Quick Links

Download this manual

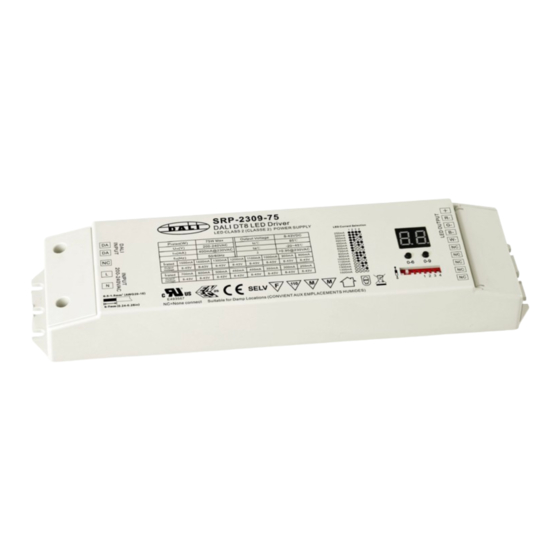

75W DALI DT8 DIMMABLE LED DRIVER
•
DT8 dimmable 4-channel RGBW power supply unit
•
100-277VAC wide input voltage range
•
2-channel constant current output (total output power up to 75W)
•
Output current from 250mA to 1500mA selectable via DIP switches
•
Class 2 power supply, completely insulated plastic housing
•
High power factor and efficiency
•
Built-in DALI interface, DALI DT8 device, the device can be controlled via a DALI address
•
Colour control according to DALI DT8 specifications
•
Complies with DALI IEC 62386-209-:2011 standard
•
Generally compatible with DALI masters supporting DT8 commands
•
IP20 protection class, suitable for indoor lighting projects
•
5 years warranty
Subject to change without notice. Information without guarantee. / 08.01.2021
SRP-2309-75-TW-CC

Product features

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRP-2309-75-TW-CC and is the answer not in the manual?

Questions and answers

Related Manuals for Sunricher SRP-2309-75-TW-CC

Summary of Contents for Sunricher SRP-2309-75-TW-CC

  • Page 1 SRP-2309-75-TW-CC 75W DALI DT8 DIMMABLE LED DRIVER Product features • DT8 dimmable 4-channel RGBW power supply unit • 100-277VAC wide input voltage range • 2-channel constant current output (total output power up to 75W) • Output current from 250mA to 1500mA selectable via DIP switches •...
  • Page 2 Technische Daten Voltage Range 100-277VAC Frequency Range 50/60Hz Power Factor (typ.) >0.96@230VAC Total Harmonic Distortion THD ≤ 15% (@ full load /230VAC) INPUT Efficiency typ. 87% @ 230VAC full load AC Current (typ) 400mA @ @ 230VAC Inrush Current (typ) Cold start max.
  • Page 3 Product dimension Wiring diagram Subject to change without notice. Information without guarantee. / 08.01.2021...
  • Page 4 Installation SAFETY AND WARNINGS • Do not install with power applied to the device • Do not set operation current with power applied to the device • Do not expose the device to moisture • Drivers with PWM dimming can cause noise due to vibrations. These can be generated by vibra- ting components in the device as well as by resonant vibrations from other bodies.
  • Page 5 Important Information for installation Power on level is a DALI parameter that defines the level of a control gear after power is restored. The factory default power on level for this driver is 100, which means the driver will be at 100% intensity when power is resto- red.
