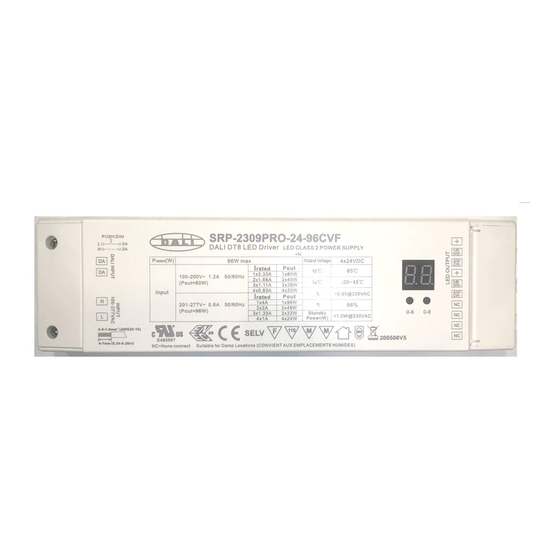

Sunricher SRP-2309PRO-24-96CVF Instructions

4 in 1 96W DALI DT8 LED Driver(Constant Voltage)
2
Important: Read All Instructions Prior to Installation

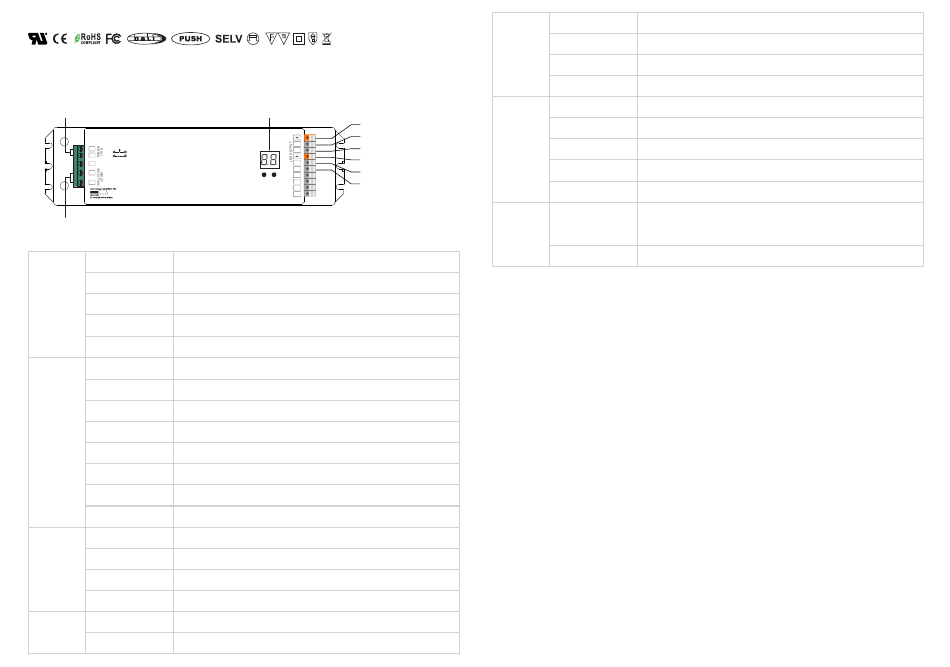

Function introduction
DALI/Push
switch input
PUSH DIM
DA
L DA 96W DALI DT8 LED Driver
DA N DA
NC
N
L
AC 100-277V input
Product Data
LED Channel
DC Voltage
Max. Current
Output
Voltage Tolerance
Rated Power
Voltage Range
Frequency Range
Power Factor (Typ.)
Total Harmonic
Distortion
Input
Efficiency (Typ.)
AC Current (Typ.)
Inrush Current (Typ.)
Leakage Current
Dimming Interface
Dimming Range
Control
Dimming Method
Dimming Curve
Over Current
Yes, recovers automatically after fault condition is removed
Protection
Yes, recovers automatically after fault condition is removed
Over Temperature
Digital display
Common Anode Output(+)
CH 1:1/R/WW output(-)
1/R/
WW-
CH 2:2/G/CW output(-)
2/G/
CW-
Common Anode Output(+)
3/B/
WW-
4/W/
CW- CH 3:3/B/WW output(-)
NC
0-6 0-9
NC CH 4:4/W/CW output(-)
NC
NC
4
24V DC
Max. 4A/ch, ch1+ch2+ch3+ch4=4A
±1%
max. 96W
100-277V AC
50/60Hz
> 0.90 @ 230VAC
THD ≤ 15% (@ full load / 230VAC)
90% @ 230VAC full load
1.2A @ 100VAC, 0.5A @ 230VAC
COLD START Max. 50A @ 230VAC
< 0.5mA /230VAC
DALI DT8 (DALI consumption<2mA)/Push
0.1%-100%
Pulse Width Modulation
Logarithmic
70220094
Working Temp.
Max. Case Temp.
Environment
Working Humidity
Storage Temp.
& Humidity
Safety Standards
Withstand Voltage
Safety &
Isolation Resistance
EMC
EMC Emission
EMC Immunity
MTBF
Others
Dimension
• 4 in 1 DALI DT8 LED driver, max. output power 96W total
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
• Built-in DALI-2 interface, DALI DT8 device
• 4 channels DC 24V constant voltage output
• Class Ⅱ power supply, full isolated plastic case
• Power factor > 0.95, efficiency > 90%
• 4 universal device types in 1: primary N, Tc, XY coordinate, RGBW, can be set by the buttons
• DALI DT8 device to control RGBW outputs or tunable white outputs via a single DALI address
• Only 1 address required to control 4 outputs separately under primary N mode
• Control of four PWM outputs via DALI device type 8
• Color control as defined in the DALI specification device type 8
• Color type primary N, Tc, XY coordinate, RGBW can be set by manual set buttons
• Supports DT8 device commands, compatible with DALI masters that support DT8 commands
• Configuration via DALI master USB interface
• Numeric digital display for setting DALI address manually
• Compatible with universal AC push switch
• Compliant with Safety Extra Low Voltage standard
• Over load, over temperature protection
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
-20℃ ~ +45℃
75℃ (Ta="45℃")
10% ~ 95% RH non-condensing
-40℃ ~ +80℃, 10% ~ 95% RH
UL8750, CAN/CSA C22.2 No. 250.13-14,
EN61347-1, EN61347-2-13 approved
I/P-O/P: 3.75KVAC
I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH
EN55015, EN61000-3-2, EN61000-3-3
EN61547, EN61000-4-2,3,4,5,6,8,11, , surge immunity Line-Line 1KV
192500H, MIL-HDBK-217F @ 230VAC at full load and 25℃
ambient temperature
244*64*32mm (L*W*H)
