Sunricher SRPL-ZG9105N-60CC900-1700 Manual

60w 1ch zigbee nfc enabled led driver(constant current)

Advertisement

Quick Links

60W 1CH Zigbee NFC Enabled LED Driver(Constant Current)
Important: Read All Instructions Prior to Installation
Function introduction
GND
PUSH
PUSH DIM
N
N
DA
ZIGBEE DIMMABLE DRIVER
PUSH
L
L
DA
ACN/
DC-
ACL/
DC+
AC/DC power
input
Product Data
LED Channel
DC Voltage
Current
900-1700mA via NFC setting; Min.current gear lower to 0.1mA,Default 1500mA
Output
Current Accuracy
Rated Power
Voltage Range
Frequency Range
Power Factor (Typ.)
Total Harmonic
Distortion
Efficiency (Typ.)
Input
AC Current (Typ.)
Inrush Current (Typ.)
Leakage Current
Standby Power Consumption
Anti Surge
Dimming Interface
Dimming Range
Control
Dimming Method
Dimming Curve
-
+
1
10-54V, Max.60V
±3%( ±1%@Certain full load) @ full load
Max. 60W
220-240VAC/ 176-280VDC
0/50/60Hz
> 0.96 @ 230VAC Full load*
THD ≤ 12% (@ full load / 230VAC)*
>85% @ 230VAC full load*
0.33A Max.
Max. 25.9A at 230VAC; 148μs duration
< 5mA /230VAC
<0.5W
L-N:2KV
Zigbee
0.01%-100%@ Max current
Amplitude/CCR dimming
Linear/ Logarithmic optional
Short Circuit
Over Current
Protection
Over Temperature
Working Temp.
Max. Case Temp.
Environment
Working Humidity
Storage Temp.
& Humidity
Safety Standards
Withstand Voltage
Safety &
Isolation Resistance
EMC
EMC Emission
LED Output
EMC Immunity
MTBF
Others
Dimension
Warranty
*: PF/THD/Eff shall be different per different testing setup and equipment.
• Dimmable LED driver, ZigBee device based on ZigBee 3.0 protocol
• Dimmable LED driver with linear metal housing. Max. output power 60W
• 900-1700mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
• Dimming curve/Power on state/Soft start/Soft off via NFC program tool
• Class Ⅱ power supply, isolated design
• High power factor and efficiency
• To switch and dim LED lighting luminaries
• Amplitude/CCR dimming, smooth and deep dimming
• ZigBee end device that supports Touchlink commissioning
• Can directly pair to a compatible ZigBee remote via Touchlink
• Supports zigbee green power and can bind max. 20 zigbee green power switches
• Compatible with universal ZigBee gateway products
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty
Safety & Warnings
• DO NOT install with power applied to the device.
• DO NOT expose the device to moisture.
Yes, recovers automatically after fault condition is removed
Yes, recovers automatically after fault condition is removed
Yes, recovers automatically after temperature drop
-25℃ ~ +60℃
TC=90℃
10% ~ 95% RH non-condensing
-40℃ ~ +80℃, 10% ~ 95% RH
EN61347-1, EN61347-2-13, GB/T 19510.1-2023, GB/T 19510.213-2023
I/P-O/P: 3.75KVAC
I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH
EN55015, EN61000-3-2, EN61000-3-3, GB 17625.1-2022, GB/T 17743-2021
EN61547, EN61000-4-2,3,4,5,6,8,11
191350H, MIL-HDBK-217F @ 230VAC full load
and 25℃ ambient temperature
285x30x21mm (L*W*H)
5 Years

Advertisement

loading
Need help?

Need help?

Do you have a question about the SRPL-ZG9105N-60CC900-1700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sunricher SRPL-ZG9105N-60CC900-1700

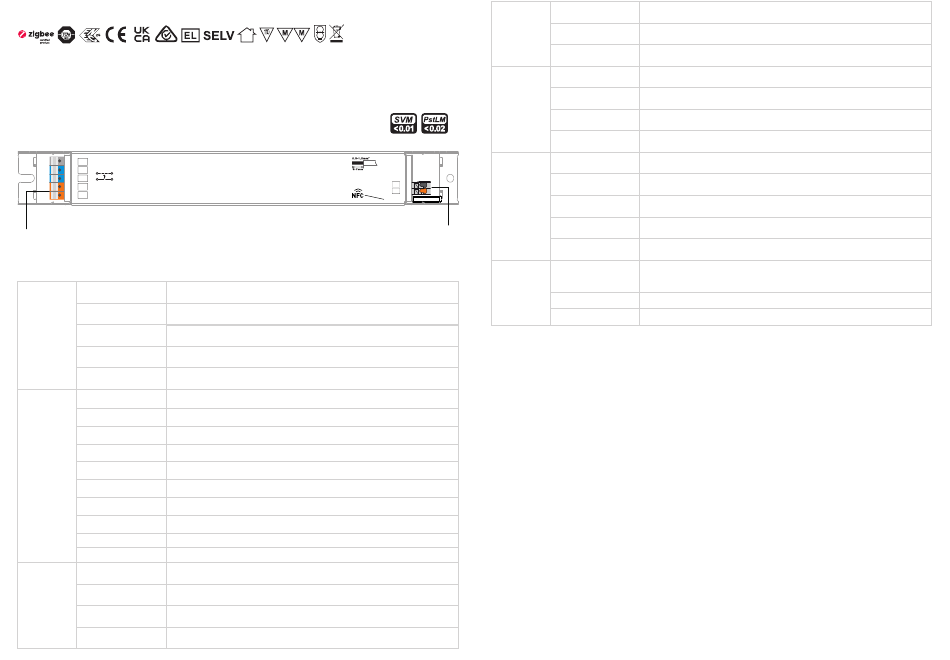

  • Page 1 60W 1CH Zigbee NFC Enabled LED Driver(Constant Current) Short Circuit Yes, recovers automatically after fault condition is removed Over Current Protection Yes, recovers automatically after fault condition is removed Over Temperature Yes, recovers automatically after temperature drop Important: Read All Instructions Prior to Installation -25℃...
  • Page 2 Operation--Zigbee Network 5. Removed from a Zigbee Network through Coordinator or Hub Interface 1.Do wiring according to connection diagram correctly. 2.This ZigBee device is a wireless receiver that communicates with a variety of ZigBee compatible systems. This receiver receives and is controlled by wireless radio signals from the compatible ZigBee From your ZigBee controller or hub interface, choose to delete or reset the system.
  • Page 3 8. Delete Learning to a Zigbee Green Power Switch Function setting Via “SR NFC TOOL” Step 1: Re-power on the device 3 times to start delete Learning to GP switch mode (connected light flashes slowly), 180 seconds timeout, repeat the operation. 4 Different settings.
  • Page 4 Step 3: Unlock device, enter parameters configuring page. With NFC Programming devices Note Locked Unlock it 1) Do wiring according to the wiring diagram . 2) Recommend setting parameters without power-on devices . 2) Please make sure your mobile phone has NFC function and enable it . Working with “SR NFC Tool”...
  • Page 5: Product Dimension

    Step 5: After setting, please save the selected configuration via NFC and power on the device. AC Push Function 1) Click the button to switch ON/OFF 2) Press and hold down the button to increase or decrease light intensity to desired level and release it, then repeat the operation to adjust light intensity to opposite direction.
  • Page 6 Expected Lifetime Output current Module Number 30 °C 40 °C 45 °C 60 °C 900 – 1700 mA SRPL-ZG9105N-60CC900-1700 52 °C 62 °C 66 °C 90 °C(max) 900 – 1700 mA SRPL-ZG9105N-60CCT900-1700 Lifetime > 100,000 h > 80,000 h > 60,000 h >...
  • Page 7 MCB Load Quantity Ipeak Twidth Max.quantity of LED Driver per MCB Module Number C16 C20 C25 D10 D16 D20 SRPL-ZG9105N-60CC900-1700 25.9A 148μs SRPL-ZG9105N-60CCT900-1700 25.9A 148μs Note: I ( A) 1.Those MCB parameters are based on ABB S200 series circuit breakers.
