- Page 1 Gebrauchsanleitung Stehleiter Instructions for use Stepladder Mode d’emploi Escabeau Instrucciones de uso Escalera de tijera Manual de instruções Escadote Istruzioni per l’uso Scala a libro Gebruiksaanwijzing Staladder Návod k použití Schůdky Návod na použitie Stojací rebrík Οδηγίες χρήσης Σκάλα μονής πρόσβασης Руководство...
-
Page 2: Table Of Contents
35708 Haiger, Germany Fon +49 (0) 2773 82-0 Fax +49 (0) 2773 82-1239 Explanation of symbols E-mail: info @ hailo.de www.hailo.de The following signal words and graphical symbols are used in these instructions for use, on the ladder or on the packaging or on the insert. - Page 3 Number of steps including the platform Stepladder (step adjustment) A = maximum height adjustment Reference person for body size and reaching height A = highest possible Dimensions of the ladder reaching height collapsed (delivery condition) B = highest possible standing height A = Lenght B = Width - Stepladder with sides...
-
Page 4: Product Overview

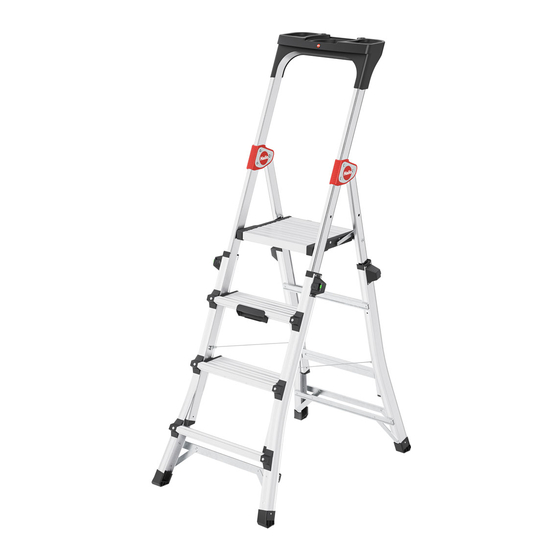

2. Product overview The extending stepladder is a mobile, height- adjustable stepladder. It offers a variable height adjustment by means of the extendable sides and can be very compactly collapsed for transport and storage. The extendable sides cannot be removed from the stepladder. -
Page 5: Scope Of Delivery
3. Scope of delivery 4. Intended use 1 x Instructions for use This ladder is a moveable work tool that can be used in various locations. 1 x Stepladder With this ladder, small scale jobs can be carried 1 x Storage tray out at heights at which use of other work tools is 1 x Phillips screw not commensurate. -
Page 6: Safety Instructions
5. Safety instructions WARNING Inspect the ladder after delivery. Before every use visually check Danger of severe injuries! the ladder is not damaged and is In event of incorrect use or handling of the ladder, safe to use. Do not use a damaged there are risks that may lead to severe injuries or ladder. - Page 7 Do not carry equipment which is Warning, electricity hazard. heavy or difficult to handle while us- ing a ladder. Identify any electrical risks in the work area, such as overhead lines or other exposed electrical equipment Do not wear unsuitable footwear and do not use the ladder where when climbing a ladder.
- Page 8 5. Safety instructions Locking mechanisms for all extend- Do not step off the side of standing ed rungs/steps must be inspected ladder onto another surface. and locked before use. Only climb the ladder when the steps are securely locked. The locking Open the ladder fully before use.
-
Page 9: Assembly And Operation
6. Assembly and operation After delivery and before each use examine the condition of the ladder, the function of all parts must be ensured. NOTE Caution, damage! Always handle the ladder carefully. Extend and collapse the ladder in a deliberate and careful way. - Page 10 6. Assembly and operation 6.3 Setting up the stepladder When setting up the ladder pay attention to the entire secured opening of both ladder parts. Avoid incorrect placement of the ladder. Lock the platform [F] additionally by applying slight pressure with your hand; the platform must rest completely and safely.
- Page 11 3. The side [C-1] locks automatically at the intended locking position. The locking pins of the adjustment unit [G] engage automatically and audibly in the opening provided. 4. Push out the support side [C-2] in the same way and engage it in the same locking position. Only climb the ladder when the steps are securely locked.
-
Page 12: Transport And Storage
7. Transport and storage • Store the ladder in a position which helps it NOTE to remain straight (e.g. hung by the stiles on Caution, damage! proper ladder brackets or laid on a flat clutter free surface). Incorrect handling of the ladder when transporting and storage may lead to damage to the ladder. -
Page 13: Care, Maintenance And Preventive Maintenance
8. Care, maintenance and 9. Service life preventive maintenance When used for its intended purpose and regularly maintained, the ladder is a work tool that can be NOTE used for the long term. Caution, damage! Incorrect handling of the ladder during care and maintenance may lead to damage to the ladder. -
Page 14: Service And Replacement Parts
• The contractor has to ensure that ladders are Fax +49 (0) 2773 82-1239 inspected recurrently for proper condition (visual E-Mail: info @ hailo.de and functional inspection). For this purpose, www.hailo.de the type, scope and time periods of the required inspections must be determined. - Page 15 During the regular inspection of the ladder, inspec- 5. Safety rail / storage tray / handle tion points 1-7 should be taken into account. Check the technical condition of the safety rail If any of the tested points cannot be fully satisfied, or multifunction tray and the handle.
- Page 16 A = 1,73 m A = 3,09 m A = 2,65 m A = 1,90 m 8450-XXX B = 0,52 m B = 1,09 m B = 0,65 m B = 1,09 m C = 1,01 m A = 5.68 ft A = 10.14 ft A = 8.70 ft A = 6.23 ft...
- Page 17 A = 1,43 m A = 1,43 m A = 0,44 m B = 0,56 m B = 0,52 m max. 150 kg 8,8 kg C = 0,16 m C = 0,14 m A = 4.69 ft A = 4.69 ft A = 1.44 ft B = 1.84 ft B = 1.71 ft...
