Electrical connection

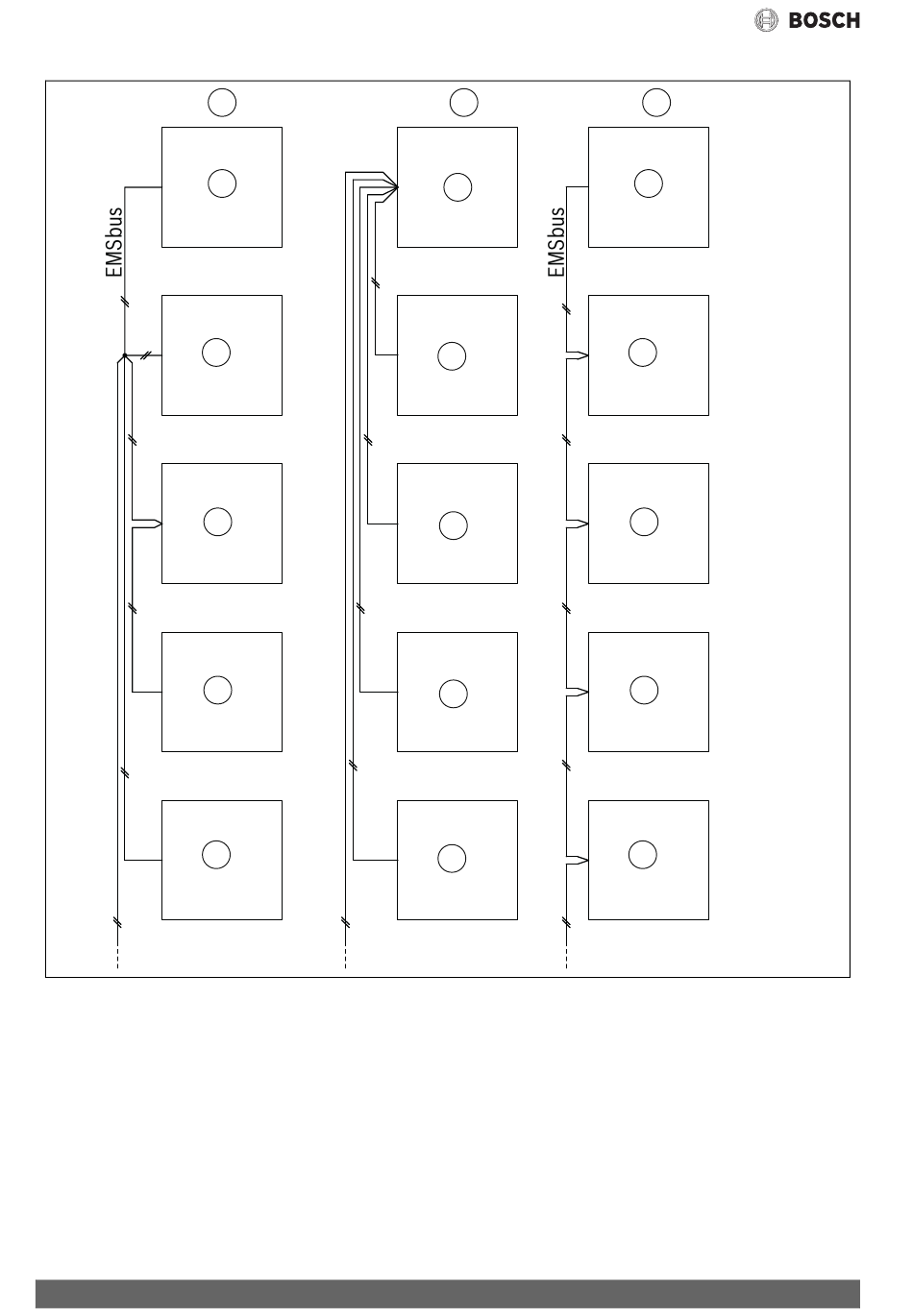

Connection alternative for EMS bus
Fig. 32 Connection alternative for EMS bus
[A] Star configuration and connection in series with external
junction box
[B] Star configuration
[C] Serial connection
[1] Installation circuit board
[2] Accessory modules (room temperature-dependent controller,
heating circuit module and solar module)
