EK Vector TRIO RTX 3080 User Manual page 8

FC TERMINAL
TERMINAL O-RING
15 x 1 mm
EK-Quantum Vector TRIO RTX 3080/3090 Active Backplate comes
with its own terminal, meaning the original terminal, along with two
TERMINAL COVER
(2) 15x1 O-rings, on the EK-Quantum Vector FTW3 3080/3090
water block has to be removed.
Unscrew the three (3) M4 x 20 DIN7984 screws and detach the
terminal from the water block.
M4 x 20 DIN7984

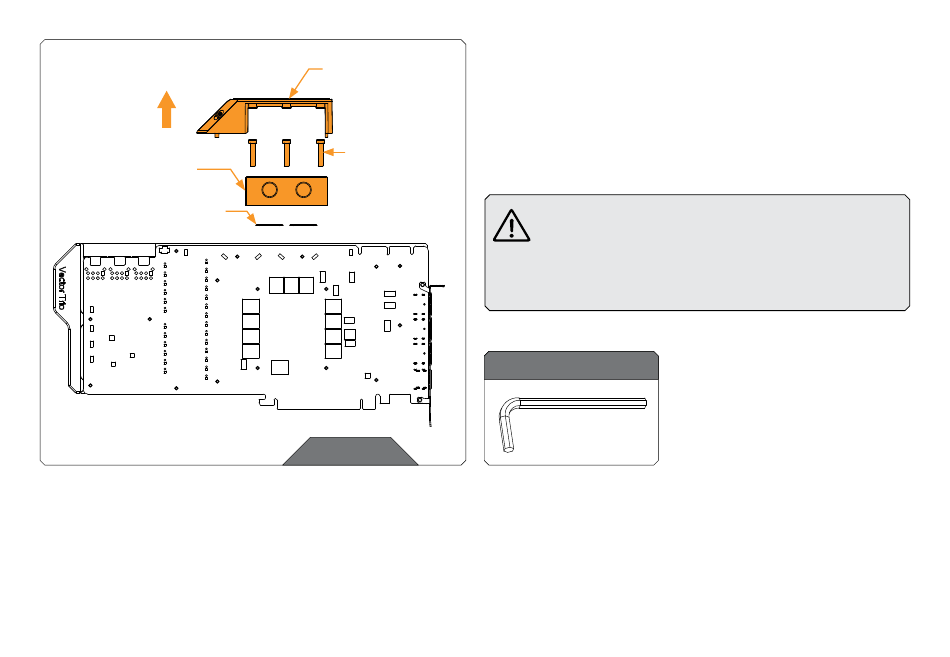

The procedure of the terminal detachment is shown below.
For this Step, you will need:
STEP 1
- 8 -
Attention!
Attention! In case the EK-Quantum Vector TRIO
3080/3090 water block is already filled with coolant,
empty the content of the water block before continuing
with this step. Be careful that the coolant that remained in
the water block does not come in contact with the GPU!
Allen Key 2.5 mm
