Connects2 CAM-10 User Manual

U s e r M a n u a l
CAM-10
PRODUCT FEATURES:
Image Sensor: CMOS
Operating Current: 67mA @ 13.8V
Operating Range: 10.5V – 16V DC (Negative Ground)
Total Pixels: 640 x 480
Resolution: 480 TV Lines
Minimum Illumination: 0.1 Lux
TV System: PAL
Angle: 170 Degrees
Detecting Distance: 0.3m – 2.0m
Ultrasonic Frequency: 40 kHz
Video Output: 1.0V p-p 75 ohms
Operating Temperature: -20 Degrees C to +70 Degrees C
Image: Mirror
DISCLAIMER:
Prior to Installation
Read the manual prior to installation. Technical knowledge is necessary for
installation. Please ensure you use the correct tools to avoid damage to the
vehicle or product.
Connects2 can not be held responsible for the installation of this product.
Technical Support
Connects2 want to provide a fast and suitable resolution should you encounter any
technical issues. With this in mind, when contacting Connects2, try to provide as
much Information as possible. This will speed up the process and help us to help you.
Please use our dedicated online technical support centre: support.connects2.com

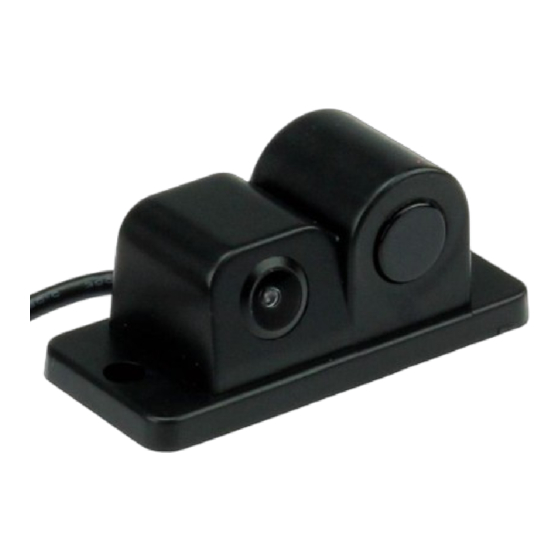

2 in 1 Parking Sensor & Camera
Surface Mounted (Horizontal)
with Adjustable Angle
