Cypress Semiconductor CY8CKIT-042-BLE Quick Start Manual

B
LUETOOTH
1
2
3
4
• Connect the dongle to your computer's USB port.
This demo does not require installing the drivers
for Windows 8 or earlier versions. Refer to Kit
Guide for Windows 8.1 or later
• Press the button SW2 on both the dongle and the
baseboard. The red LED on the baseboard and
the blue LED on the dongle will stay on for three
seconds before turning off, indicating a Bluetooth
low energy connection between the two boards
CY8CKIT-042-BLE QUICK START GUIDE
®
LOW ENERGY
5
1
3

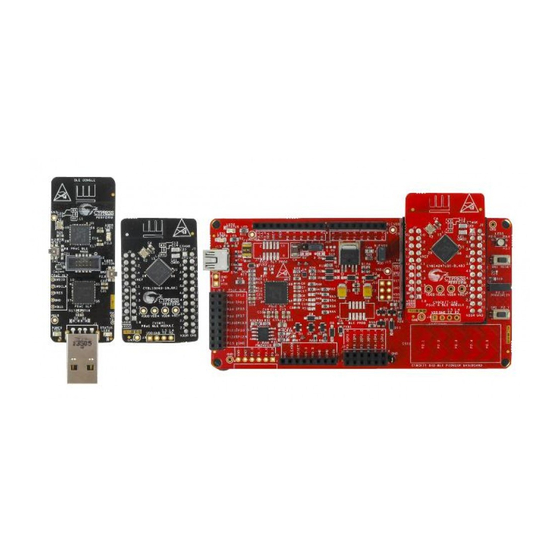

PIONEER KIT
1 CY5671 PRoC
2 BLE Pioneer Baseboard preloaded with
CY8CKIT-142 PSoC
8 3 CY5670 CySmart
4 Four jumper wires (4 inches each)
5 Two proximity sensor wires (5 inches each)
6 Coin cell (3-V CR2032)
7 USB Standard-A to Mini-B cable
7
8 Quick Start Guide (this document)
6
• Insert the 3-V coin cell (included with the kit)
into the coin cell holder on the rear side of
the baseboard
• Move your finger over the CapSense
the baseboard to control the brightness of the
blue LED on the dongle
BLE Module
TM
4 BLE Module
®
USB Dongle
TM
2
4
slider on
®
