Cypress Semiconductor enCoRe CY7C604XX Specification Sheet

V low voltage microcontroller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Features
■
Powerful Harvard Architecture Processor
❐
M8C processor speeds running up to 24 MHz
❐
Low power at high processing speeds
❐
Interrupt controller
❐
1.71V to 3.6V operating voltage
❐
Temperature range: 0°C to 70°C
■
Flexible On-Chip Memory
❐
Up to 32K Flash program storage
• 50,000 Erase and write cycles
• Flexible protection modes
❐
Up to 2048 bytes SRAM data storage
❐
In-System Serial Programming (ISSP)
■
Complete Development Tools
❐
Free development tool (PSoC Designer™)
❐
Full featured, in-circuit emulator and programmer
❐
Full speed emulation
❐
Complex breakpoint structure
❐
128K trace memory
■
Precision, Programmable Clocking
❐
Crystal-less oscillator with support for an external crystal or
resonator
❐
Internal ±5.0% 6, 12, or 24 MHz main oscillator
❐
Internal low speed oscillator at 32 kHz for watchdog and
sleep.The frequency range is 19 to 50 kHz with a 32 kHz
typical value

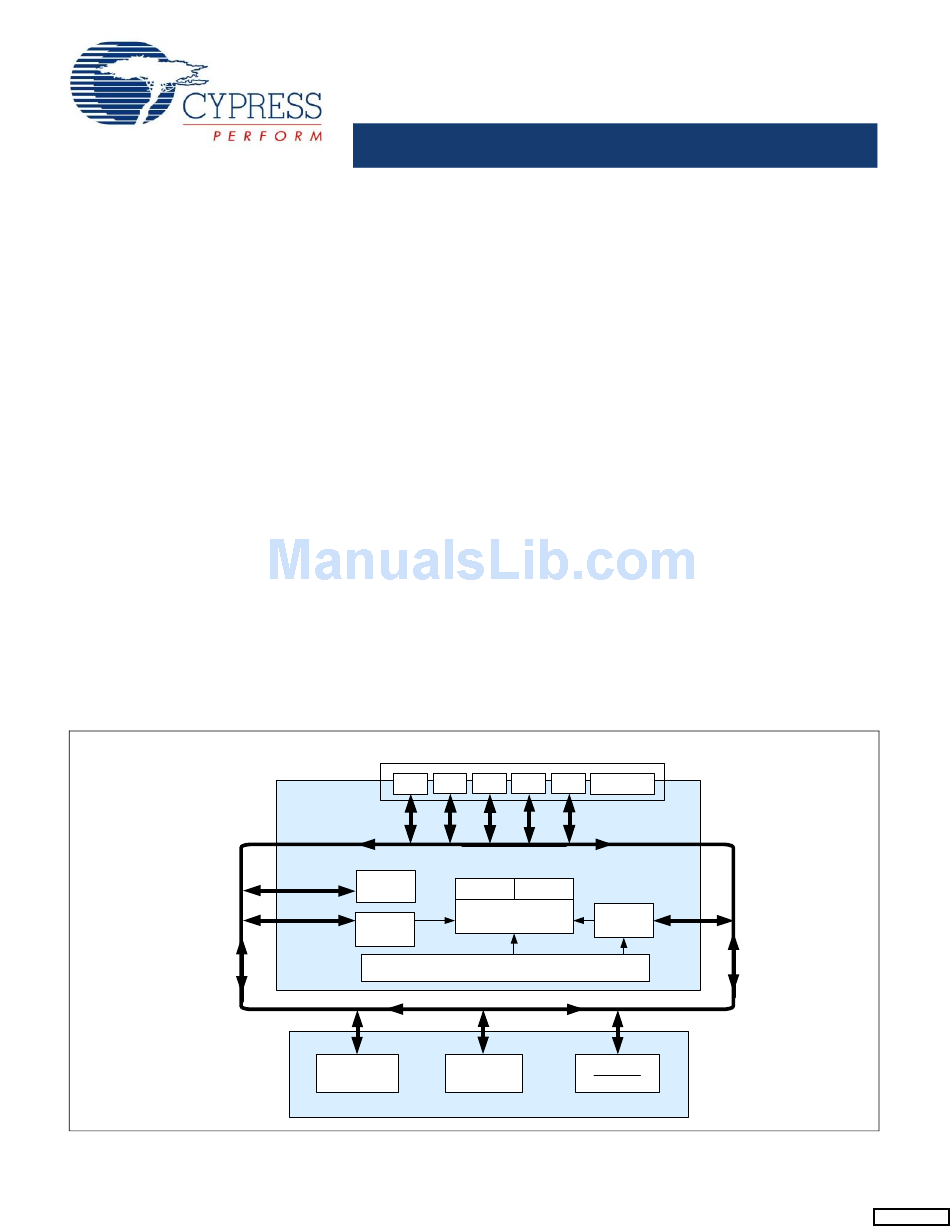

enCoRe V LV Block Diagram
Cypress Semiconductor Corporation
Document Number: 001-12395 Rev *H
enCoRe™ V Low Voltage Microcontroller
Port 4
Port 3
enCoRe V
Low Voltage
CORE
SRAM
2048 Bytes
Interrupt
Controller
6/12/24 MHz Internal Main Oscillator
I2C Slave/SPI
3 16-Bit
Master-Slave
Timers
SYSTEM RESOURCES
•
198 Champion Court
■
Programmable Pin Configurations
❐
25 mA sink current on all GPIO
❐
Pull Up, High Z, Open Drain, CMOS drive modes on all GPIO
❐
Configurable inputs on all GPIO
❐
Low dropout voltage regulator for Port 1 pins. Programmable
to output 3.0, 2.5, or 1.8V at the I/O pins
❐
Selectable, regulated digital I/O on Port 1
• Configurable input threshold for Port 1
• 3.0V, 20 mA total Port 1 source current
• Hot-swappable
❐
5 mA strong drive mode on Ports 0 and 1
■
Additional System Resources
❐
Configurable communication speeds
2
❐
I
C Slave
• Selectable to 50 kHz, 100 kHz, or 400 kHz
• Implementation requires no clock stretching
• Implementation during sleep modes with less than 100 mA
• Hardware address detection
❐
SPI master and SPI slave
• Configurable between 93.75 kHz and 12 MHz
❐
Three 16-bit timers
❐
8-bit ADC used to monitor battery voltage or other signals -
with external components
❐
Watchdog and sleep timers
❐
Integrated supervisory circuit
Port 2
Port 1
Port 0
Prog. LDO
System Bus
SROM
Flash 32K
CPU Core
Sleep and
(M8C)
Watchdog
POR and LVD
System Resets
,
•
San Jose
CA 95134-1709
CY7C604XX
•
408-943-2600
Revised January 30, 2009
[+] Feedback
