BQSPIN
Assembly Instructions
Revised 0 /201
1
9
2018
P.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the BQSPIN and is the answer not in the manual?

Questions and answers

Related Manuals for Walker Edison BQSPIN

Summary of Contents for Walker Edison BQSPIN

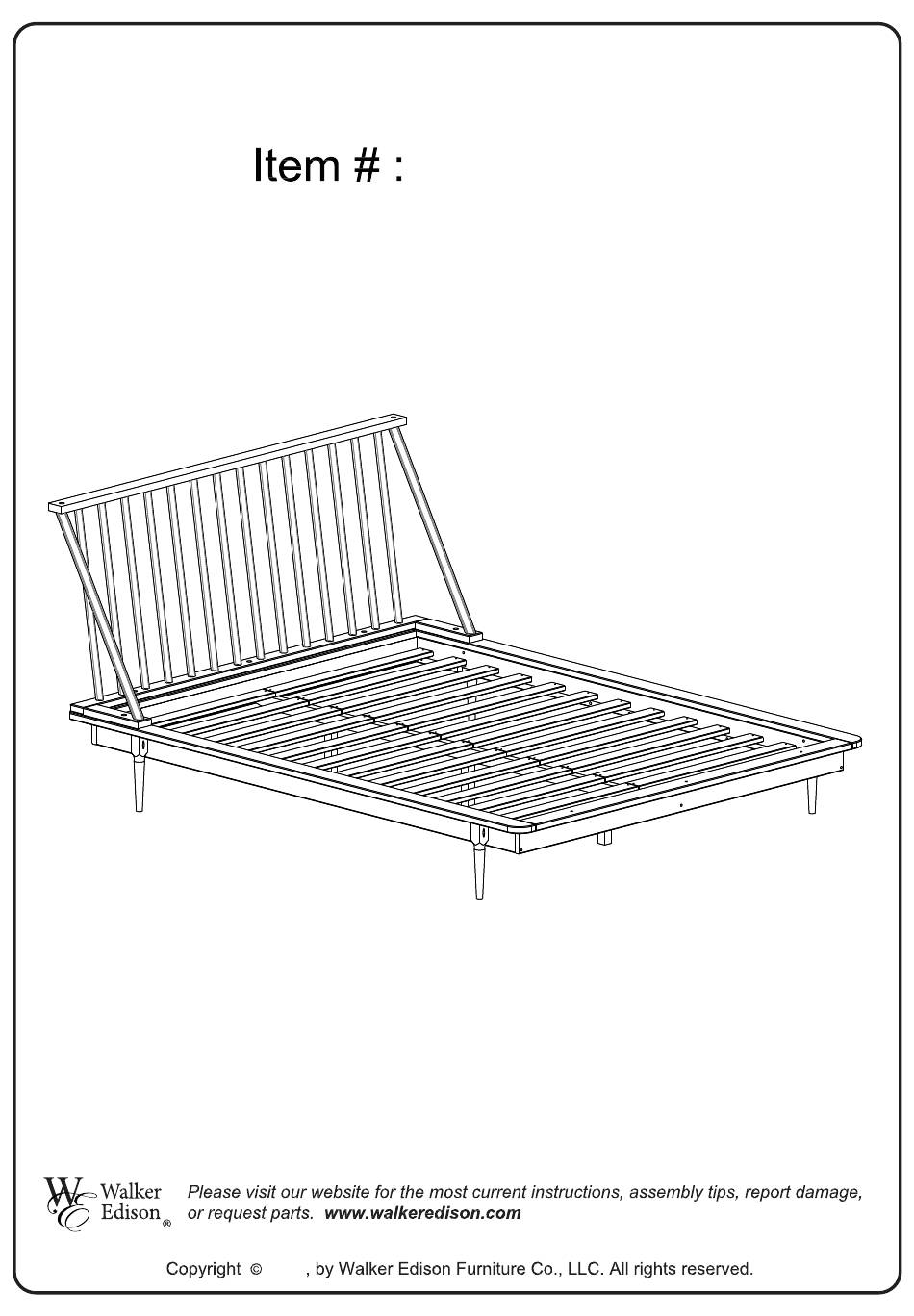

  • Page 1 BQSPIN Assembly Instructions Revised 0 /201 2018...
  • Page 3 Part 1: Spindle Part 2: Slat Part 3: Legs Part 4: Cross bar Part 5: Bracket Part 6: Top rail Part 7: Bottom rail Part 8: Front rail Part 9: Back rail Part 10: Right side rail Part 11: Left side rail Part 12: Feet Part 13: Support beam Part 14: Spindle Support Rail (For assembly use only)
  • Page 4 Hardware List 7x70 mm Bolt Black 13 pcs 3.5x30 mm Screw Black 52 pcs 3.5x30 mm Screw 42 pcs Black 7x50 mm Bolt Black 8 pcs 10x50 mm Wood dowel 08 pcs Wood dowel 10x40 mm 06 pcs Wood dowel 10x30 mm 02 pcs 6x30 mm...
  • Page 5 Step 1 Insert wooden dowels (E) into rails (8,9), dowels (F) into parts (4,5) and dowels (H) into parts (13) Step 2 Attach legs (3) to cross bar (4) using bolt (A) and hex key (L)
  • Page 6 Step 3 Secure part (4) to part (8,9) using bolt (A) and hex key (L) Step 4 Connect parts (10,11) to parts (8,9)
  • Page 7 Step 05 Secure parts (10,11) to parts (8,9) with Screw (A). Step 06 A ach legs (12) to frame parts (10,11) using screw (O) and Union Screw (P). Union Screw (P) should be on the inside of the bed frame, with screw (O) on the outside of the leg. Tighten by using with hex key (L) on both ends of the screw at the same me.
  • Page 8 Step 07 Secure feet to frame using screw (C). Secure parts (10, 11) to parts (9,8) using screw (C) Step 08 Connect parts 5 to part 7. Note the drawing for location of pocket hole. Secure parts (5) to part (7) using screw (C).
  • Page 9 Step 09 Attach parts (13) to part (6) using bolt (D) and hex key (L) Step 10 1 14x Attach spindles (1) to part (6) using screw (C). Pocket holes and screws (C) should be positioned to face away from part (13). To ensure that screws are on the back of the hardboard when assembly is complete.
  • Page 10 Step 11 Start at one end of the headboard. Fit large spindle (13) into part (5) and secure with screw (D) and hex key (L). Attach first spindle (1) to first hole in part (7) with screw (C). NOTE- Be sure to align the first 3 spindles into the correct holes before tightening the first spindle.
  • Page 11 Step 13 Align each spindle (1) with the correct holes in part (7). Secure the first spindle on the opposite end of the headboard with screw (C). Step 14 While pushing the part (6) and part (7) together to hold the spindles tightly, secure each spindle (1) to part (7) using screw (C).
  • Page 12 Step 15 Secure the other large spindle (13) to part (5) with screw (D) and hex key (L). Step 16 B B B Using the spacer provided (N), place the bed slats (2) evenly along the bed rails (10,11). Attach slats (2) to side rails (10,11) and center rail (4) using screw (B).
  • Page 13 Step 17 Insert wooden dowels (G) into frame (9). Attach the base of the headboard (7,5) to the frame (9) using bolt (I), washer (J), and nut (K). Tighten using both the hex key (L) and wrench (M). P.13...
  • Page 14 Step 18 Final Assembly. P.14...
