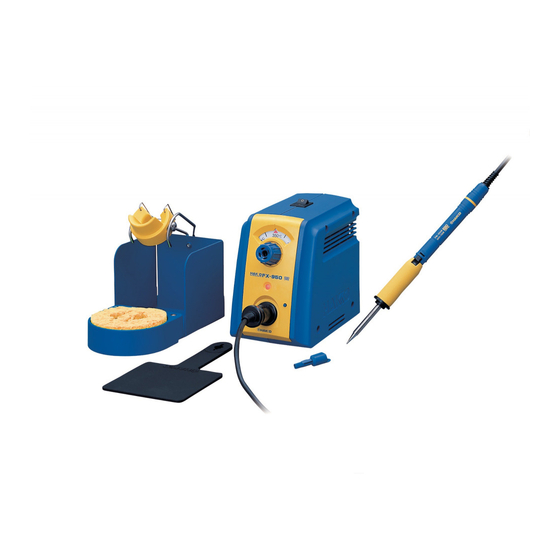

Analog type of HAKKO FX-951
•
Lock key enables temperature control even on this analog type unit
•
Supports the N
Model No.
Power consumption 75W
Temperature range 200-450ºC
Temperature stability ±5ºC at idle temperature
・Station
Output voltage 24V
Dimensions 80(W)×118(H)×138(D)mm
1.2kg
Weight
・Soldering Iron
Power consumption
Tip to ground resistance <2
Tip to ground potential <2mV
Heating element
Length of cord
Total length
Weight
* Length and weight (w/o cord)
system.
2
FX950
70W (24V)
Composit heater
1.2m
188mm (with 2.4D tip)
30g (with 2.4D tip)
Soldering iron
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hakko Electronics FX-950
Summary of Contents for Hakko Electronics FX-950

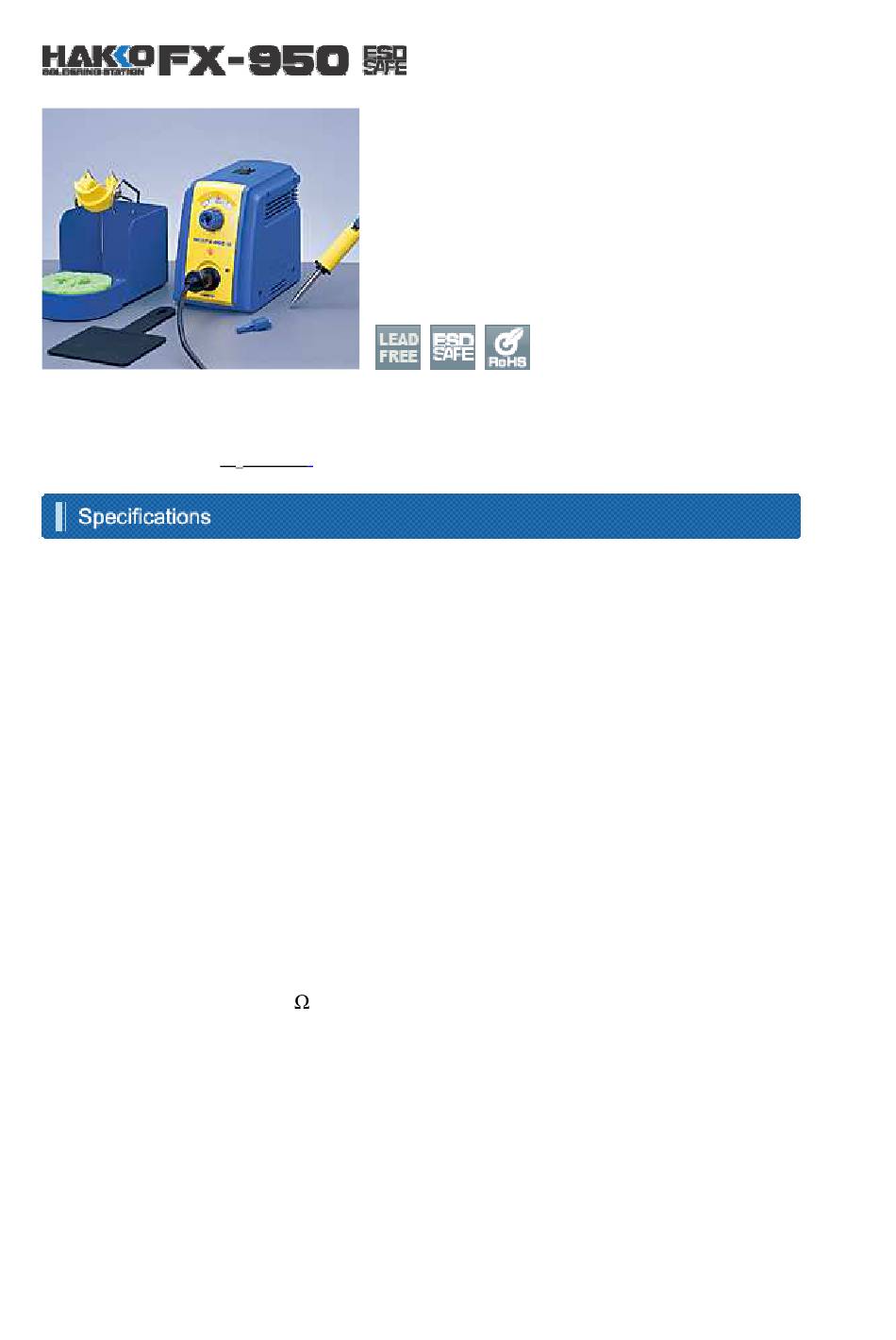

- Page 1 Soldering iron • Analog type of HAKKO FX-951 • Lock key enables temperature control even on this analog type unit • Supports the N system. Model No. FX950 Power consumption 75W Temperature range 200-450ºC Temperature stability ±5ºC at idle temperature ・Station Output voltage 24V Dimensions 80(W)×118(H)×138(D)mm...
- Page 2 Model No. Packing List No.FX950 Soldering Station(FX-950), Soldering Iron(FM- 2028), Lock Key, Heat-Resistant Pad, Iron Holder (FH-101, with cleaning sponge), Instruction Manual Note: A soldering tip is not included in this product. The tips of desired shape should be purchased separately.
- Page 3 85 Variations of Tips 85 variations of HAKKO tips are available for various types of soldering from IC modifications to soldering of power sections. T15 Series for EU Temperature control function using a lock key -The lock key can lock the present temperature. -Digital offset makes temperature correction easy.
- Page 4 Oxidation and Preheating Effect, featuring space- saving design. 163(W)×280(H)×138(D)mm *Reference dimensions Name Figure Remarks HAKKO With Iron holder, FX-950 Control card, Heat resistant pad and Power cord Station (Not necessary to purchase this unit if you have it.) HAKKO With Nitrogen...
- Page 5 HAKKO FX-791 Flow Meter * The others are not others provided by HAKKO Air tube Outer diameter: 6mm Used in combination with a smoke absorber Can be used in combination with the HAKKO 490 smoke cleaner HAKKO 490 Part No. Name Specifications FH101-02 Iron holder...
- Page 6 * Sleep function: If an optional Iron holder (No.FH200-01 or FH200-02) is connected to the FX-950 station via a Connection cable (No.B3253), and the FM-2028 iron is placed on the Iron holder, the sleep function will operate after 6 minutes and the tip temperature will be reduced to below 200°C (400°F).
- Page 7 T15 széria Shape BCM/CM This type differs from Shape BC by the addition of a hollow to its cut face, providing high solder retention capability. It is used for drag soldering and correction of bridging. * Shape BCM/CM are not available for sale or use in the U.S.A. T15-BCM2 Shape-2BC Bevel with indent...
- Page 8 T15-BCM3 Shape-3BC Bevel with indent Shape BC/C This type has a shape like a cone or column cut at a slant, which allows users to select the cut surface size depending on the workpiece. It is used for drag soldering and pre-tinning of lead wires. T15-BC12 Shape-1.2BC •...
- Page 9 • T15-BC2 Shape-2BC • T15-BC3 Shape-3BC • T15-BCF1 Shape-1BC Tinned cut surface only • T15-BCF2 Shape-2BC Tinned cut surface only • T15-BCF3 Shape-3BC Tinned cut surface only • T15-C1 Shape-1C • T15-C4 Shape-4C...
- Page 10 • T15-CF2 Shape-2C • T15-CF3 Shape-3C • T15-CF4 Shape-4C Tinned cut surface only • T15-SBC04 Shape-0.4SBC Shape B All-round type which can be used from any direction and is easy to hold at any position. Possible to solder any surface from small to large. T15-B Shape-B •...
- Page 11 • T15-B3 Shape-0.7B • T15-B4 Shape-0.4B • T15-BLL Shape-BL Long • T15-SB02 Shape-0.2SB • T15-SB03 Shape-0.3SB • T15-SB05 Shape-0.5SB • T15-SB08 Shape-0.8SB • T15-SBS04 Shape-0.4SBS...
- Page 12 • T15-SBS07 Shape-0.7SBS Shape D This type has a shape like a flat-blade screwdriver and is capable of soldering by applying the tip in 2 ways: line and face. The width (size of tip) suitable for the workpiece can be selected, and it can be used for any soldering work.
- Page 13 • T15-DL32 Shape-3.2D Long Just joined as standard tip. • T15-D4 Shape-4D • T15-D52 Shape-5.2D • T15-DL52 Shape-5.2D Long • T15-D2 Shape-2D • T15-DL4 Shape-4D Long • T15-D32 Shape-3.2D...
- Page 14 • T15-XD15 Shape-1.5XD Shape I This type has a thin conical end and is an ultrafine tip which is best suited for soldering at narrow pitches, etc. It is the best for soldering micro components such as 0603, etc. and for repairing high-density- mounting P.W.Bs.
- Page 15 Shape J This type differs from Shape B and I by bending the tip end and is capable of soldering by applying the tip in 2 ways: face and point. It is used for drag soldering and correction of bridging. T15-J02 Shape-0.2J (Shape-0.2RSB) •...
- Page 16 T15-K Shape-K • T15-KF Shape-KF • T15-KL Shape-KL For drag soldering for left-handed. • T15-KU Shape-KU SMD Type : Shape Quad This type is capable of heating plural pins or lead wires at once and is used for rework of SMDs.
- Page 17 • T15-1202 Quad Size 10.3 x 10.3 • T15-1203 Quad Size 12.8 x 12.8 • T15-1204 Quad Size 17.9 x 17.9 • T15-1205 Quad Size 23.4 x 17.3 • T15-1206 Quad Size 22.5 x 16.5 • T15-1207 Quad Size 15.5 x 15.5...
- Page 18 • T15-1208 Quad Size 15.8 x 15.8 • T15-1209 Quad Size 8.4 x 8.4 • T15-1210 Quad Size 15.4 x 12.8 SMD Type : Shape Tunnel This type is capable of heating plural pins or lead wires at once and is used for rework of SMDs.
- Page 19 • T15-1003 Tunnel Size 9.5 x 18.3 • T15-1004 Tunnel Size 9.5 x 15.8 • T15-1005 Tunnel Size 9.5 x 13.2 • T15-1006 Tunnel Size 6.9 x 11.4 • T15-1007 Tunnel Size 7.9 x 18.8 • T15-1008 Tunnel Size 19.5 x 10.2...
- Page 20 • T15-1009 Tunnel Size 13.4 x 20.5 • T15-1010 Tunnel Size 19.5 x 12 SMD Type : Shape Spatula This type is capable of heating plural pins or lead wires at once and is used for rework of SMDs. Soldering for thermal compression of flexible P.W.B., shield cases, connecter, etc. T15-1401 Spatula Size 10.4 •...
- Page 21 • T15-1406 Spatula Size 40 Shape R This type has a groove at the tip end. It is suitable for removing ICs. T15-R20 Shape-2.0R • T15-R23 Shape-2.3R • T15-R27 Shape-2.7R • T15-R34 Shape-3.4R • T15-R48 Shape-4.8R...
