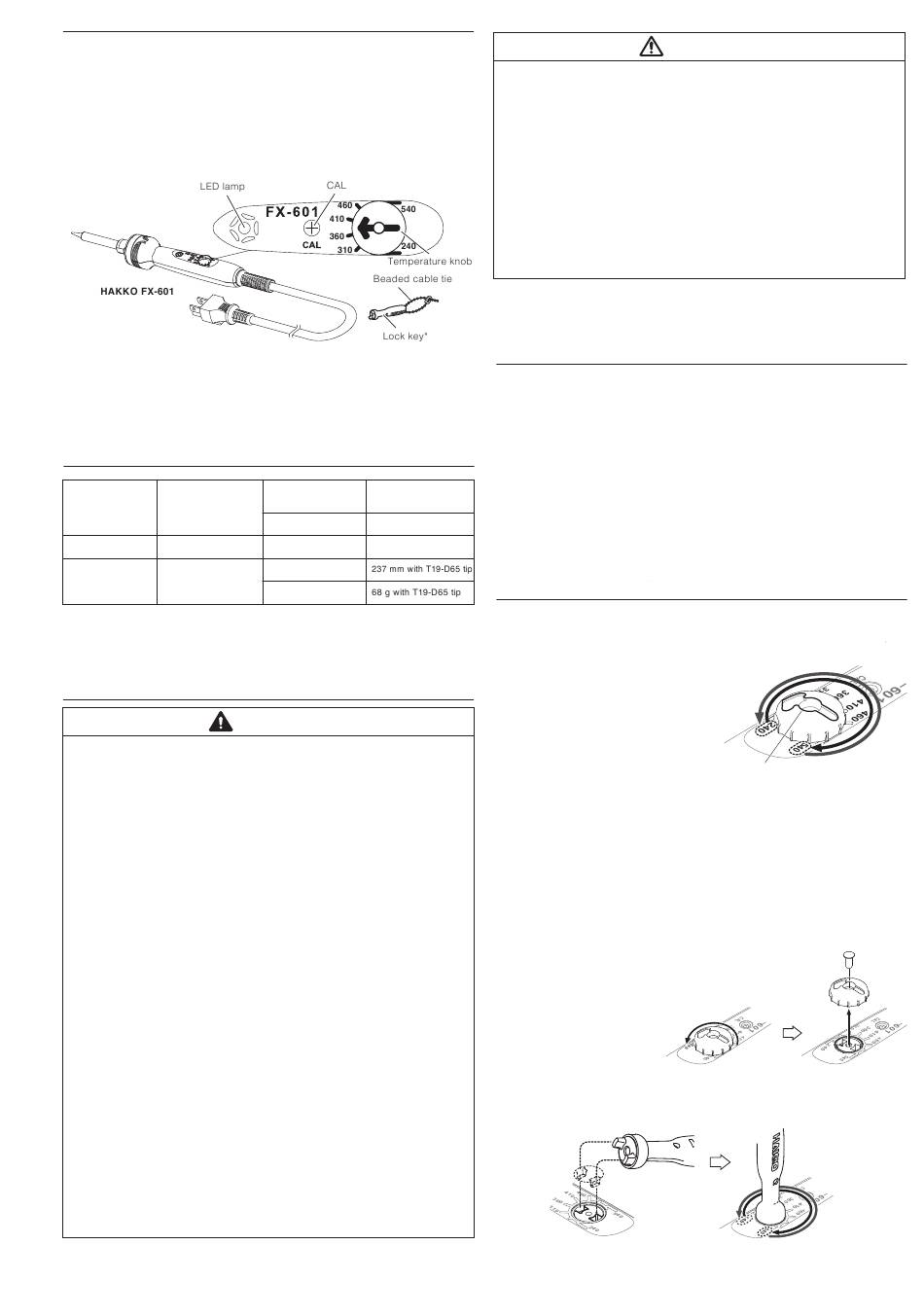

1. PACKING LIST AND PART NAMES
Please make sure that all items listed below are included in the package.

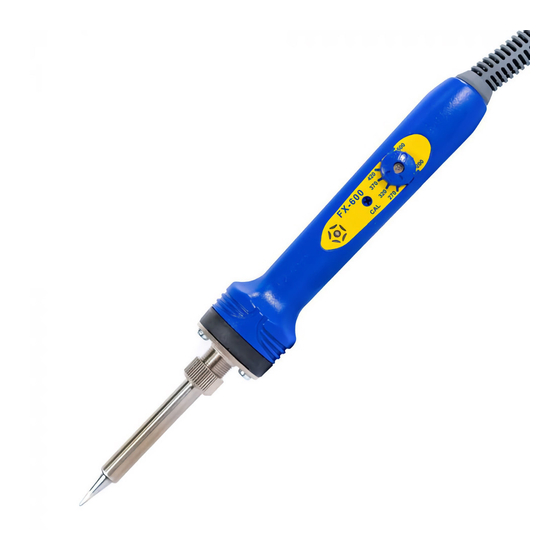

HAKKO FX-601 soldering iron ..............1
Lock key ...............................................1
*Refer to "5. TEMPERATURE SETTING" when using the lock key.
2. SPECIFICATIONS
Power Consumption
100V-47W/110V-56W/
120V-67W/220V-42W/
230V-46W/240V-50W
Temperature Range
240 - 540℃
Temperature Stability
±1 ℃
at idle temperature
Specifications and appearance are subject to change without notice.
3. WARNINGS, CAUTIONS, NOTES AND EXAMPLES
When power is ON, tip temperatures will be between 240℃ and 540℃. (460℉ to 1000℉)
To avoid injury or damage to personnel and items in the work area, observe the following:
●This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in safe way
and understand the hazards involved.Children
shall not play with the appliance.
Cleaning and user maintenance shall not be
made by children without supervision.
●Place the handpiece on the iron holder
when it is not in use.
●If the power cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified person in order to
avoid personal injury or damage to the unit.
● Do not touch the tip or the metal parts near the tip.
● Do not allow the tip to come close to, or touch, flammable materials.
● Inform others in the area that the unit is hot and should not be touched.
● Turn the power off when not in use, or left unattended.
● Turn the power off when changing parts or storing the HAKKO FX-601.
1
Beaded cable tie....................................1
Instruction manual ................................1
Tip to Ground
< 2 Ω
Resistance
Tip to Ground Potential
< 2 mV
Heating Element
Ceramic
Total Length (w/o cord)
Weight (w/o cord)
WARNING
● To prevent accidents or damage to the HAKKO FX-601, be sure to observe the following:
● Do not use the unit for applications other than those specifically described in the
instruction manual.
● Do not strike the iron against hard objects to remove excess solder. This will
damage the iron.
● Do not modify the HAKKO FX-601.
● Use only genuine Hakko replacement parts.
● Do not allow the HAKKO FX-601 to become wet, or use it with wet hands.
● Hold the power plug when plugging it in and unplugging it.
● Be sure the work area is well ventilated. Soldering produces smoke.
● The unit is for a counter or workbench use only.
● Do not perform any other actions that may be considered dangerous.
4. OPERATION
■ Procedure
1) Turn the temperature knob to set the temperature.
2) When the power plug is plugged in, the LED lamp will light.
* While the LED lamp is lit (temperature is increasing), it is recommended to use
an iron holder.
3) When the iron temperature reaches the set temperature, the LED lamp will
change from lit to blinking.
5. TEMPERATURE SETTING
■ How to use the temperature knob
Hold the grip firmly and align the arrow mark of the temperature knob with the
desired temperature setting.
Since you can feel a click at each temperature, it is
easy to set the temperature.
* Temperature is also controlled in positions
between clicks.
■ How to use the lock key
This product is shipped with the temperature knob attached.
After the temperature knob is removed, the set temperature cannot be easily
changed unless the lock key is used.
Removing the temperature knob.
1) Turn the temperature knob in a counterclockwise direction and set the
temperature to minimum value (240℃).
2) Remove the screw in the center of the temperature
knob with a crosspoint screwdriver to remove
the temperature knob.
Set the temperature by lock key
1) Hold the grip firmly and insert
the lock key into the keyhole.
2) Turn the key while pressing it
in firmly.
Insert
the lock key fully.
CAUTION
Arrow mark
