Maintenance

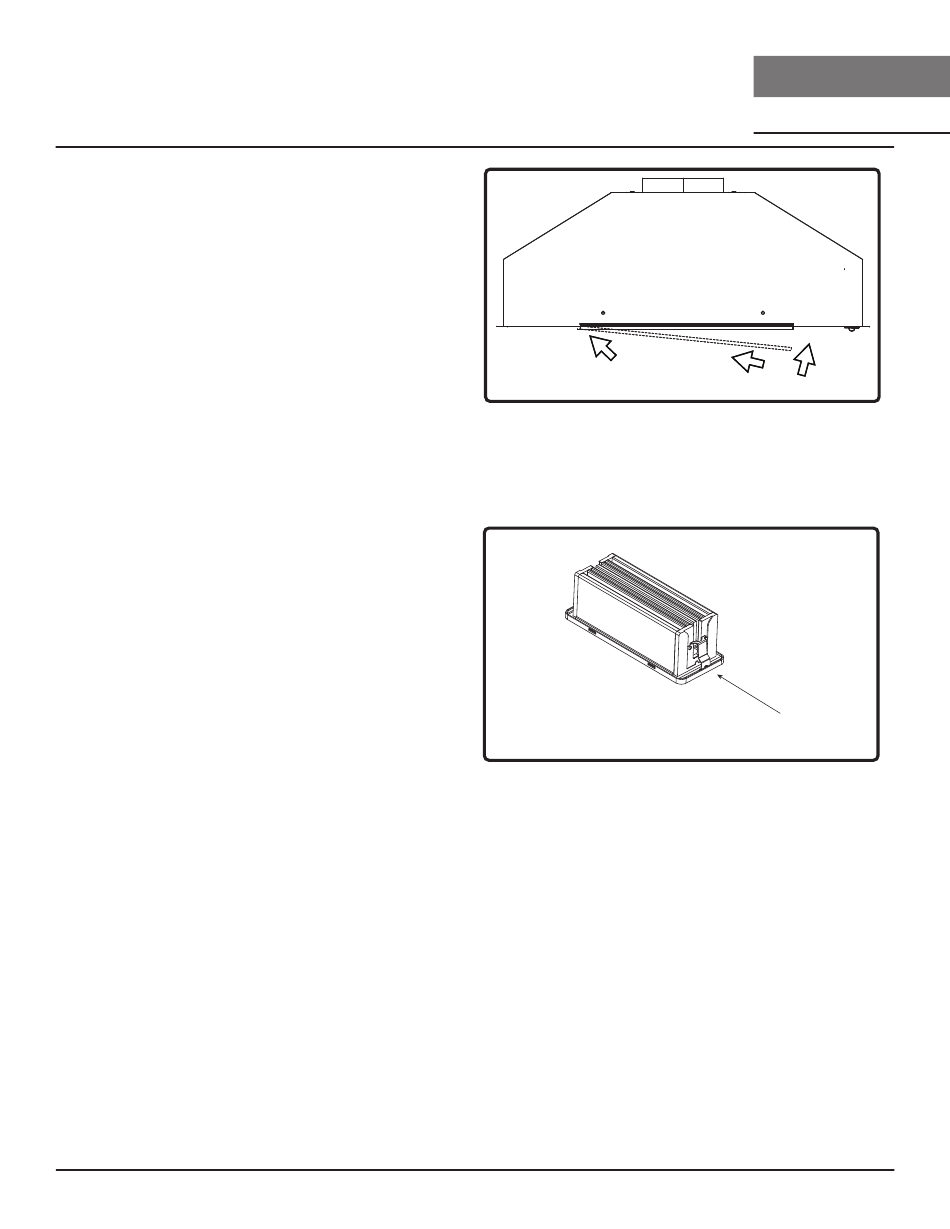

Installing the Filter (FIG. G):
1. Place bottom of filter into channel on hood.
2. Push filter handle in.
3. Pivot filter up and lock into place.

LumiLight LED

In the unlikely event that your LumiLight LED fails,
please contact Zephyr to order replacement parts.
See the list of parts and accessories page for part
numbers and contact information.
LED Removal (FIG. H):
1. Remove filter.
2. Remove (4) screws from inner brackets of face
place.
3. Disconnect LED light quick connector.
4. Push in the two side clips on the ends of the
LED light.
5. Push LED light through the light panel opening.
18
1
FIG. G
FIG. H
Vortex Use, Care, and Installation Guide
C O R E
V O R T E X
I N S E R T
2
3
Push the clip
