Dorma ED900 Quick Start Manual

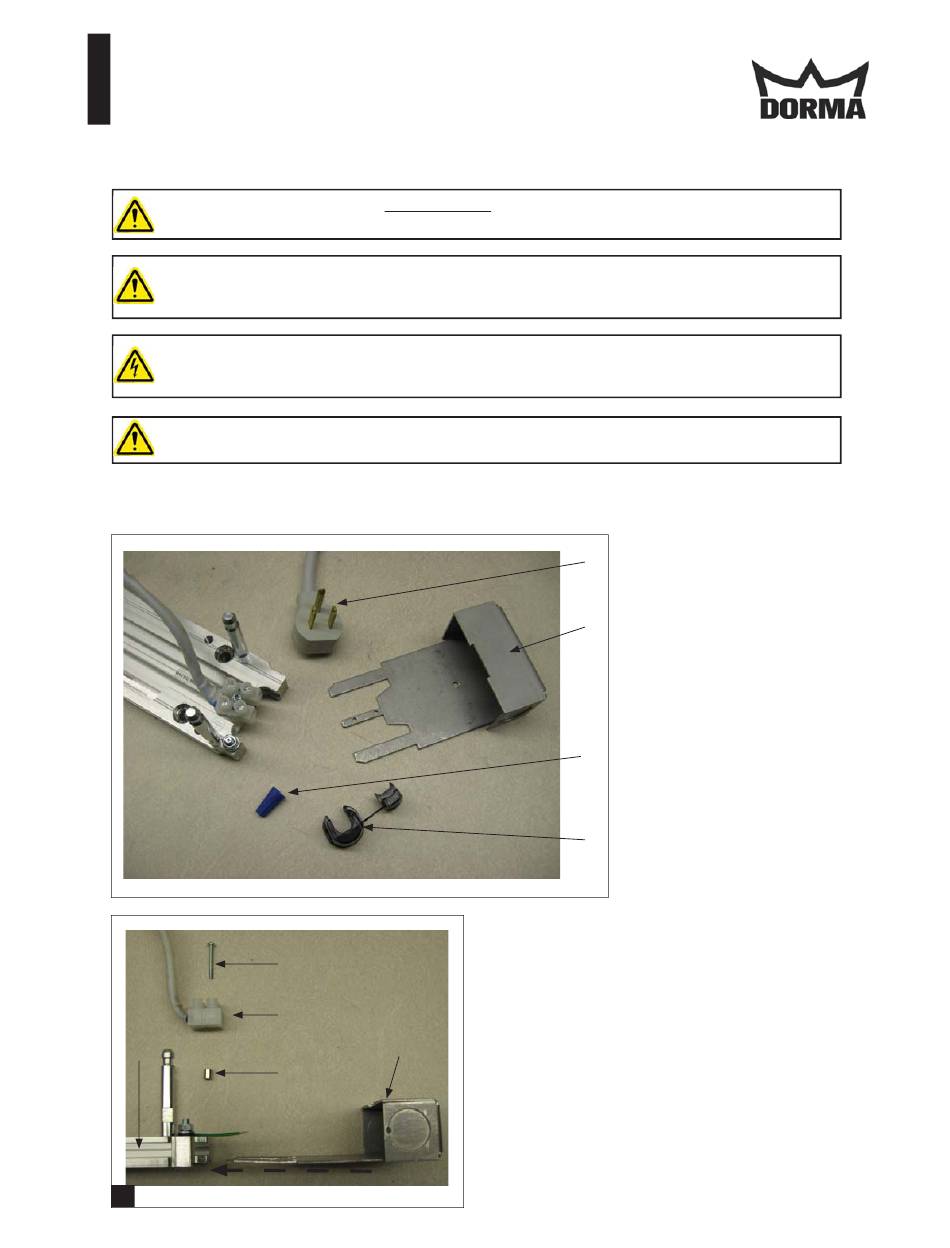

ED900 POWER CORD INSTALLATION
—
Installing the power cord
ATTENTION! Connect the power cord to 120V 60 Hz ONLY.
WARNING! Power cords pose a rise of becoming entrapping in moving parts of the operator, door or system.
The flexible power cord should not be routed through doorways, window openings, walls, ceilings, floors, or the like. The
cord should also not be attached or secured to the building structure. The cord cannot be concealed behind walls and the
like. Make sure the power cord does not become entrapped in any moving parts of the operator, door, or system.
To reduce the risk of electric shock, this equipment has a grounding type plug, that has a third (grounding) pin. This plug
will only fit into a grounding type outlet. IF the plug does not fit into the outlet, contact a qualified electrician to install
the proper outlet. Do not change the plug in any way.
For in-wall mounting: When installing the socket, please remember that the socket should be reached by hand.
(maximum 14" away)
Mounting
plate
1
DORMA AMERICAS, Inc. Dorma Drive, Drawer AC
1
08122560 08/14
Screw
Terminal block
Conduit box
Bushing
Toll-Free: 800-523-8483
Reamstown, PA 17567 Fax:
1
2
1. 110V power cord
2. Conduit box
3. Cord grip
4. Wire nut
4
3
1.1 Disassemble the conduit box assembly, by removing
the pan head screw from the terminal block using a #1
phillips screw driver.
1.2 Slide the conduit box underneath the mounting plate.
1.3 Insert the pan head screw into the terminal block,
bushing and conduit box by using a #1 phillips screw
driver (5in-lbs).
E-mail: dormaarchitectural@dorma.com
800-274-9724 Subject to change without notice
