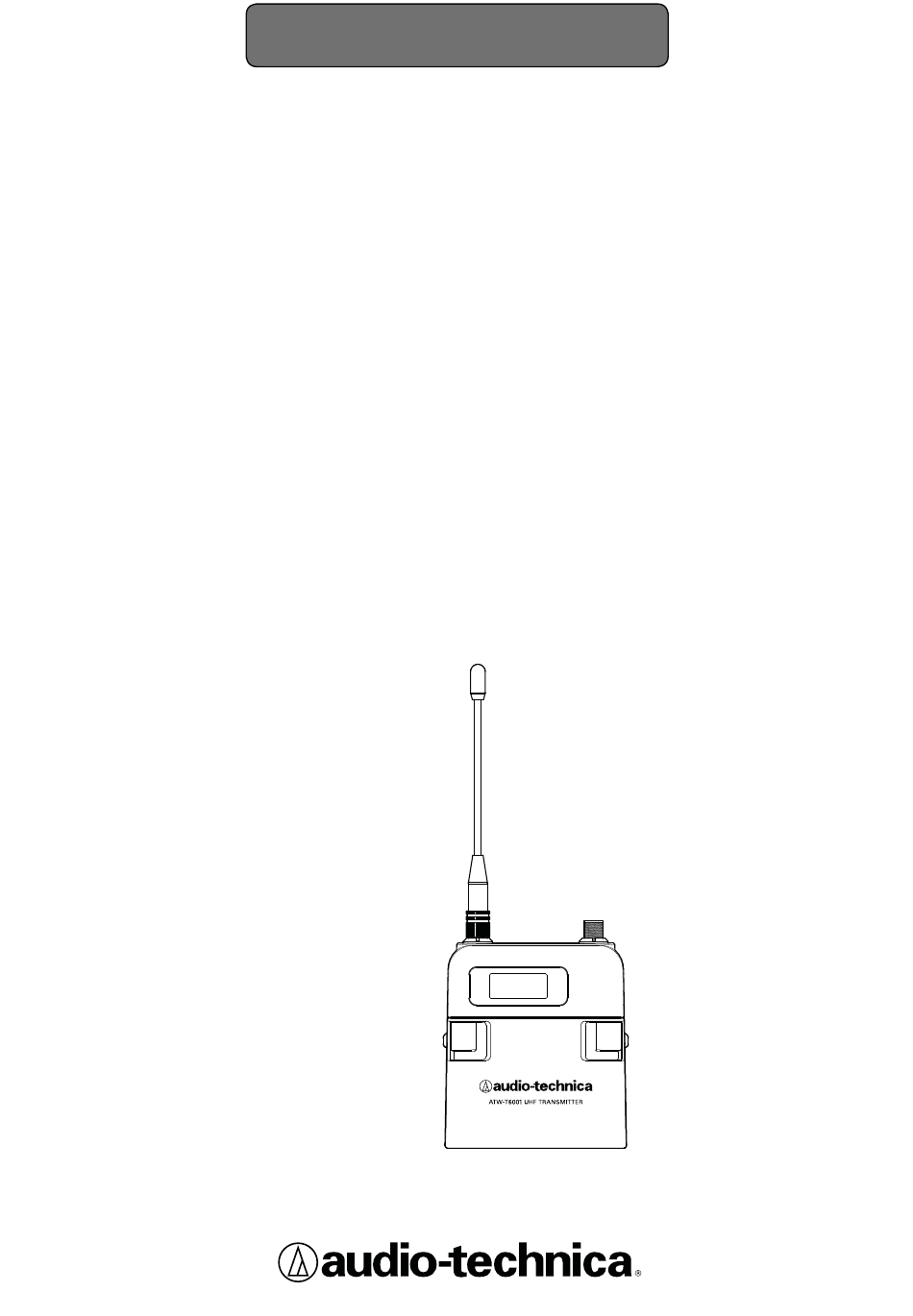

User Manual
UHF SYNTHESIZED WIRELESS
TRANSMITTER
ATW-T6001 S
Thank you for purchasing the product.
Before using the product, take time to read this user manual
thoroughly and use the product correctly. Keep this user
manual handy together with the warranty so that it is always
available for reference.
Advertisement
Table of Contents
Related Manuals for Audio Technica ATW-T6001 S
Summary of Contents for Audio Technica ATW-T6001 S
- Page 1 User Manual UHF SYNTHESIZED WIRELESS TRANSMITTER ATW-T6001 S Thank you for purchasing the product. Before using the product, take time to read this user manual thoroughly and use the product correctly. Keep this user manual handy together with the warranty so that it is always...
-
Page 2: Table Of Contents
Contents Features ・・・・・・・・・・・・・・・・・・・・・・ 2 Important information ・・・・・・・・・・・・・・ 3 Notes on use ・・・・・・・・・・・・・・・・・・・ 4 When using multiple wireless systems ・・・・・ 4 Part names and functions ・・・・・・・・・・・・ 5 How to insert batteries ・・・・・・・・・・・・・・ 6 About display ・・・・・・・・・・・・・・・・・・・ 7 About settings ・・・・・・・・・・・・・・・・・・・... -
Page 3: Important Information
Important information Warning: To prevent fire or shock hazard, do not expose this apparatus to rain or moisture. Caution: Do not expose this apparatus to drips or splashes. To avoid electric shock, do not open the cabinet. Refer servicing to qualified personnel only. Do not expose this apparatus to excessive heat such as sunshine, fire or the like. -
Page 4: Notes On Use
Notes on use ● Be sure to read the operation manual for the connected device before use. ● If you use the product close to an electronic device or communications device (such as mobile phone), noise may be caused in the product. If this happens, keep it away from such devices. -
Page 5: Part Names And Functions
This is the receiving part for Lights in green when the IR link. power is on. Lights in red when battery power is low. Rear ATW-T6001 S FREQ.: 946-950 MHz FCC ID: JFZT6001S BATT.: LR6, AA×2, 3 V Audio-Technica Corp. MADE IN JAPAN... -
Page 6: How To Insert Batteries
How to insert batteries Slide the battery cover nob toward the inside. From that position, slide the nob in the direction shown by the arrow Then, open the battery cover as shown in the diagram. Insert the batteries correctly according to the plus (+) and minus (-) marks indicated on the product. -
Page 7: About Display
About display The main screen is displayed when the power is switched on. 946. 125MHz ① ② ④ ③ ① Frequency/NAME Press UP/DOWN to switch screens. * Only frequency displays as the default setting. ② Battery power indicator Shows how much battery power is remaining. ... -
Page 8: About Settings
About settings ■ Menu screen Press the SET ( ) button on the lever push switch for menu screen mode. Moving the UP ( ) / DOWN ( ) button takes you to the screens for the details to set in the order shown below. * If there is no button operation within 10 seconds, the display will return to the main screen. -
Page 9: Transmission Frequency Setting
■ Transmission frequency setting From the menu screen, use the UP/ FREQUENCY DOWN button to select “FREQUENCY”, 945. 000MHz and then press the SET button. A line is displayed under the first three FREQUENCY digits. 945. 000MHz FREQUENCY Use the UP/DOWN button to select the frequency. -
Page 10: To Correct Characters
■ To correct characters To correct a character after it has been entered, select "BS" with the UP/ DOWN button. When the SET button is pressed, the last entered character is deleted and the cursor will move one position to the left. NAME v o c a ■... -
Page 11: Lock Code Setting
■ Lock code setting The lock code is a 4-digit code (from 0000 to 9999) for unlocking the keys. If the key lock function is activated, the lock code will be required to enter the menu screen from the main screen. From the menu screen, use the UP/ LOCK CODE DOWN button to select “LOCK CODE”... -
Page 12: Using The Key Lock Function
Using the key lock function The key lock function prevents entry into the menu screen to avoid any unwanted changes to the product's settings. When the key lock function is set at "Lock", the entry of a lock code will be required in order to proceed to the menu screen. ■... -
Page 13: How To Attach To Body
Pull both sides of the clip firmly to the outside to remove the clip from the product. ATW-T6001 S FREQ.: 946-950 MHz FCC ID: JFZT6001S BATT.: LR6, AA×2, 3 V Audio-Technica Corp.
