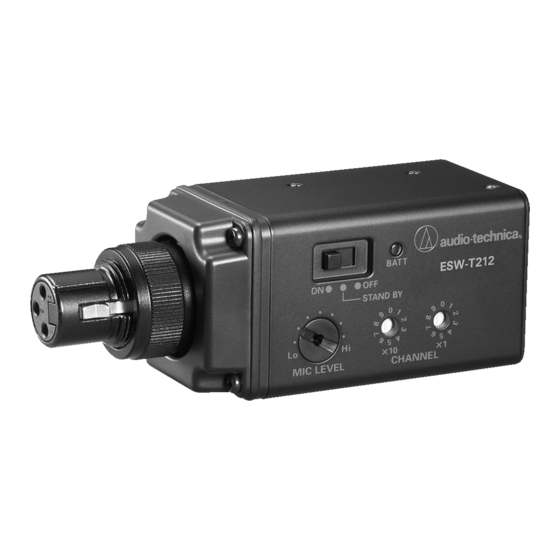

ESW-T212 UHF Plug-on Transmitter
Installation and Operation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESW-T212 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Audio Technica ESW-T212

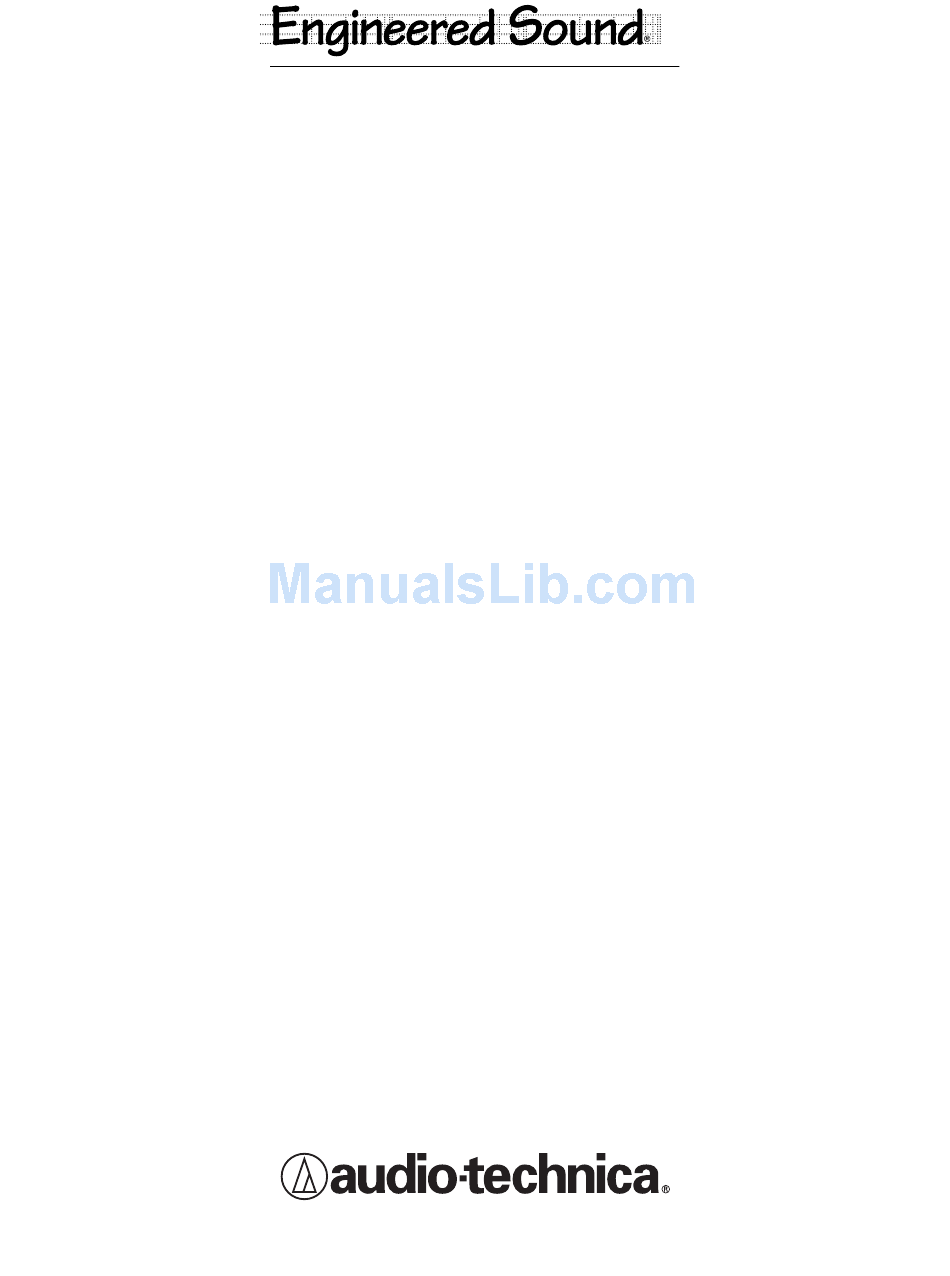

  • Page 1 ESW-T212 UHF Plug-on Transmitter Installation and Operation...
  • Page 2: Transmitter Setup

    Always loosen the threaded collar fully before attempting to disconnect the mic. Fig. B The ESW-T212 provides a bias voltage of +5V on Pins 2 and 3 which will power some “battery/phantom” mics designed to work at this low voltage. However, the ESW-T212 will not power a “phantom powered”...
  • Page 3: System Operation

    (units). Always turn the transmitter off when changing frequencies. MICROPHONE LEVEL CONTROL: This control permits the ESW-T212 to accommodate a wide range of mics with typical sensitivity ratings of 1.5 mV (-56 dB) to 15 mV (-36 dB) at 1 Pascal/94 dB SPL, while providing excellent signal-to-noise ratios and maximum acoustic- input levels.
  • Page 4 Engineered Sound Frequency and Channel Designator List Designator Frequency (MHz) 728.125 728.250 728.375 728.500 728.625 728.750 728.875 729.000 729.125 729.250 729.375 729.500 729.625 729.750 729.875 730.000 730.125 730.250 730.375 730.500 730.625 730.750 730.875 731.000 731.125 731.250 731.375 731.500 731.625 731.750 731.875 732.000 732.125...
  • Page 5 For future reference, please record your system information here (the serial number appears inside the battery compartment): Transmitter ESW-T212 Serial Number One-Year Limited Warranty Audio-Technica professional wireless systems purchased in the U.S.A. are warranted for one year from date of purchase by Audio-Technica U.S., Inc.
