We advise you to read this manual carefully, which contains all the instructions for maintaining the
appliance's aesthetic and functional qualities. For further information on the product: www.smeg.com
PRECAUTIONS
General safety instructions
Risk of personal injury
• During use the appliance and
its accessible parts become
very hot. Keep children well
away from the appliance.
• Protect your hands by wearing
oven gloves when moving food
inside the oven.
• Never try to put out a fire or
flames with water: Turn off the
appliance and smother the
flames with a fire blanket or
other appropriate cover.
• This appliance may only be
914779640/A
35
35
39
40
40
40
40
40
40
40
41
41
41
42
42
43
43
44
44
44
45
used by children aged 8 years
and over, and by people of
reduced physical, sensory or
mental capacity, or lacking in
experience in the use of
electrical appliances, provided
that they are supervised or
have been given instructions on
the safe use of the appliance
and of the hazards associated
with it.
• Children must not play with the
appliance.
• Keep children under the age of
eight at a safe distance unless
46
47
49
50
51
51
51
51
51
52
52
53
54
55
55
56
56
59
60
61
63
63
PRECAUTIONS - 35
Advertisement
Table of Contents
Related Manuals for Smeg SY93-1
Summary of Contents for Smeg SY93-1
-
Page 1: Table Of Contents
Using the storage compartment (where present) 46 Instructions for the installer We advise you to read this manual carefully, which contains all the instructions for maintaining the appliance’s aesthetic and functional qualities. For further information on the product: www.smeg.com PRECAUTIONS General safety instructions... - Page 2 they are constantly supervised. lid or a blanket. • Keep children under the age of • The appliance becomes very 8 away from the appliance hot during use. Take care never when it is in use. to touch the heating elements •...
- Page 3 AVAILABLE) OR NEAR THE damaged, contact technical APPLIANCE. support immediately to arrange • DO NOT USE AEROSOLS IN for it to be replaced in order to THE VICINITY OF THIS avoid possible hazards. APPLIANCE WHILST IT IS IN • WARNING: A gas cooking USE.
- Page 4 into the side guides. The • Do not use the open door to mechanical safety locks that rest pans or trays on the internal prevent them from being glass pane. removed must face downwards • Cooking vessels or griddle and towards the back of the plates should be placed inside oven.
-
Page 5: Installation
• Take care that no objects are personnel. stuck in the doors. • Installation using a hose must • Do not use the handle to lift or be carried out so that the length move the appliance. of the hose does not exceed 2 metres when fully extended for Installation steel hoses and 1.5 metres for... -
Page 6: Appliance Purpose
to a maximum altitude of 2,000 serial number and brand name of the appliance. Do not remove the identification metres above sea level. plate for any reason. For this appliance Disposal This appliance conforms to the WEEE • The swing doors are not held in European directive (2012/19/EU) and place when open and may must be disposed of separately from... -
Page 7: How To Read The User Manual
the oven. minimum to avoid heat dispersal. • When cooking several types of food it is • Keep the inside of the oven clean at all recommended to cook the foods one after times. the other to make the best use of the already How to read the user manual hot oven. -

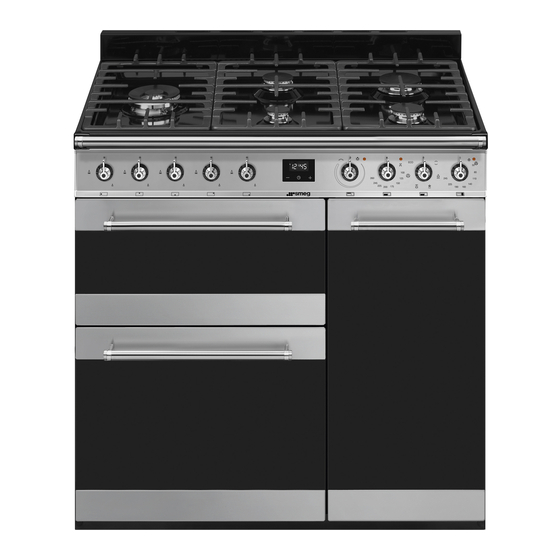

Page 8: Hob
AUX = Auxiliary Burner R = Rapid Burner SR = Semi-rapid Burner UR2 = Ultra Rapid Burner Control panel 1 Hob burner knobs 4 Auxiliary oven variable grill indicator light For lighting and adjusting the hob burners. Press The indicator light comes on to indicate that the auxiliary oven is heating up. -
Page 9: Other Parts
required function, set the cooking temperature can be requested to Authorised Assistance using the temperature knob. Centres. Use only original accessories supplied by the manufacturer. 8 Vertical oven function/temperature knob Trivet It turns on the light inside the oven cavity or starts the circulaire heating elements to a temperature ranging from a minimum of 50°C to a maximum of 245°C. -
Page 10: Use
Rack during cooking. Plate rack Useful for supporting containers with food during cooking. Vertical oven rack Used for warming plates. Useful for supporting containers with food Preliminary operations Using the accessories Racks and trays See General safety instructions. Racks and trays have to be inserted into the side guides until they come to a complete stop. -
Page 11: Using The Hob
Using the hob the food which is being cooked. All the appliance’s control and monitoring devices are located together on the front panel. The burner controlled by each knob is shown next to the knob. The appliance is equipped with an electronic ignition device. Simply press the knob and turn it anti-clockwise to the maximum flame symbol, until the burner ignites. -
Page 12: Using The Storage Compartment (Where Present)
2. Select the temperature using the over. temperature knob. Burner Pan diameter Make sure that the digital programmer 12 - 14 cm shows the cooking duration symbol 16 - 24 cm , otherwise it will not be possible to 18 - 26 cm turn on the oven. -
Page 13: Digital Programmer
1. Hold down the clock key for two This function is particularly suitable for seconds. The dot between the hours and the cooking on a single shelf with low minutes flashes. energy consumption. 2. The time can be set via the increase key It is recommended for all types of food except those that may produce a large and decrease key... - Page 14 12. Press the keys at the same time To cancel the set programming press and hold down the increase to reset the set program. the decrease keys at the same time It is not possible to set a cooking time of and then turn the oven off manually.
-
Page 15: Cooking Advice
the dough. 2. Hold down the increase and decrease • To check whether the dessert is cooked right keys at the same time. through: At the end of the cooking time, put 3. Then switch off the oven manually if cooking a toothpick into the highest point of the is in progress. -
Page 16: Cooking Information Table (Multifunction Oven)
Cooking information table (multifunction oven) Weight Temp. Time Food Function Shelf (Kg) (°C) (minutes) Lasagne 3 - 4 STATIC 220 - 230 45 - 50 Pasta bake 3 - 4 STATIC 220 - 230 45 - 50 Veal roast CIRCULAIRE 180 - 190 90 - 100 Pork loin... -
Page 17: Cooking Information Table (Auxiliary Oven)
Cooking information table (auxiliary oven) Weight Temp. Time Food Function Shelf (Kg) (°C) (minutes) Sausages GRILL 13 - 15 surface 2 surface Pork chops GRILL Spare ribs GRILL Bacon GRILL Pork fillet GRILL Beef fillet GRILL The times indicated in the table do not include preheating times and are provided only as a guide. Cooking information table (vertical oven) Weight Temp. -
Page 18: Knobs
lukewarm water and non-abrasive detergent. Cleaning the door Make sure to remove any encrustations. Dry Cleaning the door glazing them thoroughly and return them to the hob. The glass in the door should always be kept The continuous contact between the thoroughly clean. -
Page 19: Cleaning The Oven Cavity
Removing the internal glass panes Auxiliary oven door 1. Remove the internal glass panel by pulling For easier cleaning the internal glass panes of the rear part gently upwards, following the the door can be removed. movement indicated by the arrows (1). Use kitchen paper to clean. -
Page 20: Cleaning The Roof Of The Oven (Only For Some Models/Cavities)
Avoid letting food residue dry inside the oven side housings. cavity, as this could damage the enamel. Take out all removable parts before cleaning. For easier cleaning, it is recommended to remove: • the door • The rack/tray support frames •... -
Page 21: Vapor Clean (On Some Models Only)
2. Gently lower the heating element until it Vapor Clean cycle setting stops. 1. Turn the functions knob to symbol (where present). 2. Turn the temperature knob to the symbol. 3. Allow the cleaning cycle to run for 18 minutes. Vapor Clean End 1. -
Page 22: Installation
2. Remove the rack/tray support frames. Do not touch the halogen light bulb 3. Use a tool (e.g. a spoon) to remove the bulb directly with your fingers, use an cover. insulating material. 5. Replace the light bulb with one of the same type (40 W). - Page 23 has no kinks or twists comply with the applicable standard. • The hose is not in contact with sharp objects or sharp corners • If the hose is not perfectly airtight and leaks gas, do not try to repair it; replace it with a new hose •...
- Page 24 comply with the applicable standard. Extraction of the combustion products The combustion products may be extracted by means of hoods connected to a natural draught chimney whose efficiency is certain or via forced extraction. An efficient extraction system requires precision planning by a specialist qualified in this area and must comply with the positions and clearances indicated by the applicable standards.
-
Page 25: Gas Types And Countries
Replacing nozzles Light the burner and turn it to the minimum position. Extract the gas cock knob and turn the adjustment screw next to the gas cock spindle (depending on the model) until the correct minimum flame is achieved. Refit the knob and verify that the burner flame is stable. -
Page 26: Burner And Nozzle Characteristics Tables
Gas types 5 Natural Gas G25 20 mbar • 6 Natural Gas G2.350 13 mbar G2.350 • 7 LPG G30/31 G30/31 28-30/37 mbar • • • • • • G30/31 30/30 mbar • • • • 8 LPG G30/31 G30/31 37 mbar •... -
Page 27: Positioning
7 LPG G30/31 - 30/37 mbar Rated heating capacity (kW) Nozzle diameter (1/100 mm) Pre-chamber (printed on nozzle) Reduced flow rate (W) 1300 Rated flow rate G30 (g/h) Rated flow rate G31 (g/h) 8 LPG G30/31 - 37 mbar Rated heating capacity (kW) Nozzle diameter (1/100 mm) Pre-chamber (printed on nozzle) Reduced flow rate (W) - Page 28 Appliance overall dimensions Levelling the appliance The appliance must be level on the floor in order to ensure greater stability: • Screw or unscrew the feet at the bottom until the appliance is stable and level on the floor. Assembling the upstand 900 mm 600 mm min.
-
Page 29: Electrical Connection
Mounting the plinth 220-240 V 2~ 3 x 6 mm ² three-core cable 220-240 V 3~ 4 x 4 mm ² four-core cable 380-415 V 3N~ 5 x 1.5 mm ² five-core cable The values indicated refer to the cross- section of the internal conductor. - Page 30 burners together. • If the appliance does not work correctly after having carried out all the checks, contact your local Authorised Service Centre. • Once the appliance has been installed, please explain to the user how to use it correctly. 64 - INSTALLATION 914779640/A...
