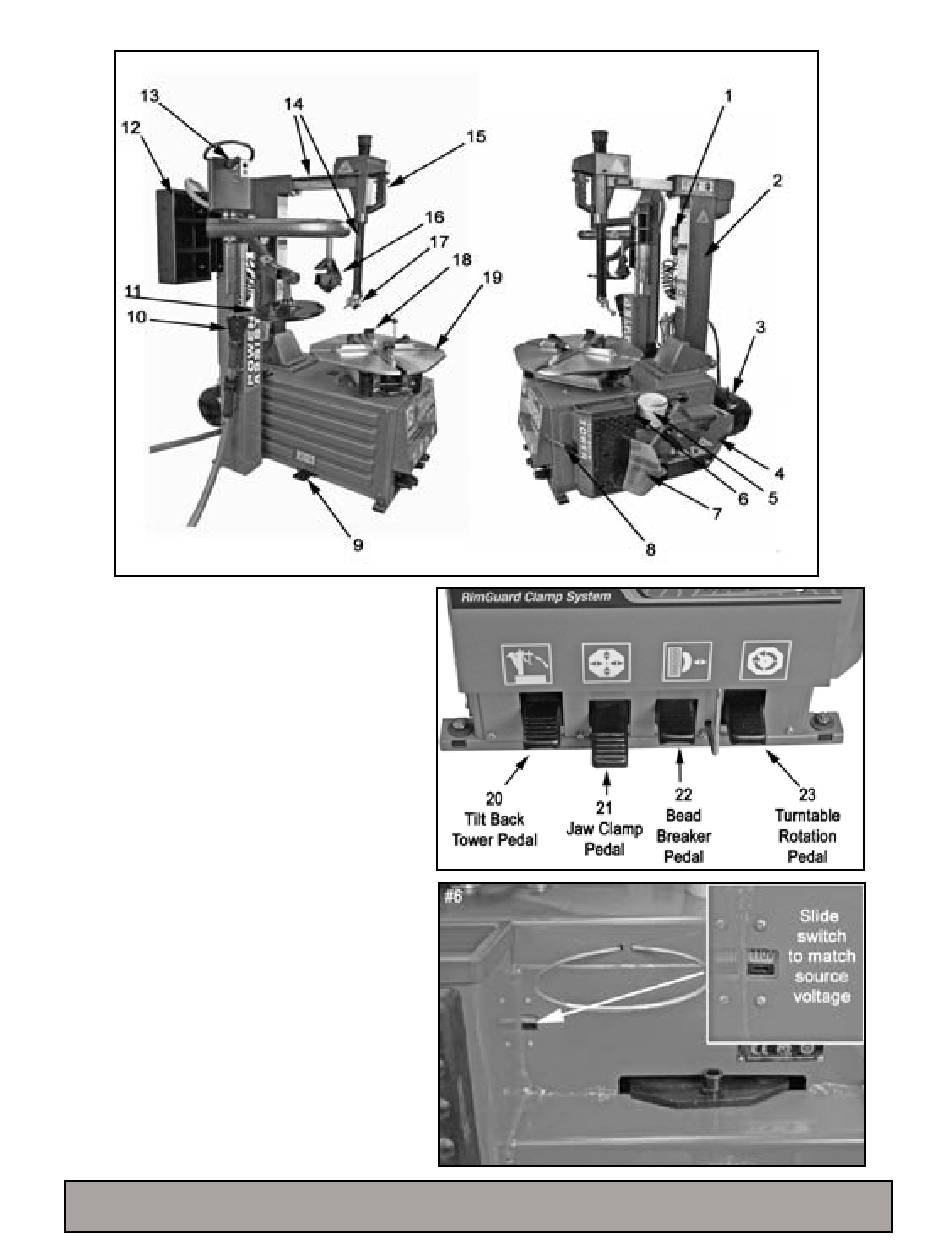

Section 4: Description Of Parts - Ranger Products R23LT Installation And Operation Manual

1 Air Inflation Gauge
2 Tower
3 Turbo Blast Tank
4 Bead Breaker Arm
5 Lube Bucket Dispenser
6 Voltage Selector Switch
7 Bead Breaker Shoe
8 Tire Iron
9 Inflation Pedal
10 Turbo Blast Nozzle
11 Helper Disc
12 Tool / Storage Tray
13 Assist Arm Control Pod
14 Horizontal / Vertical Slides
15 Slide Adjustment Handle
16 Left Helper/Restraint Head
17 Combination Mount Demount Head
18 Table Top Clamps
19 Turntable
20 Tilt Back Tower Pedal
21 Jaw Clamp Pedal
22 Bead Breaker Pedal
23 Turntable Rotation Pedal
Note: The parts and procedures shown in this manual include optional equipment
that may not be included on the model of Tire Changer you are using.
SECTION 4
7
