Exmark ULTRACAV LZUV2B Operator's Manual page 17

propane completing kit for weight installation
instructions.
Note: The removable weights are heavy. Use
care when lifting them. make sure that you can
hold them securely before lifting them. Use
caution when positioning your hands to that you
Do Not set them down on your hands or fingers.
Gasoline Unit Shown
1. Toe board weight
2. Hairpin
30. For 3-Bagger Units Only:
A. Install the removable caster weights on the
caster arms (see Figure 20).
B. Insert the clevis pin through the bracket hole
and fasten with a hairpin.
C. Tighten knob on weight assembly until the
weight is clamped securely to the caster arm.

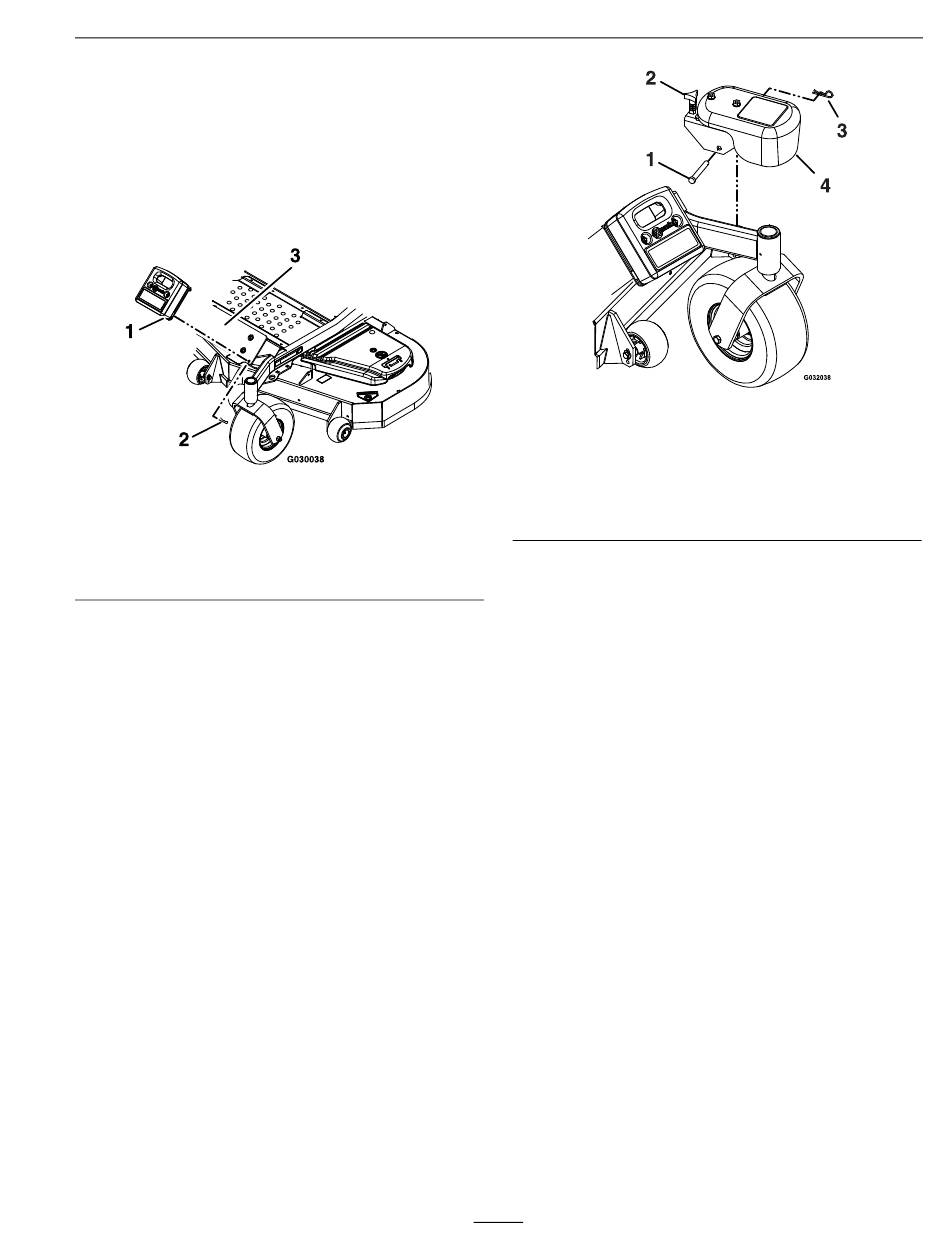

Figure 19
3. Weight mounting plate
For 3-Bagger Units Only
g030038
1. Clevis pin
2. Knob
17
Operation
Figure 20
Gasoline Unit Shown
3. Hairpin
4. Caster weight
g032038
