of the top spindle sheave. The belt should be
routed as shown in Figure 13.

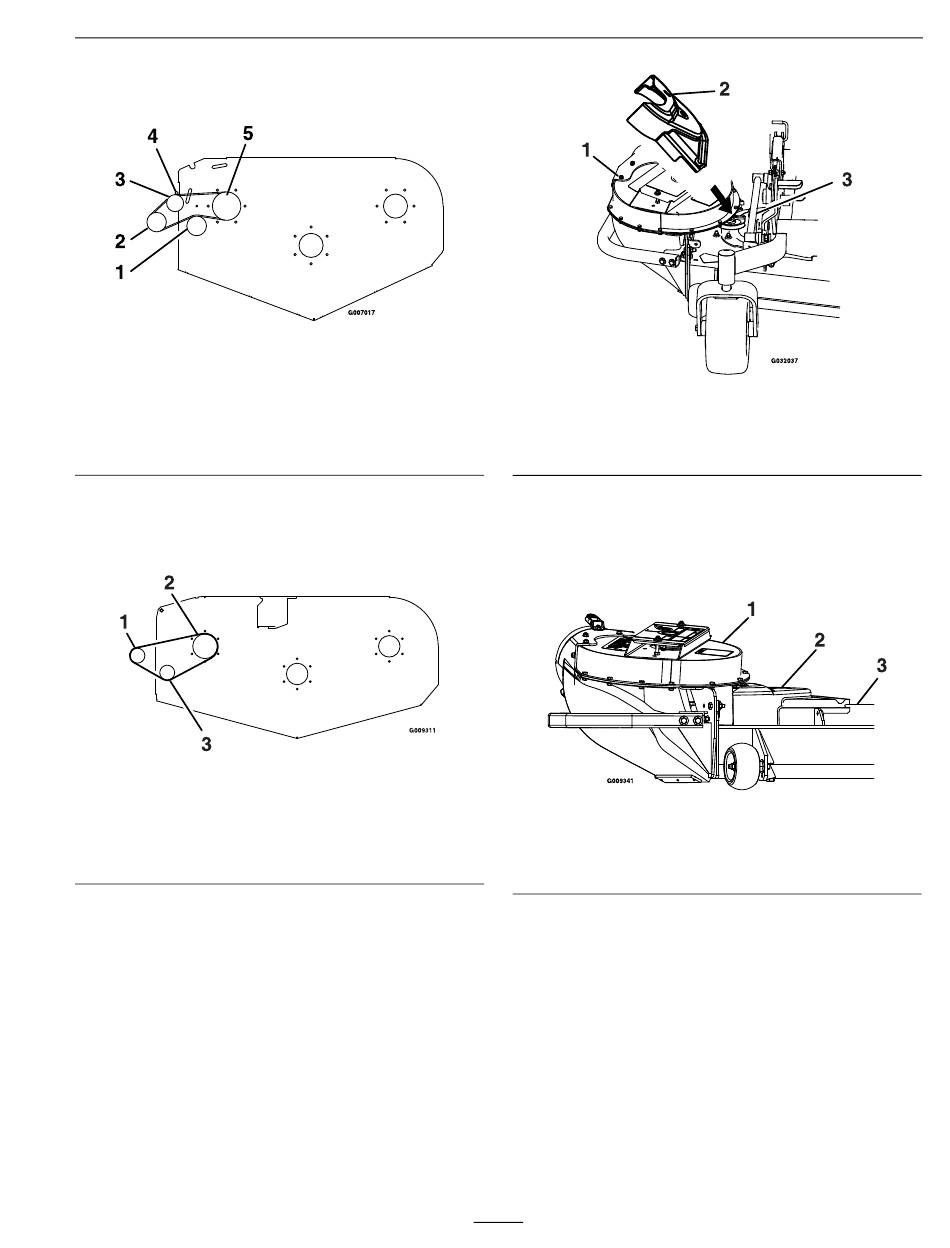

Small Decks — View from Top of Blower
1. Spring loaded idler
2. Impeller sheave
3. Fixed idler
For Large Decks:
Pull the spring loaded idler back and slip the belt
over the top deck sheave.
Large Decks — View from Top of Blower
1. Impeller sheave
2. Deck sheave
17. Position the belt cover at an angle and slide it
under the mower frame (see Figure 15).
Figure 13
4. Belt guide
5. Deck sheave
Figure 14
3. Spring loaded idler
g007017
1. Blower
2. Belt cover
18. Push down on the back of the cover and slide it
backwards under the blower.
19. Slide the belt cover forward until it is seated under
both lips on the deck.
g009311
1. Blower
2. Belt cover
20. Install the knob and its hardware.
21. Slip the upper and the lower tubes together.
22. Insert the upper tube into the hopper seal –
push in then pull out so that the seal is extended
outward.
23. Align the dimple on the upper tube with the end
of hopper seal and center between the two screws
as shown in Figure 17.
15
Operation
Figure 15
3. Mower frame
Figure 16
3. Deck lip
g032037
g009341
