SERVICE MANUAL
For Parts Or Technical Assistance
USA (800) 445-3720 Canada (800) 267-2337
International: Contact your distributor.
RESIDENT®
Low Bed
From Hill-Rom
Product No. P872
man259

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RESIDENT P872 and is the answer not in the manual?

Questions and answers

Related Manuals for Hill-Rom RESIDENT P872

Summary of Contents for Hill-Rom RESIDENT P872

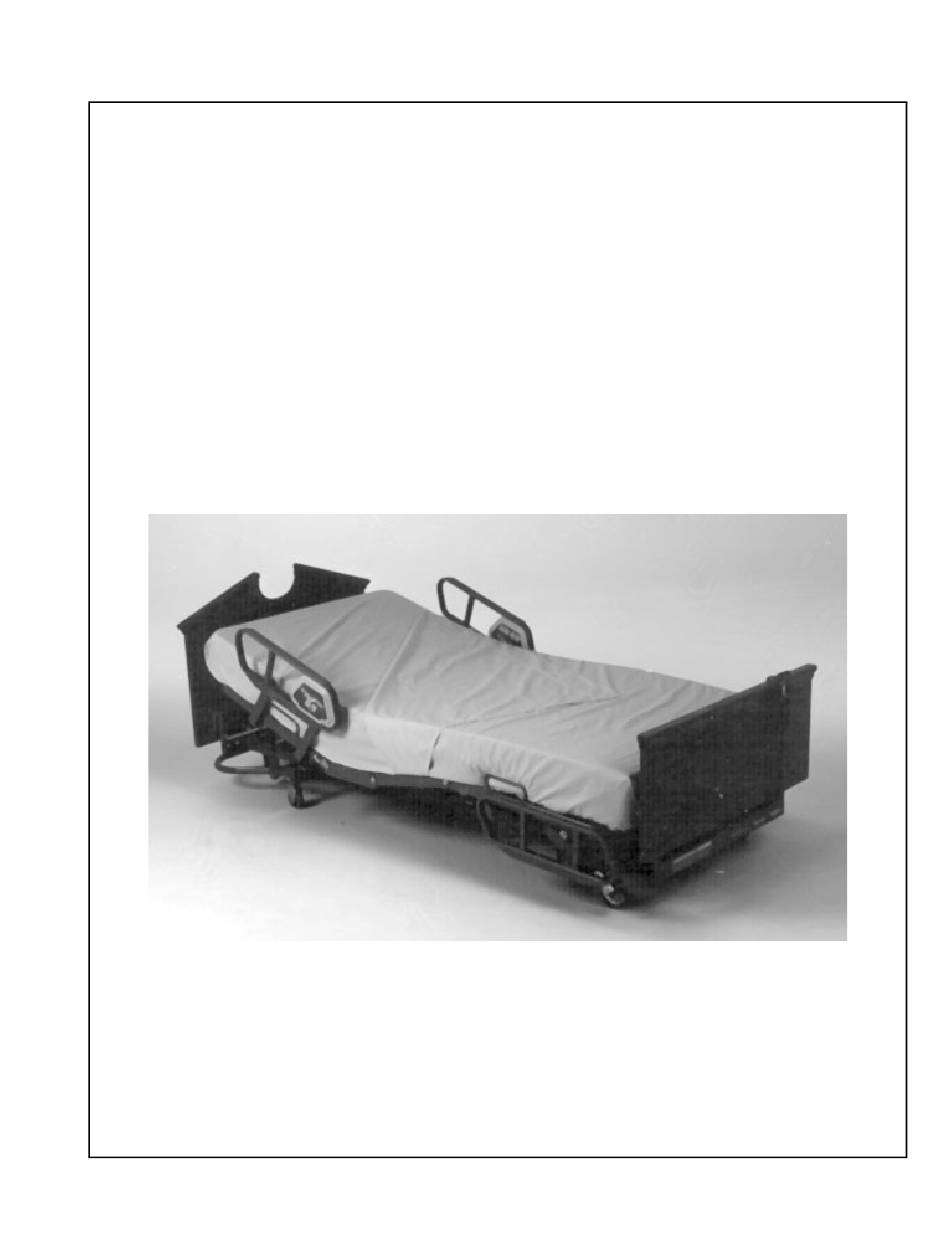

  • Page 1 SERVICE MANUAL RESIDENT® Low Bed From Hill-Rom Product No. P872 For Parts Or Technical Assistance man259 USA (800) 445-3720 Canada (800) 267-2337 International: Contact your distributor.
  • Page 3 RESIDENT® Low Bed Service Manual Revisions Revision Letter Pages Affected Date Original Issue April, 2000 man259 RESIDENT® Low Bed Service Manual (man259) Page i...
  • Page 4 Torx® is a registered trademark of Textron, Inc. The information contained in this manual is subject to change without notice. Hill-Rom makes no commitment to update or keep current, the information contained in this manual. The only product warranty intended by Hill-Rom is the express, written warranty accompanying the bill of sale to the original purchaser.
  • Page 5 Revisions To order additional copies of this manual, call (800) 445-3720, and place a parts order for part number man259. RESIDENT® Low Bed Service Manual (man259) Page iii...
  • Page 6 Revisions NOTES: Page iv RESIDENT® Low Bed Service Manual (man259)

  • Page 7: Table Of Contents

    Table of Contents Chapter 1: Introduction Purpose ............1 - 3 Audience .
  • Page 8 Table of Contents Raising the Siderail ......... . 1 - 10 Lowering the Siderail .
  • Page 9 Table of Contents Hand Pendant ..........3 - 9 Siderail Controls .
  • Page 10 Table of Contents Removal ........... . . 4 - 29 Replacement .
  • Page 11 Table of Contents Chapter 6: General Procedures Cleaning and Care..........6 - 3 General Cleaning .
  • Page 12 Table of Contents NOTES: Page x RESIDENT® Low Bed Service Manual (man259)
  • Page 13 Chapter 1 Introduction Chapter Contents Purpose ............1 - 3 Audience .
  • Page 14 Chapter 1: Introduction Regulations, Standards, and Codes........1 - 9 General Operation.

  • Page 15: Chapter 1: Introduction

    Purpose Chapter 1: Introduction Purpose This manual provides requirements for the RESIDENT® Low Bed normal operation and maintenance. It also includes parts lists (in chapter 5) for ordering replacement components. Audience This manual is intended for use by only facility-authorized personnel. Failure to observe this restriction can result in severe injury to people and serious damage to equipment.

  • Page 16: Chapter 5: Parts List

    Organization Chapter 1: Introduction Chapter 5: Parts List This chapter contains the warranty, part-ordering procedure, and illustrated parts lists. Chapter 6: General Procedures Cleaning, preventive maintenance, and other general procedures are described in this chapter. Chapter 7: Accessories A list of additional products, that can be used in conjunction with the RESIDENT®...

  • Page 17: Typographical Conventions

    Typographical Conventions Chapter 1: Introduction Typographical Conventions This manual contains different typefaces and icons designed to improve readability and increase understanding of its content. Note the following examples: • Standard text—used for regular information. • Boldface text—emphasizes a word or phrase. •...

  • Page 18: Introduction

    DynamicAire™ Sleep Surface, and the PRIME•AIRE™ Therapy Surface from Hill-Rom. Sleep surfaces from Hill-Rom are designed considering various resident and equipment combinations. Therefore, when selecting a sleep surface, the caregiver should evaluate the resident’s needs, and ensure that the most appropriate surface is selected for that resident.

  • Page 19: Pendant And Lockout Controls

    Introduction Chapter 1: Introduction Pendant and Lockout Controls The pendant control clips over siderails or to bed ends, and controls the head, knee, and hilow up and down functions. The RESIDENT® Low Bed contains head, knee, and hilow lockout switches located at the foot end to control each function.

  • Page 20: Specifications

    Specifications Chapter 1: Introduction Specifications Physical Description For RESIDENT® Low Bed specifications, see table 1-1 on page 1-8. Table 1-1. Specifications Feature Dimension Width 36" to 42" (91 cm to 107 cm) Length, including 1" (3 cm) bed ends 84½" to 90 3/8" (214.6 cm to (76"...

  • Page 21: Regulations, Standards, And Codes

    Specifications Chapter 1: Introduction Regulations, Standards, and Codes The RESIDENT® Low Bed meets UL 2601-1/IEC 60601-1, CAN/CSA C22.2 No. 601.1, IEC 60601-1-2, and IEC 60601-2-38 requirements. RESIDENT® Low Bed Service Manual (man259) Page 1 - 9...

  • Page 22: General Operation

    General Operation Chapter 1: Introduction General Operation Siderails WARNING: Siderails are visual reminders for residents to locate the edge of the bed, and are not intended for use as a restraint device. Appropriate medical personnel must determine the level of restraint necessary to ensure a resident will remain safely in bed and prevent personal injury.

  • Page 23: Lowering The Siderail

    General Operation Chapter 1: Introduction 3. If the siderail (A) is at the foot end, rotate the siderail (A) toward the foot end of the bed to its fully-raised position. 4. Listen for a click to indicate that the siderail (A) is completely raised and locked in place.

  • Page 24: Raising Or Lowering The Knee Section

    Model Identification Chapter 1: Introduction Raising or Lowering the Knee Section To raise the knee section, press and hold the knee up button on the pendant or siderail control until the desired degree of incline is reached. To lower the knee section, press and hold the knee down button on the pendant or siderail control until the desired degree of incline is reached.

  • Page 25: Safety Tips

    Safety Tips Chapter 1: Introduction Safety Tips WARNING: Ensure the transfer gap between the outside of a stored siderail or assist bar and the outside surface of the mattress does not exceed 1.5" (3.8 cm). Failure to do so could result in personal injury or equipment damage.
  • Page 26 Safety Tips Chapter 1: Introduction could result in personal injury. WARNING: It is not necessary or advisable for personnel to be under the bed. If service personnel need to be under the bed, use suitable jack stands to block up the bedframe. Failure to do so could result in personal injury. CAUTION: During caster replacement, examine the caster socket for cracks or breaks.
  • Page 27 WARNING: Adhere to the Infection Control Policies and Procedures from Hill-Rom. Failure to do so could result in the spread of infection. WARNING: Follow the product manufacturer’s instructions. Failure to do so could result in personal injury or equipment damage.
  • Page 28 Safety Tips Chapter 1: Introduction CAUTION: Before attempting to turn the RESIDENT® Low Bed over, secure the head and foot sections to the mid-frame. Failure to do so could result in damage to equipment or personnel. CAUTION: Always lay the bed on a protective sheet or other non-abrasive surface. Failure to do so could result in damage to the finish.
  • Page 29 Safety Tips Chapter 1: Introduction Equipment damage could result. CAUTION: Do not use silicone-based lubricants. Equipment damage could occur. CAUTION: Do not lower the bed frame with the trapeze support installed. Equipment damage could result. RESIDENT® Low Bed Service Manual (man259) Page 1 - 17...

  • Page 30: Warning And Caution Labels

    Warning and Caution Labels Chapter 1: Introduction Warning and Caution Labels Figure 1-6. Warning and Caution Labels m259_004 Page 1 - 18 RESIDENT® Low Bed Service Manual (man259)
  • Page 31 Chapter 2 Troubleshooting Procedures Chapter Contents Getting Started ........... . 2 - 3 Initial Actions .

  • Page 32: Chapter 2: Troubleshooting Procedures

    Chapter 2: Troubleshooting Procedures NOTES: Page 2 - 2 RESIDENT® Low Bed Service Manual (man259)

  • Page 33: Getting Started

    (replacing or adjusting a part, seating a connector, etc.), perform the Function Checks. After the Function Checks to verify the repair, perform the Final Actions. If troubleshooting procedures do not isolate the problem, call Hill-Rom Technical Support at (800) 445-3720 for assistance. Initial Actions To gather information from operators concerning problems with the RESIDENT®...

  • Page 34: Function Checks

    Function Checks Chapter 2: Troubleshooting Procedures 3. The problem is a result of improper operator action. ↓ → Go to “Function Checks” on page 2-4. 4. Instruct the operator to refer to the procedures in the RESIDENT® Low Bed User Manual. To ensure proper operation of the RESIDENT® Low Bed, perform the “Function Checks”...
  • Page 35 Function Checks Chapter 2: Troubleshooting Procedures Figure 2-1. RESIDENT® Low Bed m259_047 RESIDENT® Low Bed Service Manual (man259) Page 2 - 5...
  • Page 36 Function Checks Chapter 2: Troubleshooting Procedures The RESIDENT® Low Bed offers the caster options shown in figure 2-2 on page 2-6. • Floor lock brakes (V) can be used at the head and foot ends or at the foot end only with fixed casters (R) at the head end. The floor lock brakes are always used in conjunction with swivel casters (W).
  • Page 37 Function Checks Chapter 2: Troubleshooting Procedures ® Table 2-1. RESIDENT Low Bed Brake Types Type of Brake Reference Floor lock system RAP 2.1 Central brake and steer system RAP 2.2 3. Raise the foot end siderails, and apply the brakes by pressing on the brake pedal(s).
  • Page 38 Function Checks Chapter 2: Troubleshooting Procedures WARNING: Unplug the unit from its power source. Inadvertent movement during inspection or service could result in personal injury. a. Unplug the unit from its power source. b. Release all caster brakes, and move the unit to a convenient location that allows access to all sides of the bed.
  • Page 39 Function Checks Chapter 2: Troubleshooting Procedures NOTE: Ensure that all lockout switches at the foot of the bed are in the unlocked position (buttons are out). 10. Press each hand pendant button to briefly operate each function: hilow, head, and knee. Each function operates as expected in response to the button pressed, and the motion stops when the button is released.
  • Page 40 Function Checks Chapter 2: Troubleshooting Procedures The unit lowers smoothly until the platform is at 11½" (29.21 cm) above the floor. ↓ → Go to RAP 2.8. 13. Press and hold the head up button (AB) on the hand pendant until the unit stops by itself.
  • Page 41 Function Checks Chapter 2: Troubleshooting Procedures NOTE: The hilow control buttons are on the outside of the siderail. The head and knee control buttons are on the inside of the siderail. 17. Press each siderail control button to briefly operate each function: hilow, head, and knee.
  • Page 42 Function Checks Chapter 2: Troubleshooting Procedures The unit rises smoothly until the platform is approximately 26½" (67.31 cm) above the floor. ↓ → Go to RAP 2.9. 20. Press and hold the hilow down button (AG) until the unit stops by itself. The unit lowers smoothly until the platform is approximately 11½"...
  • Page 43 Function Checks Chapter 2: Troubleshooting Procedures 22. Press and hold the siderail head down control button (AI) until the unit stops by itself. The head section begins to lower. When the head section reaches an angle of approximately 25°, the knee section begins to lower. Both sections lower smoothly until they are flat (parallel to the floor).
  • Page 44 Function Checks Chapter 2: Troubleshooting Procedures Figure 2-6. Electrical Control/Lockout Box m259_027 26. Press the hilow up button (Z) on the hand pendant (see figure 2-3 on page 2-9). The unit stays still. ↓ → If the bed moves, replace the electrical control/lockout box (refer to procedure 4.9).
  • Page 45 Function Checks Chapter 2: Troubleshooting Procedures ↓ → If the bed moves, replace the electrical control/lockout box (go to procedure 4.9). 29. Push the knee up button (AD) on the hand pendant. The knee section begins to rise, and the head section remains stationary. ↓...

  • Page 46: Final Actions

    Final Actions Chapter 2: Troubleshooting Procedures Final Actions 1. Complete the required preventive maintenance procedures. See “Preventive Maintenance Checklist” on page 6-8. 2. Complete all required administrative tasks. 3. Notify the caregiver that the unit can be returned to service. Page 2 - 16 RESIDENT®...

  • Page 47: Floor Lock Brakes Malfunction

    2.1 Floor Lock Brakes Malfunction Chapter 2: Troubleshooting Procedures Floor Lock Brakes Malfunction 1. The floor lock brake (A) is firmly attached to the base frame (B), and no screws (C) are loose (see figure 2-7 on page 2-17). Figure 2-7. Floor Lock Brakes and Casters m259_009 ↓...
  • Page 48 2.1 Floor Lock Brakes Malfunction Chapter 2: Troubleshooting Procedures ↓ → Replace the floor lock brake (A) (refer to procedure 4.1). 4. Release all floor lock brakes (A), and move the bed. All casters (E) turn freely, and the bed moves easily. ↓...

  • Page 49: Central Braking Malfunction

    2.2 Central Braking Malfunction Chapter 2: Troubleshooting Procedures Central Braking Malfunction 1. Raise the foot end siderails, and press down on one of the brake pedals (A) until it locks (see figure 2-8 on page 2-19). Figure 2-8. Central Braking System m259_010 The brake pedal (A) moves with nominal resistance and locks into place.
  • Page 50 2.2 Central Braking Malfunction Chapter 2: Troubleshooting Procedures a. Engage the brakes. b. Place a jack stand beneath the frame to raise it high enough for the casters (D) to be off the floor. c. Attempt to turn each caster (D) wheel by hand. The caster (D) wheel stays still.

  • Page 51: Siderail Malfunction

    2.3 Siderail Malfunction Chapter 2: Troubleshooting Procedures Siderail Malfunction NOTE: The siderail does not tuck under the bed frame. The siderail is in its stored position when it is next to the bed frame. 1. If the siderail (A) is in its stored position (see figure 2-9 on page 2-21), pull it away from the frame, and raise it until you hear a click.
  • Page 52 The siderail (A) moves in smoothly until it contacts the bed frame. ↓ → Replace the damaged siderail (refer to procedure 4.4).This solves the problem. 5. Call Hill-Rom Technical Support at (800) 445-3720. Page 2 - 22 RESIDENT® Low Bed Service Manual (man259)

  • Page 53: Siderail Controls Malfunction

    2.4 Siderail Controls Malfunction Chapter 2: Troubleshooting Procedures Siderail Controls Malfunction 1. If none of the function buttons on a siderail control works, go to step 6. 2. All (hilow, head, and knee) functions work as expected using one siderail control, but not the other.
  • Page 54 2.4 Siderail Controls Malfunction Chapter 2: Troubleshooting Procedures Figure 2-10. Siderail Control Plug Connection to the Junction Box m259_011 4. Replace the siderail (A) with the non-working function button (refer to procedure 4.4). This solves the problem. ↓ → Go to step 6. 5.
  • Page 55 9. Replace the junction box (C) (refer to procedure 4.10). This solves the problem. ↓ → Call Hill-Rom Technical Support at (800) 445-3720. 10. Go to “Final Actions” on page 2-16. 11. Replace the siderail (A) (refer to procedure 4.4).

  • Page 56: Hand Pendant Malfunction

    4. Replace the junction box (refer to procedure 4.10). This solves the problem. ↓ → Call Hill-Rom Technical Support at (800) 445-3720. 5. Go to “Final Actions” on page 2-16. 6. At the junction box on the patient right side of the bed, unplug the hand pendant, and plug in a hand pendant that is known to work.
  • Page 57 2.5 Hand Pendant Malfunction Chapter 2: Troubleshooting Procedures SHOCK HAZARD: The power cord may have 120V AC running through it. Exercise extreme caution when handling electrical components and measuring voltage on live electrical circuits. Severe burns or injury could result. 8.
  • Page 58 (refer to procedure 4.11). If this solves the problem, go to “Final Actions” on page 2-16. If not, call Hill-Rom Technical Support at (800) 445-3720. 13. Go to “Final Actions” on page 2-16.

  • Page 59: Head Actuator Malfunction

    2.6 Head Actuator Malfunction Chapter 2: Troubleshooting Procedures Head Actuator Malfunction 1. The unit is plugged to an appropriate power source. ↓ → Plug the unit into an appropriate power source. If this solves the problem, go the “Final Actions” on page 2-16. If not, go to step 2.
  • Page 60 2.6 Head Actuator Malfunction Chapter 2: Troubleshooting Procedures Figure 2-12. Hand Pendant m259_013 You hear a click each time you press the head up (A) or head down (B) button. ↓ → If a only one button produces a click when pushed, go to RAP 2.5.
  • Page 61 2.6 Head Actuator Malfunction Chapter 2: Troubleshooting Procedures The head section lowers smoothly until it is at an angle of approximately 25° (± 2), at which point the knee section begins to lower. The sections do not stop lowering until they are flat. ↓...
  • Page 62 2.6 Head Actuator Malfunction Chapter 2: Troubleshooting Procedures The bed stays still. ↓ → If the bed moves, replace the electrical control/lockout box (refer to procedure 4.9). 10. Go to “Final Actions” on page 2-16. Page 2 - 32 RESIDENT® Low Bed Service Manual (man259)

  • Page 63: Knee Actuator Malfunction

    2.7 Knee Actuator Malfunction Chapter 2: Troubleshooting Procedures Knee Actuator Malfunction 1. The unit is plugged into an appropriate power source. ↓ → Plug the unit into an appropriate power source. If this solves the problem, go the “Final Actions” on page 2-16. If not, go to step 2.
  • Page 64 2.7 Knee Actuator Malfunction Chapter 2: Troubleshooting Procedures ↓ → If only one button produces a click when pushed, go to RAP 2.5. If there is no click when either button is pushed, replace the electrical control/lockout box (refer to procedure 4.9). 4.
  • Page 65 4.9). 10. The knee actuator is functioning normally. ↓ → Call Hill-Rom Technical Support at (800) 445-3720. 11. Go to “Function Checks” on page 2-4 to determine another source of the problem. RESIDENT® Low Bed Service Manual (man259)

  • Page 66: Hilow Actuator Malfunction

    2.8 Hilow Actuator Malfunction Chapter 2: Troubleshooting Procedures Hilow Actuator Malfunction 1. The unit is plugged into an appropriate power source. ↓ → Plug the unit into an appropriate power source. If this solves the problem, go the “Final Actions” on page 2-16. 2.
  • Page 67 2.8 Hilow Actuator Malfunction Chapter 2: Troubleshooting Procedures ↓ → If a only one button produces a click when pushed, go to RAP 2.5. If there is no click when either button is pushed, replace the electrical control/lockout box (refer to procedure 4.9). 4.
  • Page 68 2.8 Hilow Actuator Malfunction Chapter 2: Troubleshooting Procedures Figure 2-17. Lockout Controls m259_030 9. Press and hold the hilow up button (A) on the hand pendant (see figure 2- 16 on page 2-36). The bed stays still. ↓ → If the bed moves, replace the electrical control/lockout box (refer to procedure 4.9).

  • Page 69: Automatic Contour Malfunction

    2.9 Automatic Contour Malfunction Chapter 2: Troubleshooting Procedures Automatic Contour Malfunction 1. The unit is plugged into an appropriate power source. ↓ → Plug the unit into an appropriate power source. If this solves the problem, go the “Final Actions” on page 2-16. If not, go to step 2.
  • Page 70 2.9 Automatic Contour Malfunction Chapter 2: Troubleshooting Procedures ↓ → If only one button produces a click when pushed, go to RAP 2.5. If there is no click when either button is pushed, replace the electrical control/lockout box (refer to procedure 4.9). 4.
  • Page 71 2.9 Automatic Contour Malfunction Chapter 2: Troubleshooting Procedures Figure 2-20. Junction Box Connections m259_017 • The condition of the automatic contour cable (F) between the junction box (G) and the automatic contour assembly • The condition and mobility of the plunger (H) on the automatic contour assembly (I) (see figure 2-21 on page 2-42) RESIDENT®...
  • Page 72 4.12. To replace the knee actuator, refer to procedure 4.13. If these actions fail to resolve the problem, call Hill-Rom Technical Support at (800) 445-3725. 5. Press and hold the head up button (A) on the hand pendant (see figure 2-18 on page 2-39).
  • Page 73 2.9 Automatic Contour Malfunction Chapter 2: Troubleshooting Procedures ↓ → Check for interference from other parts of the bed. If interference is found, correct it. If no interference is found, refer to table 2-4 on page 2-43. Table 2-4. Automatic Contour Troubleshooting Options For this Non-Working Function Refer to this RAP The head section does not move.
  • Page 74 2.9 Automatic Contour Malfunction Chapter 2: Troubleshooting Procedures Figure 2-22. Lockout Controls m259_031 Press and hold the head up button (A) on the hand pendant (see figure 2-18 on page 2-39). The bed stays still. ↓ → If any section of the bed moves, replace the electrical control/lockout box (D) (refer to procedure 4.9).
  • Page 75 2.9 Automatic Contour Malfunction Chapter 2: Troubleshooting Procedures Press and hold the head up button (A) on the hand pendant (see figure 2-18 on page 2-39). The head section rises, but the knee section remains flat. ↓ → Replace the electrical control/lockout box (D) (refer to procedure 4.9).
  • Page 76 2.9 Automatic Contour Malfunction Chapter 2: Troubleshooting Procedures NOTES: Page 2 - 46 RESIDENT® Low Bed Service Manual (man259)
  • Page 77 Chapter 3 Theory of Operation Chapter Contents Electrical System ..........3 - 3 Theory of Operation .
  • Page 78 Chapter 3: Theory of Operation NOTES: Page 3 - 2 RESIDENT® Low Bed Service Manual (man259)

  • Page 79: Chapter 3: Theory Of Operation

    Electrical System Chapter 3: Theory of Operation Electrical System Figure 3-1. Electrical System Block Diagram m259_019 RESIDENT® Low Bed Service Manual (man259) Page 3 - 3...
  • Page 80 Electrical System Chapter 3: Theory of Operation Figure 3-2. Electrical System Cable Routing m259_051 Page 3 - 4 RESIDENT® Low Bed Service Manual (man259)

  • Page 81: Theory Of Operation

    Theory of Operation Chapter 3: Theory of Operation Theory of Operation The RESIDENT® Low Bed is electrically operated by an AC power supply. A battery DC backup system is available as an option. Only the siderails must be operated electrically. The bed functions (head up/down, knee up/down, or hilow), can be operated manually.
  • Page 82 Theory of Operation Chapter 3: Theory of Operation Figure 3-3. Electrical Control Box Connections m259_020 The input power is split within the electrical control/lockout box (B). One branch of the AC power is routed through a series of relays to control the knee actuator (C), head actuator (D), and hilow actuator (E).

  • Page 83: Junction Box

    Theory of Operation Chapter 3: Theory of Operation Figure 3-4. Lockout Controls m259_032 The automatic contour function operates automatically to raise both the head and knee sections when both the head and knee functions are unlocked. Locking either the knee or head function disables the automatic contour as well as the locked function.

  • Page 84: Automatic Contour Control Assembly

    Theory of Operation Chapter 3: Theory of Operation Figure 3-5. Junction Box Connections m259_021 The siderail controls (L) are interchangeable. Pinouts in the hand pendant (M) and automatic contour control (N) plugs keep them from being connected to the wrong ports. The junction box (K) has no serviceable parts.

  • Page 85: Hand Pendant

    Theory of Operation Chapter 3: Theory of Operation Figure 3-6. Automatic Contour Control Assembly m259_022 The automatic contour control assembly (O) includes a position-measuring plunger (P) that reads the angle as the knee section rises and lowers. The position information is transmitted through a cable that plugs into the junction box (K).

  • Page 86: Siderail Controls

    Theory of Operation Chapter 3: Theory of Operation Figure 3-7. Hand Pendant m259_023 Six graphically identified buttons on the hand pendant (Q) provide control over all of the electrically operated functions. The lockout control for a function must be off for the function to operate. •...

  • Page 87: Mechanical Function

    Theory of Operation Chapter 3: Theory of Operation allow the resident to control the contour functions, which are primarily comfort settings. The outside control buttons are intended for caregiver use in setting the sleep surface height. The lockout control for a function must be off for the function to operate.
  • Page 88 Theory of Operation Chapter 3: Theory of Operation NOTES: Page 3 - 12 RESIDENT® Low Bed Service Manual (man259)
  • Page 89 Chapter 4 Removal, Replacement, and Adjustment Procedures Chapter Contents Floor Lock Brake ..........4 - 3 Removal .

  • Page 90: Chapter 4: Removal, Replacement, And Adjustment Procedures

    Chapter 4: Removal, Replacement, and Adjustment Procedures Removal ........... . . 4 - 23 Replacement .

  • Page 91: Floor Lock Brake

    4.1 Floor Lock Brake Chapter 4: Removal, Replacement, and Adjustment Procedures Floor Lock Brake Tools required: Blue Loctite® adhesive (P/N SA3618) 5/16" Torx® driver bit Jack stand Removal 1. Move the bed to a convenient working location. 2. Place a jack stand beneath the frame to raise it high enough to remove the floor lock brake (A) (see figure 4-1 on page 4-3).

  • Page 92: Replacement

    4.1 Floor Lock Brake Chapter 4: Removal, Replacement, and Adjustment Procedures Replacement 1. Ensure that the floor lock pedal faces away from the bed. 2. With the floor lock pedal (D) to the outside of the bed, align the holes in the floor lock brake (A) with those in the bed floor lock support (E).

  • Page 93: Fixed Casters

    4.2 Fixed Casters Chapter 4: Removal, Replacement, and Adjustment Procedures Fixed Casters Tools required: Screwdriver Hammer Jack stand Removal 1. Move the bed to a convenient working location. 2. Place a jack stand beneath the frame to raise it high enough to remove the caster.

  • Page 94: Replacement

    4.2 Fixed Casters Chapter 4: Removal, Replacement, and Adjustment Procedures CAUTION: During caster replacement, examine the caster socket for cracks or breaks. Do not install a new caster in a damaged caster socket. Early failure of the new caster or equipment damage could occur. 6.

  • Page 95: Central Lock Casters

    4.3 Central Lock Casters Chapter 4: Removal, Replacement, and Adjustment Procedures Central Lock Casters Tools required: Blue Loctite® adhesive (P/N SA3618) Phillips head screwdriver ¼" Allen™ wrench Jack stand Removal 1. Move the bed to a convenient working location. 2. Place a jack stand beneath the frame to raise it high enough to remove the caster.
  • Page 96 4.3 Central Lock Casters Chapter 4: Removal, Replacement, and Adjustment Procedures Figure 4-3. Central Lock Caster Mechanism m259_033 4. Using the ¼" Allen™ wrench, remove the Allen™ screw (B) that secures either of the brake pedals (C) to the hex rod (D). 5.

  • Page 97: Replacement

    4.3 Central Lock Casters Chapter 4: Removal, Replacement, and Adjustment Procedures Replacement WARNING: Before installing a caster, ensure both casters are in the neutral brake position. Failure to do so could result in the casters not braking properly. Personal injury or equipment damage could occur. 1.

  • Page 98: Siderail

    4.4 Siderail Chapter 4: Removal, Replacement, and Adjustment Procedures Siderail Tools required: Pliers 5/16" Torx® driver bit Cable tie tool Removal 1. Move the bed to a convenient working location. WARNING: Lock all caster brakes. Failure to do so could result in inadvertent movement of the bed.

  • Page 99: Replacement

    4.4 Siderail Chapter 4: Removal, Replacement, and Adjustment Procedures Figure 4-4. Siderail m259_034 7. Raise the siderail (C). 8. Support the siderail (C), and remove the two Torx® screws (D) using the 5/16" Torx® bit. 9. Remove the siderail (C) and mounting plate (E) from the frame. Replacement NOTE: Siderails are available as patient-left and patient-right head and foot models.
  • Page 100 4.4 Siderail Chapter 4: Removal, Replacement, and Adjustment Procedures 4. Route the siderail control connector (A) cable along the frame to the junction box (B), and plug it into either receptacle. 5. Secure the siderail control connector (A) cable to the frame with cable ties, and cut away the excess.

  • Page 101: Siderail Latch

    4.5 Siderail Latch Chapter 4: Removal, Replacement, and Adjustment Procedures Siderail Latch Tools required: Drift punch Hammer Crescent wrench Teflon® lubricant (P/N SA0646) Adjustment 1. Move the bed to a convenient working location. WARNING: Lock all caster brakes. Failure to do so could result in inadvertent movement of the bed.
  • Page 102 4.5 Siderail Latch Chapter 4: Removal, Replacement, and Adjustment Procedures Figure 4-5. Siderail Latch Mechanism m259_050 7. Lubricate the latch mechanism (D) with Teflon® lubricant. 8. To ensure proper operation of the RESIDENT® Low Bed, perform the “Function Checks” on page 2-4. 1.

  • Page 103: Base Frame Components

    4.6 Base Frame Components Chapter 4: Removal, Replacement, and Adjustment Procedures Base Frame Components Tools required: Screwdriver E-ring tool Blue Loctite® adhesive (P/N SA3618) 5/16" Torx® driver bit 7/16" Torx® driver bit Hammer Pliers Phillips head screwdriver Safety strap Removal 1.
  • Page 104 4.6 Base Frame Components Chapter 4: Removal, Replacement, and Adjustment Procedures CAUTION: Before attempting to turn the RESIDENT® Low Bed over, secure the head and foot sections to the mid-frame. Failure to do so could result in damage to equipment or personnel. 6.

  • Page 105: Replacement

    4.6 Base Frame Components Chapter 4: Removal, Replacement, and Adjustment Procedures 8. To remove the following parts, use the proper tools and techniques, and remove any fasteners that connect them to other components or the intermediate frame (A) (see figure 4-6 on page 4-18): a.
  • Page 106 4.6 Base Frame Components Chapter 4: Removal, Replacement, and Adjustment Procedures Figure 4-6. Base Frame Component Connections to Intermediate Frame m259_035 Page 4 - 18 RESIDENT® Low Bed Service Manual (man259)

  • Page 107: Sleep Surface Components

    4.7 Sleep Surface Components Chapter 4: Removal, Replacement, and Adjustment Procedures Sleep Surface Components Tools required: Screwdriver Blue Loctite® adhesive (P/N SA3618) 5/16" Torx® driver bit 7/16" Torx® driver bit Hammer Pliers Phillips head screwdriver 9/16" open end wrench Removal 1.
  • Page 108 4.7 Sleep Surface Components Chapter 4: Removal, Replacement, and Adjustment Procedures 5. To remove the following parts, use the proper tools and techniques, and remove any fasteners that connect them to other components or the intermediate frame (A) (see figure 4-7 on page 4-21): a.
  • Page 109 4.7 Sleep Surface Components Chapter 4: Removal, Replacement, and Adjustment Procedures Figure 4-7. Sleep Surface Component Connections to Intermediate Frame m259_036 RESIDENT® Low Bed Service Manual (man259) Page 4 - 21...

  • Page 110: Replacement

    4.7 Sleep Surface Components Chapter 4: Removal, Replacement, and Adjustment Procedures Replacement WARNING: Use Loctite® adhesive on the threads of all Torx® screws before installing them. Failure to do so could allow the fasteners to loosen. This could lead to the sudden collapse of a bed section, which could lead to injury to a resident or caregiver.

  • Page 111: Power Cord

    4.8 Power Cord Chapter 4: Removal, Replacement, and Adjustment Procedures Power Cord Tools required: Screwdriver Removal 1. Move the bed to a convenient working location. WARNING: Lock all caster brakes. Failure to do so could result in inadvertent movement of the bed. This could cause equipment damage or personal injury.
  • Page 112 4.8 Power Cord Chapter 4: Removal, Replacement, and Adjustment Procedures WARNING: The bed is always energized when connected to a power source. Unplug the unit from its power source. Failure to do so could result in inadvertent movement of the bed and could cause personal injury. 4.

  • Page 113: Replacement

    4.8 Power Cord Chapter 4: Removal, Replacement, and Adjustment Procedures Replacement 1. Plug a new power cord (E) into the electrical control/lockout box (D). 2. Install new wire ties (F) at each support position along the frame. 3. Install the plug lock on the underside of the plug ports. 4.

  • Page 114: Electrical Control/Lockout Box

    4.9 Electrical Control/Lockout Box Chapter 4: Removal, Replacement, and Adjustment Procedures Electrical Control/Lockout Box Tools required: Screwdriver Phillips head screwdriver Removal 1. Move the bed to a convenient working location. WARNING: Lock all caster brakes. Failure to do so could result in inadvertent movement of the bed.

  • Page 115: Replacement

    4.9 Electrical Control/Lockout Box Chapter 4: Removal, Replacement, and Adjustment Procedures WARNING: The bed is always energized when plugged into a power source. Unplug the unit from its power source. Failure to do so could result in inadvertent movement of the bed and could cause personal injury. 4.
  • Page 116 4.9 Electrical Control/Lockout Box Chapter 4: Removal, Replacement, and Adjustment Procedures 2. Using a phillips head screwdriver, install the two screws (J) through the electrical control/lockout box (D) overhang into each support bracket. 3. Insert the following plugs into the correct ports on the electrical control/lockout box (D): junction box (I), hilow actuator (H), head actuator (G), knee actuator (F), and power cord (E).

  • Page 117: 4.10 Junction Box

    4.10 Junction Box Chapter 4: Removal, Replacement, and Adjustment Procedures 4.10 Junction Box Tools required: Phillips head screwdriver Removal 1. Move the bed to a convenient working location. WARNING: Lock all caster brakes. Failure to do so could result in inadvertent movement of the bed.

  • Page 118: Replacement

    4.10 Junction Box Chapter 4: Removal, Replacement, and Adjustment Procedures Figure 4-12. Junction Box Connections m259_039 6. Note the junction box (C) cable routing, and cut all cable ties (D) that secure the junction box (C) cable to the frame rail. 7.
  • Page 119 4.10 Junction Box Chapter 4: Removal, Replacement, and Adjustment Procedures 4. Route the junction box (C) cable along the frame rail to the electrical control/lockout box (B), and attach the junction box (C) cable to the rail with cable ties (D). 5.

  • Page 120: 4.11 Hand Pendant

    4.11 Hand Pendant Chapter 4: Removal, Replacement, and Adjustment Procedures 4.11 Hand Pendant Tools required: None 1. Move the bed to a convenient working location. Removal WARNING: Lock all caster brakes. Failure to do so could result in inadvertent movement of the bed. This could cause equipment damage or personal injury.

  • Page 121: Replacement

    4.11 Hand Pendant Chapter 4: Removal, Replacement, and Adjustment Procedures Figure 4-13. Hand Pendant m259_040 5. Cut and remove tie wraps (C) that hold the pendant cord to the frame. Replacement 1. Insert the new hand pendant plug (A) into the junction box (B). 2.

  • Page 122: 4.12 Head Actuator

    4.12 Head Actuator Chapter 4: Removal, Replacement, and Adjustment Procedures 4.12 Head Actuator Tools required: Screwdriver Pliers Cable tie tool Removal 1. Move the bed to a convenient working location. WARNING: Lock all caster brakes. Failure to do so could result in inadvertent movement of the bed.
  • Page 123 4.12 Head Actuator Chapter 4: Removal, Replacement, and Adjustment Procedures Figure 4-14. Head Actuator Motor Frame Connection m259_041 7. Note the head actuator (C) cable routing, and cut the cable ties (D) that secure the head actuator (C) cable to the bed frame. WARNING: If the head and/or knee section cannot be lowered to its full flat position, brace the section securely so it does not collapse suddenly when the...

  • Page 124: Replacement

    4.12 Head Actuator Chapter 4: Removal, Replacement, and Adjustment Procedures Replacement 1. Align the hole in the tip of the head actuator (C) rod between the holes in the head section support brace (I). 2. Insert a clevis pin (H) through the aligned holes, and secure it with a rue ring (G).

  • Page 125: 4.13 Knee Actuator

    4.13 Knee Actuator Chapter 4: Removal, Replacement, and Adjustment Procedures 4.13 Knee Actuator Tools required: Screwdriver Pliers Cable tie tool Removal 1. Move the bed to a convenient working location. WARNING: Lock all caster brakes. Failure to do so could result in inadvertent movement of the bed.
  • Page 126 4.13 Knee Actuator Chapter 4: Removal, Replacement, and Adjustment Procedures Figure 4-15. Knee Actuator Motor Frame Connection m259_042 7. Note the knee actuator (C) cable routing, and cut the cable ties (D) that secure the knee actuator (C) cable to the bed frame. WARNING: If the head and/or knee section cannot be lowered to the full flat position, brace the section securely to prevent sudden collapse when...

  • Page 127: Replacement

    4.13 Knee Actuator Chapter 4: Removal, Replacement, and Adjustment Procedures Replacement 1. Align the hole in the tip of the knee actuator (C) rod between the holes in the knee section support brace (I). 2. Insert a clevis pin (H) through the aligned holes, and secure it with a rue ring (G).

  • Page 128: 4.14 Hilow Actuator

    4.14 Hilow Actuator Chapter 4: Removal, Replacement, and Adjustment Procedures 4.14 Hilow Actuator Tools required: Screwdriver Pliers Cable tie tool Removal 1. Move the bed to a convenient working location. WARNING: Lock all caster brakes. Failure to do so could result in inadvertent movement of the bed.
  • Page 129 4.14 Hilow Actuator Chapter 4: Removal, Replacement, and Adjustment Procedures Figure 4-16. Hilow Actuator Motor Frame Connection m259_043 8. Note the hilow actuator (C) cable routing, and cut the cable ties (D) that secure the hilow actuator (C) cable to the bed frame. WARNING: If the bed cannot be lowered to its lowest position, brace the intermediate frame components securely to prevent sudden collapse...

  • Page 130: Replacement

    4.14 Hilow Actuator Chapter 4: Removal, Replacement, and Adjustment Procedures NOTE: The new actuator tip must be installed in the same holes. 14. Remove the rue ring (G) and clevis pin (H) that secure the tip of the hilow actuator (C) rod and the two spacers (J) to the hilow section support brace (I).

  • Page 131: 4.15 Automatic Contour Assembly

    4.15 Automatic Contour Assembly Chapter 4: Removal, Replacement, and Adjustment Procedures 4.15 Automatic Contour Assembly Tools required: Blue Loctite® adhesive (P/N SA3618) Phillips head screwdriver 7/16" Torx® driver bit Cable tie tool Removal 1. Move the bed to a convenient working location. WARNING: Lock all caster brakes.
  • Page 132 4.15 Automatic Contour Assembly Chapter 4: Removal, Replacement, and Adjustment Procedures Figure 4-17. Seat Pan Attachment m259_044 7. Remove the automatic contour plug (C) from the junction box (D) (see figure 4-18 on page 4-45). Page 4 - 44 RESIDENT® Low Bed Service Manual (man259)

  • Page 133: Replacement

    4.15 Automatic Contour Assembly Chapter 4: Removal, Replacement, and Adjustment Procedures Figure 4-18. Automatic Contour Control Assembly m259_045 8. Remove the two screws (E), and lift the cover (F) from the automatic contour control assembly (G). 9. Remove the two screws (H) that hold the automatic contour control assembly (G) to the frame.
  • Page 134 4.15 Automatic Contour Assembly Chapter 4: Removal, Replacement, and Adjustment Procedures 6. Apply Loctite® adhesive to two Torx® head screws (A), and install them through the seat pan (B) to secure it to the frame. 7. To ensure proper operation of the RESIDENT® Low Bed, perform the “Function Checks”...
  • Page 135 Chapter 5 Parts List Chapter Contents Warranty ............5 - 3 Service Parts Ordering .

  • Page 136: Chapter 5: Parts List

    Chapter 5: Parts List NOTES: Page 5 - 2 RESIDENT® Low Bed Service Manual (man259)

  • Page 137: Warranty

    Replacement of non-technical items will be the responsibility of the customer. If requested by Hill-Rom, products or parts for which a warranty claim is made shall be returned prepaid to Hill-Rom’s factory.
  • Page 138 Warranty Chapter 5: Parts List NOTES: Page 5 - 4 RESIDENT® Low Bed Service Manual (man259)

  • Page 139: Service Parts Ordering

    • Product number • Serial number • Part number(s) Hill-Rom also provides a fax number to promptly order parts, request part prices and availability, or follow up on a service order. The fax number is (812) 934-8472. RESIDENT® Low Bed Service Manual (man259)
  • Page 140 RMA packet is included with each order. This packet includes an RMA number, instructions, and a shipping label. If an RMA number is not available, obtain one by phoning Hill-Rom Technical Support at (800) 445-3720. Page 5 - 6...

  • Page 141: Exchange Policy

    In some cases, the invoice accompanying the parts will show the full selling price (only for internal use at Hill-Rom). Do not confuse this price with your price. Do not return any parts without an RMA number. When parts/products have been requested to be returned, Hill-Rom will include an RMA packet with the parts/products shipment.

  • Page 142: Recommended Spare Parts

    Recommended Spare Parts Chapter 5: Parts List Recommended Spare Parts For a recommended spare parts list to service five or more units, see table 5-1 on page 5-8. Table 5-1. Recommended Spare Parts Part Number Quantity Description 8252 (872) 2 oz. M-1 Oil SA3351 (872) 4 oz.
  • Page 143 Recommended Spare Parts Chapter 5: Parts List NOTES: RESIDENT® Low Bed Service Manual (man259) Page 5 - 9...

  • Page 144: Base Frame And Caster Assemblies

    Base Frame and Caster Assemblies Chapter 5: Parts List Base Frame and Caster Assemblies Figure 5-2. Base Frame and Caster Assemblies m259_001 Page 5 - 10 RESIDENT® Low Bed Service Manual (man259)
  • Page 145 Base Frame and Caster Assemblies Chapter 5: Parts List Table 5-2. Base Frame and Caster Assemblies Item Number Part Number Quantity Description 65770 (872) 2 or 4 Cap 1" square (models with fixed caster head end or floor lock brakes only) 63067 (872) 2 or 4 Caster socket (models with fixed caster...

  • Page 146: Main Frame

    Main Frame Chapter 5: Parts List Main Frame Figure 5-3. Main Frame m259_002 Page 5 - 12 RESIDENT® Low Bed Service Manual (man259)
  • Page 147 Main Frame Chapter 5: Parts List Table 5-3. Main Frame Item Number Part Number Quantity Description 65408 (872) Pivot arm, lower assembly 4972833 (872) Pivot arm upper 49800 (872) Bushing 62828 (872) Shoulder screw 3/8"-16 61078 (872) Nut wing ¼"-20 27251 (872) Washer 90018-24 (872)
  • Page 148 Main Frame Chapter 5: Parts List Item Number Part Number Quantity Description 37104 (872) Shoulder screw, 3/8"-24 black 90234-22 (872) Locknut 610350233 Bumper, base board (80" model only) (872) 653880133 Deck, head section weldment (80" model (872) only) Page 5 - 14 RESIDENT®...
  • Page 149 Main Frame Chapter 5: Parts List NOTES: RESIDENT® Low Bed Service Manual (man259) Page 5 - 15...

  • Page 150: Electrical Assemblies

    Electrical Assemblies Chapter 5: Parts List Electrical Assemblies Figure 5-4. Electrical Assemblies m259_005 Page 5 - 16 RESIDENT® Low Bed Service Manual (man259)
  • Page 151 Electrical Assemblies Chapter 5: Parts List Table 5-4. Electrical Assemblies Item Number Part Number Quantity Description 18252 (872) Screw 19124 (872) Large cable tie 25200 (872) Speed clamp 34844 (872) Strain relief 61615 (872) Rue ring cotter 65517 (872) Cable, power supply 65441 (872) Actuator, head 65442 (872)

  • Page 152: Siderail Assemblies

    Siderail Assemblies Chapter 5: Parts List Siderail Assemblies Figure 5-5. Siderail Assemblies m259_046 Page 5 - 18 RESIDENT® Low Bed Service Manual (man259)
  • Page 153 Siderail Assemblies Chapter 5: Parts List Table 5-5. Siderail Assemblies Item Number Part Number Quantity Description SA1672 (872) 2 or 4 Slide bracket, screws 43880 (872) 4 or 8 Torx® pan head screw 6562202 (872) Head siderail assembly with controls, rh (optional) 6562201 (872) Head siderail assembly with controls, lh...
  • Page 154 Siderail Assemblies Chapter 5: Parts List Item Number Part Number Quantity Description 6011303 (872) Siderail control, lh, outer (lh siderail assembly only) 6011302 (872) Siderail control, rh, outer (rh siderail assembly only) 90349-05 (872) Hilow screw 49932 (872) Cable, interconnect 6011304 (872) Siderail control, lh, inner (lh siderail assembly only)
  • Page 155 Siderail Assemblies Chapter 5: Parts List NOTES: RESIDENT® Low Bed Service Manual (man259) Page 5 - 21...

  • Page 156: Labels

    Labels Chapter 5: Parts List Labels Figure 5-6. Labels m259_003 Page 5 - 22 RESIDENT® Low Bed Service Manual (man259)
  • Page 157 Labels Chapter 5: Parts List Table 5-6. Labels Item Number Part Number Quantity Description 65508 (872) Label, bundle 65541 (872) Label, warning (French) Reference only Label, pendant 61208 (872) Label, brake LTC 41696-02 (872) Warning/caution label 416960201 Warning/caution label—French (872) RESIDENT®...
  • Page 158 Labels Chapter 5: Parts List NOTES: Page 5 - 24 RESIDENT® Low Bed Service Manual (man259)
  • Page 159 Chapter 6 General Procedures Chapter Contents Cleaning and Care..........6 - 3 General Cleaning .

  • Page 160: Chapter 6: General Procedures

    Chapter 6: General Procedures NOTES: Page 6 - 2 RESIDENT® Low Bed Service Manual (man259)

  • Page 161: Cleaning And Care

    Cleaning and Care Chapter 6: General Procedures Cleaning and Care WARNING: Follow the product manufacturer’s instructions. Failure to do so could result in personal injury or equipment damage. SHOCK HAZARD: Unplug the unit from its power source. Failure to do so could result in personal injury or equipment damage.

  • Page 162: Mattress Care

    Clean the mattress fabric with neutral soap suds and lukewarm water. Rinse with clear water, and allow the fabric to dry. Care of Wooden Headboards and Footboards Wood products from Hill-Rom are treated with a resin-based sealer and finish which provide resistance to abrasion, staining, fluids, and fire. CAUTION: Use a diluted solution of ammonia or household detergent to clean the wood surfaces.

  • Page 163: Lubrication Requirements

    Lubrication Requirements Chapter 6: General Procedures Lubrication Requirements WARNING: Follow the product manufacturer’s instructions. Failure to do so could result in personal injury or equipment damage. CAUTION: Do not use silicone-based lubricants. Equipment damage could occur. Oilite® bearings and bushings are utilized in several places on the system. By retaining oil, the pores give a self-lubricating quality to the bearings and bushings.

  • Page 164: Preventive Maintenance

    Preventive Maintenance Chapter 6: General Procedures Preventive Maintenance WARNING: Only facility-authorized personnel should perform preventive maintenance on the RESIDENT® Low Bed. Preventive maintenance performed by unauthorized personnel could result in personal injury or equipment damage. The RESIDENT® Low Bed requires an effective maintenance program. We recommend that you perform annual preventive maintenance (PM) and testing for Joint Commission on Accreditation of Healthcare Organizations (JCAHO).

  • Page 165: Preventive Maintenance Schedule

    Preventive Maintenance Chapter 6: General Procedures Preventive Maintenance Schedule Table 6-2. Preventive Maintenance Schedule Function Procedure Hilow limits Position the hilow function to its upper and lower limits of 26" to 11.5" (66 cm to 29.2 cm) to ensure proper function of the hilow drive assembly.

  • Page 166: Preventive Maintenance Checklist

    Preventive Maintenance Chapter 6: General Procedures Preventive Maintenance Checklist Table 6-3. Preventive Maintenance Checklist Date Function Hilow limits Automatic contour Head section limits Knee section limits Brakes Casters Siderails Lockout box Pendant control Wiring Pivot points Headboard/footboard Overall appearance Labor Time: Repair Cost: Inspected by: Page 6 - 8...

  • Page 167: Tool And Supply Requirements

    Tool and Supply Requirements Chapter 6: General Procedures Tool and Supply Requirements To service the RESIDENT® Low Bed, the following tools and supplies are required: • ½" socket • Drive ratchet • Blue Loctite® adhesive (P/N SA3618) • 5/16" Torx® driver bit •...
  • Page 168 Tool and Supply Requirements Chapter 6: General Procedures NOTES: Page 6 - 10 RESIDENT® Low Bed Service Manual (man259)
  • Page 169 Chapter 7 Accessories Chapter Contents Accessories ............7 - 3 IV Rod—P2217 .

  • Page 170: Chapter 7: Accessories

    Chapter 7: Accessories NOTES: Page 7 - 2 RESIDENT® Low Bed Service Manual (man259)
  • Page 171 Accessories Chapter 7: Accessories Accessories For RESIDENT® Low Bed accessories, see table 7-1 on page 7-3. Table 7-1. Accessories List Product Number Description P2217 (872) IV rod P846A01 (872) Trapeze support (80" model bed only) P846A01-1 (872) Trapeze support (76" model bed only) P9912A01 (872) Bed extender P442 (872)

  • Page 172: Rod-P2217

    7.1 IV Rod—P2217 Chapter 7: Accessories IV Rod—P2217 Tools required: None The two-sectioned, telescopic IV rod mounts in any of the sockets located at the four corners of the bed. The IV rod is adjustable in length so that it may be raised or lowered.

  • Page 173: Removal

    7.1 IV Rod—P2217 Chapter 7: Accessories Removal Twist the lower section (B) counterclockwise, and lift the IV rod (A) from the socket. RESIDENT® Low Bed Service Manual (man259) Page 7 - 5...

  • Page 174: Trapeze Support-P846A01 And P846A01-1

    7.2 Trapeze Support—P846A01 and P846A01-1 Chapter 7: Accessories Trapeze Support—P846A01 and P846A01-1 Tools required: ½" socket Drive ratchet ½" wrench The trapeze support secures to either the head end or foot end of the bed, and has a maximum weight limit of 180 lb (82 kg). Installation 1.

  • Page 175: Ambulatory Assist Rail-P441

    7.3 Ambulatory Assist Rail—P441 Chapter 7: Accessories Ambulatory Assist Rail—P441 The ambulatory assist rail aids the resident when getting into or exiting the bed. RESIDENT® Low Bed Service Manual (man259) Page 7 - 7...

  • Page 176: Bed Extender-P9912A01

    7.4 Bed Extender—P9912A01 Chapter 7: Accessories Bed Extender—P9912A01 The bed extender assembles to the foot end of the bed to enable taller residents to keep their feet on the bed. Page 7 - 8 RESIDENT® Low Bed Service Manual (man259)

  • Page 177: Auxiliary Power Supply-P442

    7.5 Auxiliary Power Supply—P442 Chapter 7: Accessories Auxiliary Power Supply—P442 Tools required: None The auxiliary power supply enables operation of the actuators to position the bed in the event of a power failure. The auxiliary power supply charges through a standard 120V AC, 60-cycle outlet, and can be fully charged in 24 hours.

  • Page 178: Head Panel And Foot Panel-P4071, P4072, P4073, And P4074

    7.6 Head Panel and Foot Panel—P4071, P4072, P4073, and P4074 Chapter 7: Accessories Head Panel and Foot Panel—P4071, P4072, P4073, and P4074 Tools required: None The Hearthside head panel and foot panel (P4071), Heirloom head panel and foot panel (P4072), Artisan Post head panel and foot panel (P4073), and Artisan Dentil head panel and foot panel (P4074) are available as accessories.

Table of Contents
