RIXSON
ASSA ABLOY

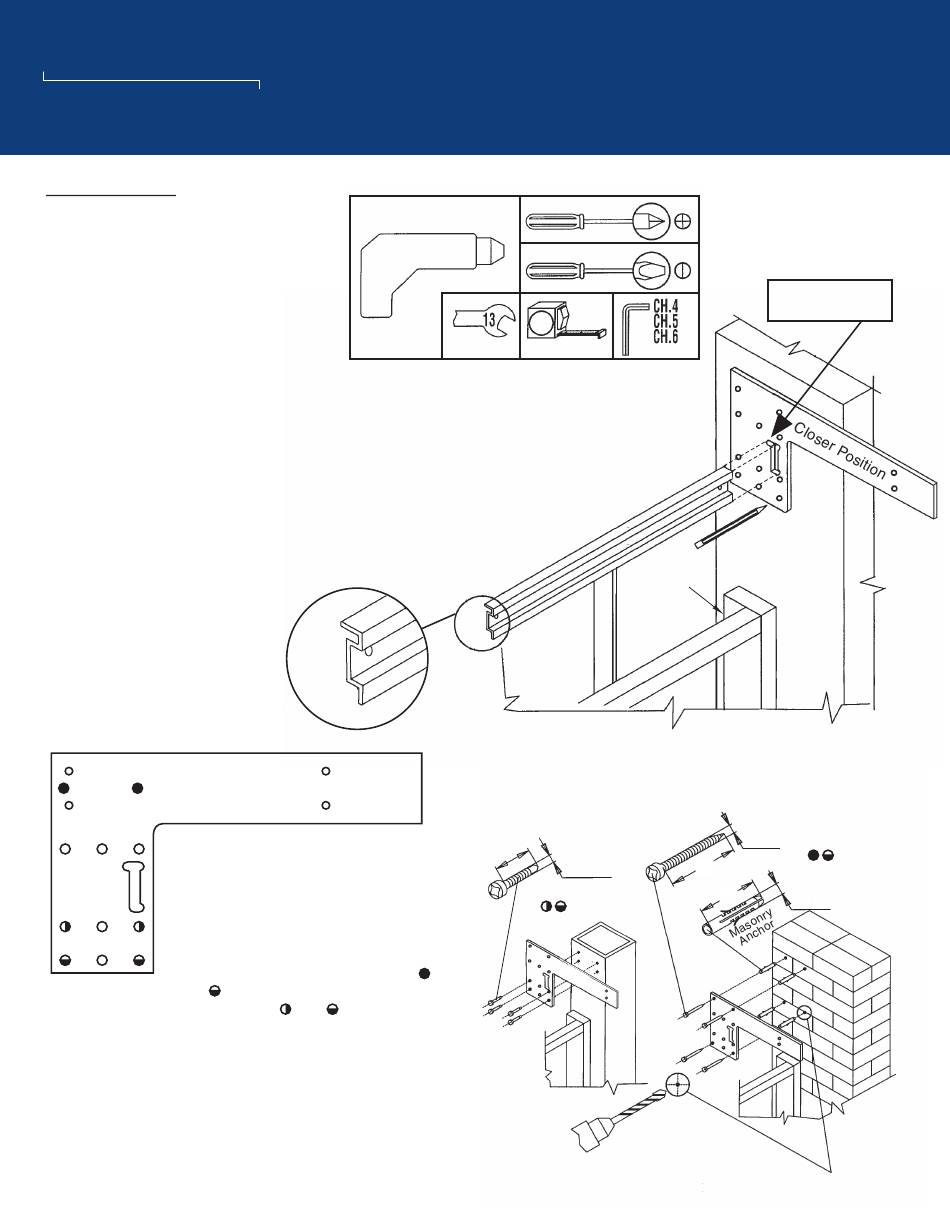

Model 1351
Max. Gate Size: 54" x 120"
Pull Side Mount ONLY
1
Locate and mark closer mounting plate.
Using one aluminum slide track (B), insert it
into the closer mounting plate (A). This insures
the track will be in exact alignment to the closer
body. Mark the hole locations on the post.
IMPORTANT: Position (A) so the closer portion of
the plate will be mounted to the pull side of the gate.
2
mounted in either orientation.) Use
and
mounting. Use
tubular post mounting. Attach (A) with
four hex screws. If the gate post is
masonry, use the longer screws with
the anchors included in the package. If
tube post extends above gate, use
masonry hole locations.
OS19510 (06-13)
®
Tools Required
B
Mount plate to post on pull
side of gate. (Note that this
plate is not handed so it can be
holes for masonry post
and
holes for
1351 Gate Closer
25mm
5.5mm
Tube Post
www.rixson.com
OS19510 (06-13)
Slide "B" into "A"
A
Push
Side
Hinge
Side
6mm
50mm
40mm
8mm
8mm
866-474-9766 Technical Department
Masonry
Post
Advertisement
Table of Contents
Related Manuals for Assa Abloy Rixson 1351
Summary of Contents for Assa Abloy Rixson 1351
- Page 1 1351 Gate Closer ® RIXSON ASSA ABLOY OS19510 (06-13) Model 1351 Tools Required Max. Gate Size: 54" x 120" Pull Side Mount ONLY Slide "B" into "A" Locate and mark closer mounting plate. Using one aluminum slide track (B), insert it into the closer mounting plate (A).
- Page 2 FOR OPEN SPOKE GATE TOP Put the steel plates on either side of the spokes. This will sandwich the spokes between the two steel plates. Position the first screw of the plate so that from the face of the post to edge of the steel plate is approximately 7-7/8"...
- Page 3 Insert guide with pin into open end of the track assembly. DO NOT PAINT Attach second track end cap to steel plates with screws provided. It may be necessary to gently pull apart the two tracks allowing Metal Sleeve room to insert the metal sleeve. Attach surface closer to closer mounting plate on the post.
- Page 4 RIXSON ASSA ABLOY Rixson® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company. Copyright© 2009, 2013, Yale Security Inc., an ASSA ABLOY Group company. PAGE 4 All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
