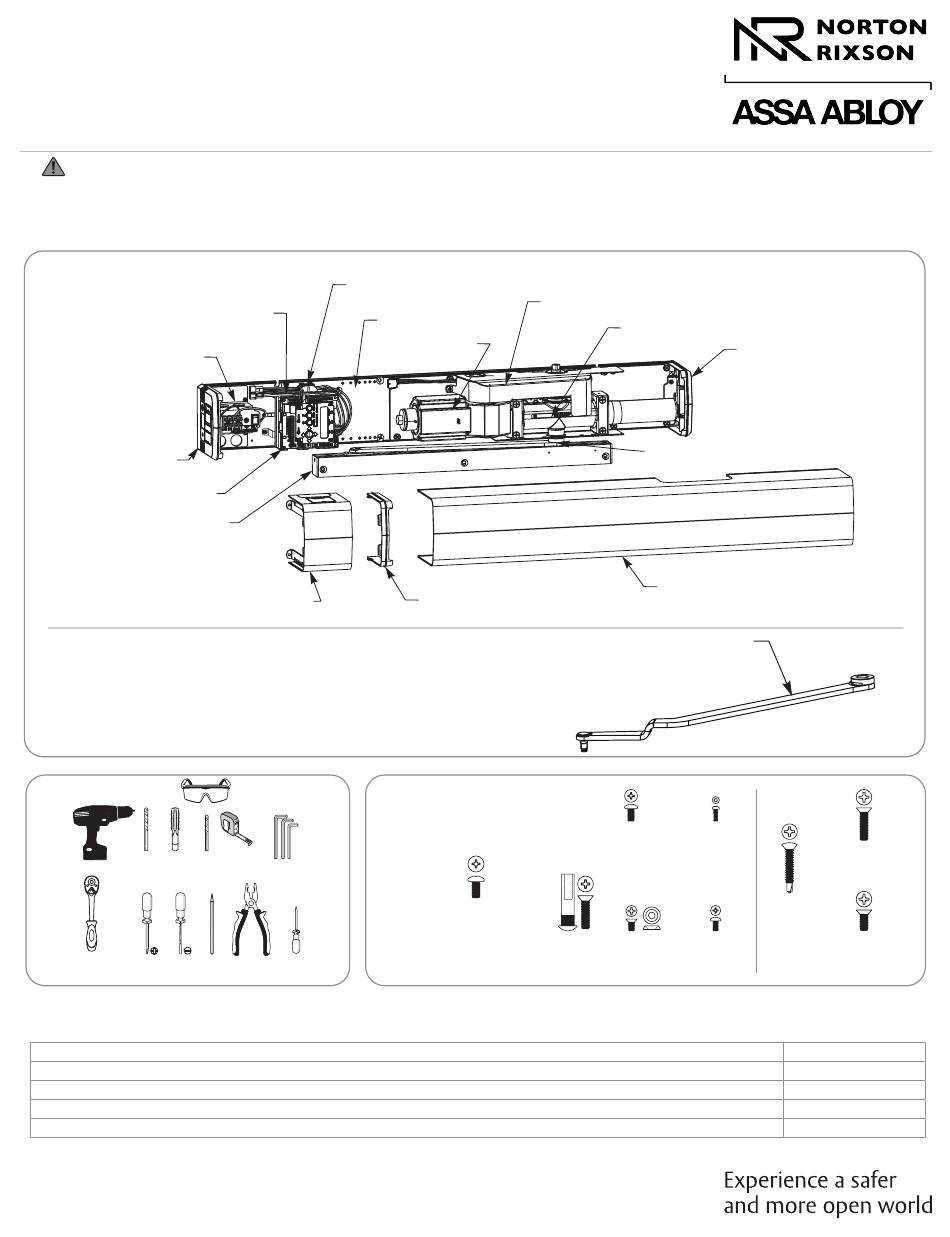

6011/6051 Series
(Pull Side) Power Operator
Installation Instructions
WARNING
This product can expose you to lead which is known to the
state of California to cause cancer and birth defects or other
reproductive harm. For more information go to:
www.P65warnings.ca.gov.
6011 Pull Side Max 1/8" (3mm) reveal
Power Supply
Conduit Assembly
(6001CON)
End Cap - LH
(6001ENLH)
Inverter
(6000IN)
Track Assembly
(7200-1T)
6051 Pull Side (Handed) 1/8" to 3" (3mm to 76mm) reveal
All components above with 7250-1(R or L) instead of 7210-1A arm
Tools Needed
#7
1/4-20
11/16" Socket #2 & #3
& Ratchet
The table below provides a list of documents associated with this product. These documents are available for download
from www.nortonrixson.com. If additional information or assistance is needed, contact Technical Product Support.
6000 Series Single Door Installation Programming Instructions
Template for installing conduit holes above frame (into wall)
6011 Series Template
6051 Series Template
Copyright © 2023, 2024, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole or in
part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
80-9360-1040-020 Rev 2 01/24
Power Module Sub-assembly
(6001PM)
(6000SUP)
Union Assembly
(6001U)
Supplied Fasteners
Safety Glasses
3/8
Set (Inch)
Punch
Document Title
Approved 2024-02-13
Operator LAP
(6011LAP)
Backplate (6001BP)
Motor (not field
replaceable)
Union Spacer
(6001US)
NOTE: Fasteners shown are for
this specific installation.
(Fasteners for other installations
are included in the package)
13x
Power Module Sub-assembly
Conduit Assembly
End Caps
Union Assembly
#8-32 x 5/16" 1/4-20 x 2"
Pour la version francaise voir NortonRixson.com.
READ AND FOLLOW ALL INSTRUCTIONS.
SAVE THESE INSTRUCTIONS.
Closer Assembly
(7500LAP)
Arm Assembly
(7210-1A)
Cover
(6001COV)
Double Egress Arm
(7250-1R/7250-1L shown)
2x 2x
Union Spacer Union Door
#6-32 x 1/4" #4-40 x 3/8"
3x 1x 8x
Track Arm Operator LAP
1/4-20 x 1/2" 1/4-20 x 1/2"
End Cap - RH
(6001ENRH)
2x
Backplate
1/4-20 x 1"
OR
8x
Backplate
#14 x 1-1/2"
6x
Backplate
1/4-20 x 5/8"
Document Number
80-9360-1043-020
80-7360-1043-020
80-8360-1045-020
80-7360-1048-020
