- Page 1 OWNER’S AND INSTALLATION MANUAL INDOOR UNIT SPLIT DIAMANT GIA-S09DIAR32-INT | GIA-S12DIAR32-INT Thanks for choosing our product. Please, read carefully this manual before using the product.
-
Page 2: Table Of Contents
Content Operation Notices Precautions ......................1 Parts name ......................5 Maintenance Clean and maintenance ..................6 Malfunction Malfunction analysis ...................9 Installation Notice Installation drawing ..................12 Installation prepare ..................13 Installation Installation of indoor unit ................14 Check after installation ................... 19 Test operation .................... -
Page 3: Precautions
Precautions WARNING Operation and Maintenance This appliance can be used by children aged of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 4 Precautions WARNING Operation and Maintenance Do not block air outlet or air inlet. It may cause malfunction. Do not spill water on the remote controller, otherwise the remote controller may be broken. When below phenomenon occurs, please turn off air conditioner and disconnect power immediately, and then contact the dealer or professional person for service.
- Page 5 Precautions WARNING Appendixes Air Conditioner should be properly grounded. Incorrect grounding may cause electric shock. Don't use unqualified power cord. Make sure the power supply matches with the requirement of air conditioner.Unstable power supply or incorrect wiring will cause malfunction. Please install proper power supply cables before using the air conditioner.
- Page 6 Precautions Attachment WARNING All wires of indoor unit and outdoor unit should be connected by professional person. If the length of power connection wire is insufficient, please contact the supplier for a new one. Avoid extending the wire by yourself. For the air conditioner with plug, the plug should be reachable after finishing installation.
-
Page 7: Parts Name

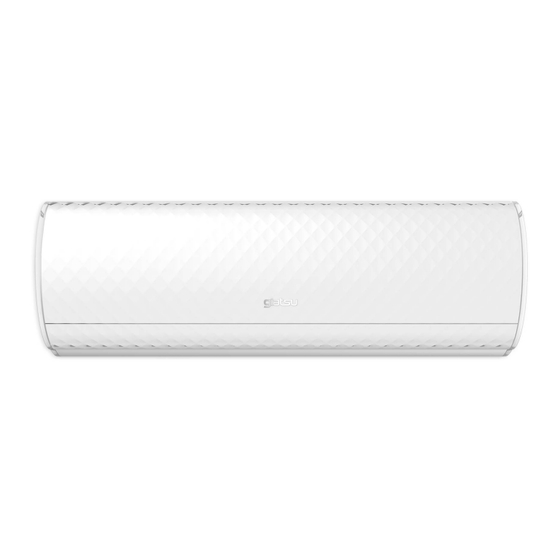

Parts name Indoor unit Panel Air inlet Filter Air outlet Horizontal louver Aux.button Display Remote controller Wifi display Temperature display PM2.5 display Power display NOTE: Actual product may be different from above graphics,please refer to actual products. -
Page 8: Clean And Maintenance
Indoor unit address inquiry If match with MULTI-S outdoor unit, when units has malfunction and need to inquire the address to maintainance, the step is as below: Remote controller aims to the indoor display, press "Light" and "-" buttons at the same time for 3s , then will display the indoor unit address(1~5) for 3s. - Page 9 Clean and maintenance 2. Remove IFD module Pull out the IFD module by pressing the buttons at the left and right ends. IFD module Healthy filters 3. Clean IFD module Clean IFD module by vacuum cleaner or water rinsing. If the IFD module is too dirty such as serious oil contamination, it should be cleaned with warm water (below 45℃...
- Page 10 Clean and maintenance Checking before use-season 1. Check whether air inlets and air outlets are blocked. 2. Check whether air switch, plug and socket are in good condition. 3. Check whether filter is clean. 4. Check whether drainage pipe is damaged. Checking after use-season 1.
-
Page 11: Malfunction Analysis
Malfunction analysis General phenomenon analysis Please check below items before asking for maintenance. If the malfunction still can't be eliminated,please contact local dealer or professional person. Phenomenon Check items Solution Whether it's interfered severely Pull out the plug. Reinsert the plug (such as static electricity, stable after about 3min, and then turn on voltage)? - Page 12 Malfunction analysis Phenomenon Check items Solution Because indoor air is cooled rapidly. Mist is emitted Is indoor temperature and After a while, indoor temperature and from indoor unit’s humidity high? humidity will be decrease and mist air outlet. will disappear. Temperature can’t be adjusted under Is unit operating under auto auto mode.
- Page 13 Malfunction analysis Error Code When air conditioner status is abnormal, temperature indicator on indoor unit will blink to dispiay corresponding error code. Please refer to below list for identification of error code. Below listed error codes are only part error codes. Please refer to error code list in serive manual for more information.
-
Page 14: Installation Drawing
Installation drawing Space to the wall At least 15cm At least 15cm Space to the wall Selection of location Basic requirement Installing the unit in the following places maycause malfunction. If it is unavoidable, please consult the local dealer: 1.The place with strong heat sources,vapors,flammable or explosive gas,or volatile objects spread in the air. -
Page 15: Installation Prepare
Installation prepare Tools 1 Level meter 2 Screw driver 3 Impact drill 4 Drill head 5 Pipe expander 6 Torque wrench 7 Open-end wrench 8 Pipe cutter 9 Leakage detector 10 Vacuum pump 11 Pressure meter 12 Universal meter 13 Inner hexagon spanner 14 Measuring tape Safety precaution 1. -
Page 16: Installation Of Indoor Unit
Installation of indoor unit Step 1: Choose installation place Recommend the installation place to client and then confirm it with client. Step 2: Install wall-mounting frame 1. Hang the wall-mounting frame on the wall; make it in Verticalwith the level meter and then make the screw fixing holes on the wall . - Page 17 Installation of indoor unit Step 4: Outlet pipe 1. The pipe can be led out in the direction of 2. When select leading out the pipe from right, rear right or left. left or right, please cut off the corresponding hole on the bottom case.
- Page 18 Installation of indoor unit Step 6: Install drain hose 1.Connect the drain hose to the outlet pipe of indoor unit. drain hose outlet pipe 2.Bind the joint with tape. drain hose drain hose outlet pipe tape insulating pipe ● Add insulating pipe out of the indoor drain hose in order to prevent condensation. ●...
- Page 19 Installation of indoor unit Step 8: Bind up pipe 1. Bind up the connection pipe, power cord and drain hose with the band. 2. Reserve a certain length of drain hose and power cord for installation when binding them.When binding to a certain degree, separate the indoor power and then separate the drain hose.
- Page 20 Installation of indoor unit Note: The through-wall height of drain hose shouldn't be higher than the outlet pipe hole of indoor unit. The water outlet can't be placed in water in order to drain smoothly. The drain hose can't raise upwards. The water outlet can't be placedin water Slant the drain hose slightly downwards.
-
Page 21: Check After Installation
Check after installation Check according to the following requirement after finishing installation. Items to be checked Possible malfunction Has the unit been installed firmly? The unit may drop, shake or emit noise. Have you done the refrigerant leakage It may cause insufficient cooling(heating) test? capacity. -
Page 22: Test Operation
Test operation 1. Preparation of test operation ● The client approves the air conditioner. ● Specify the important notes about air conditioner to the client. 2. Method of test operation ● Connect the power, press ON/OFF button on the remote controller to start operation. - Page 23 C./ Industria, 13 l Polígono Industrial El Pedregar 08160 Montmeló Barcelona (Spain) Phone: (0034) 93 390 42 20 Fax: (0034) 93 390 42 05 info@giatsu.com www.giatsu.com info@giatsu. lt www.giatsu. lt...
