Jetson JLRB20-BLK Manual

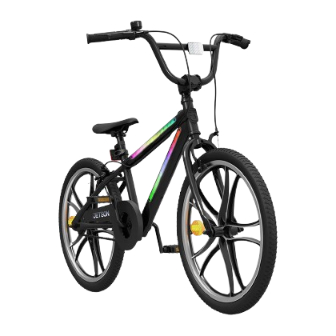

Kids' light-up bicycle
Hide thumbs

Advertisement

Quick Links

Download this manual
Light Rider 20-BMX Style
Kids' Light-Up Bicycle.
A guide for your ride.
IMPORTANT: READ CAREFULLY AND RETAIN FOR FUTURE REFERENCE.
MODEL SKU: JLRB20-BLK
U.S. Patent No. 11,155,315

Advertisement

loading
Need help?

Need help?

Do you have a question about the JLRB20-BLK and is the answer not in the manual?

Questions and answers

Related Manuals for Jetson JLRB20-BLK

Summary of Contents for Jetson JLRB20-BLK

  • Page 1 Light Rider 20-BMX Style Kids' Light-Up Bicycle. A guide for your ride. IMPORTANT: READ CAREFULLY AND RETAIN FOR FUTURE REFERENCE. MODEL SKU: JLRB20-BLK U.S. Patent No. 11,155,315...
  • Page 3 Jetson's top two riding rules: Be safe. Have fun!

  • Page 4: Table Of Contents

    Contents Safety Warnings ........................4 Warranty Coverage .
  • Page 5 ................... 4 8 3.1 Riding Your Jetson Light Rider .

  • Page 6: Safety Warnings

    Safety Warnings • Before use, please read the user manual and safety warnings carefully, and make sure you understand and accept all the safety instructions. The user will be responsible for any loss or damage caused by improper use. • Before each cycle of operation, the operator shall perform the preoperation checks specified by the manufacturer: That all guards and pads originally supplied by the manufacturer are in proper place and in serviceable condition;...

  • Page 7: Maintenance Precautions

    • Prolonged exposure to UV rays, rain and the elements may damage the enclosure materials, store indoors when not in use. MODIFICATIONS Do not attempt to disassemble, modify, repair, or replace the product or any components of the unit without instruction from the Jetson Care Team. This will void any warranty, and can lead to malfunctions which may cause injury.

  • Page 8: Warranty Coverage

    Your new Jetson product is warranted against defects in materials and workmanship as indicated on ridejetson.com/ warranty for a period of time from the date of original retail purchase when used in accordance with Jetson's user manuals (refer to ridejetson.com/support). Under this warranty, you will be able to direct your claims to Jetson even in situations where you purchased the Jetson Product from one of our authorized retailers.

  • Page 10: Product Overview

    Product Overview 1. BIKE FRAME 12. LIGHTING POWER & CONTROL BUTTONS 2. FRONT WHEEL* 13. REAR WHEEL 3. HANDLEBAR* 14. SEAT POST 4. BELL 15. SEAT CLAMP 5. SEAT* 16. HANDBRAKE (X2; LEFT AND RIGHT) 6. PEDAL WITH REFLECTORS (X2; LEFT AND RIGHT)* 17.
  • Page 11 NOTE: IMAGES MAY NOT REFLECT EXACT APPEARANCE OF ACTUAL PRODUCT.

  • Page 12: Specs & Features

    Specs & Features ∙ PRODUCT DIMENSIONS: 57.8” (L) X 26.1” (W) X 37.0” (H) ∙ HANDLEBAR HEIGHT: 37.0” - 39.3” ∙ SEAT HEIGHT: 24.2” - 28.9” ∙ PRODUCT WEIGHT: 30.1 LB ∙ TIRE SIZE: 20” ∙ BRAKES: FRONT AND REAR WHEEL RIM CALIPER BRAKES WITH HANDBRAKE CONTROL ∙...

  • Page 13: Online Resources

    Online Resources Scan for our most updated Jetson Light Rider 20-BMX Style onboarding materials and support resources. WARNING: FAILURE TO COMPLY WITH THE FOLLOWING INSTRUCTIONS MAY RESULT IN INJURY TO THE CHILD OR OTHERS. • KEEP SMALL PARTS AWAY FROM CHILDREN DURING ASSEMBLY.

  • Page 15: Getting Started

    1. Getting Started Starting Notes ∙ KICK OFF YOUR ADVENTURE RIGHT: PRIOR TO USE OF THIS PRODUCT, CAREFULLY READ THE ENTIRE USER MANUAL, INCLUDING SAFETY WARNINGS. MAKE SURE YOU UNDERSTAND, ACCEPT, AND ADHERE TO ALL: • MANUFACTURER’S RECOMMENDATIONS. • SAFETY INSTRUCTIONS AND WARNINGS. •...

  • Page 16: Attaching The Front Wheel

    FRONT WHEEL AXLE NUTS 15MM WRENCH Attaching the Front Wheel YOU WILL NEED THE 15MM WRENCH. 1. LOOSEN AND REMOVE THE AXLE NUTS FROM BOTH SIDES OF THE FRONT WHEEL BY TURNING EACH COUNTERCLOCKWISE WITH YOUR FINGERS OR THE 15MM WRENCH. 2.
  • Page 17 BRAKE CALIPER DIRECTIONAL MARKING ON TIRE FRONT FORK AXLE WASHER 4. LIFT THE BIKE UPRIGHT AND ROTATE THE FRONT FORK SO THAT ONE FORK LEG IS ON THE LEFT SIDE AND ONE FORK LEG IS ON THE RIGHT SIDE OF THE BIKE. 5.
  • Page 18 WASHER HOOK HOLE 8. PLACE ONE OF THE REMOVED WASHERS ONTO EACH END OF THE AXLE WITH THE HOOK CURVED INWARD AND ALIGNED WITH THE WASHER HOOK HOLE IN THE FORK LEG. PUSH THE HOOK INTO THE HOLE.

  • Page 19: Front Fork

    FRONT FORK AXLE NUT 15MM WRENCH 9. FINGER-TWIST AN AXLE NUT CLOCKWISE ONTO EACH SIDE OF THE AXLE. 10. TIGHTEN THE AXLE NUTS WITH THE 15MM WRENCH. 11. CHECK THAT THE WHEEL IS SECURE AND SPINS FREELY IN THE FORK. IMPORTANT: AN UNSECURED WHEEL CAN LOOSEN OR FALL OFF, PUTTING THE RIDER AT RISK OF SERIOUS INJURY.

  • Page 20: Installing The Handlebar

    Installing the Handlebar YOU WILL NEED THE 13MM WRENCH. 1. LOOSEN THE CAP BOLT ON THE TOP OF THE HANDLEBAR BY TURNING IT COUNTERCLOCKWISE FOR 1-2 ROTATIONS WITH THE 13MM WRENCH. 2. POSITION THE HANDLEBAR ABOVE THE HEAD TUBE WITH THE HANDLEBAR POST IN LINE WITH THE STEM AND THE BELL ON THE RIGHT SIDE OF THE BIKE.
  • Page 21 4. CHECK THAT THE HANDLEBAR AND FRONT FORK ARE ALIGNED, SUCH THAT WHEN THE WHEEL IS POINTED FORWARD AND THE HANDLEBAR IS STRAIGHT ACROSS THE BIKE. IF NECESSARY, MAKE ROTATIONAL ADJUSTMENTS ON EITHER THE HANDLEBAR OR THE FORK UNTIL BOTH PIECES ARE STRAIGHT AND ALIGNED. 5.
  • Page 22 6. TIGHTEN THE CAP NUT BY TURNING IT CLOCKWISE WITH THE WRENCH. 7. CHECK THAT THE HANDLEBAR IS SECURE AND THAT THE FRONT WHEEL TURNS LEFT OR RIGHT IN ACCORDANCE WITH THE ROTATION OF THE HANDLEBAR. CAP NUT 13MM WRENCH...

  • Page 24: Assembling The Front Brake

    Assembling the Front Brake NOTE: YOU MAY NEED ANOTHER SET OF HANDS TO GET THE FRONT BRAKE CONNECTED. (GRAB AN ASSISTANT!) 1. LOOSEN BUT DO NOT REMOVE THE CABLE ANCHOR NUT ON THE FRONT BRAKE CALIPER BY TURNING IT COUNTERCLOCKWISE WITH THE 10 MM WRENCH.

  • Page 25: Brake Cable

    3. SQUEEZE THE CALIPER CLOSED WITH ONE HAND SO THAT THE BRAKE PADS ARE HUGGING THE TIRE RIM AND, WITH THE OTHER HAND, PULL THE SLACK OUT OF THE BRAKE CABLE UNTIL THE CABLE IS TAUT. (SEE PAGE 44 FOR MORE DETAILS ON PROPER BRAKE PAD ALIGNMENT.) CALIPER BRAKE CABLE...
  • Page 26 4. WITH THE BRAKE CABLE TAUT AND THE CALIPER STILL HELD CLOSED, TIGHTEN THE CABLE ANCHOR NUT BY TURNING IT CLOCKWISE WITH THE 10MM WRENCH. BRAKE CABLE CABLE ANCHOR NUT 10MM WRENCH...
  • Page 27 5. CHECK THAT THE FRONT WHEEL BRAKE CABLE IS CONNECTED TO THE HANDBRAKE AND TO THE CABLE ADJUSTMENT BARREL. 6. PULL AND RELEASE THE FRONT BRAKE HANDBRAKE (ON THE LEFT SIDE OF THE HANDLEBAR) SEVERAL TIMES TO ENSURE THAT THE BRAKE CALIPER IS OPENING AND CLOSING SMOOTHLY AND THAT THE BRAKE PADS ARE CLOSING SUCH THAT THEY ARE ALIGNED WITH THE WHEEL RIM.
  • Page 28 7. TIGHTEN THE BOLT ON THE BACK OF THE FRONT FORK BY TURNING CLOCKWISE WITH THE BOLT 10MM WRENCH. 10MM WRENCH FRONT FORK...
  • Page 29 8. TIGHTEN THE LOCK NUT ON THE TOP FRONT OF THE BRAKE CALIPER BY TURNING IT CLOCKWISE WITH THE 10MM WRENCH. LOCK NUT 10MM WRENCH FRONT FORK...
  • Page 30 9. PULL AND RELEASE THE LEFT HANDBRAKE A FEW TIMES AS A SECOND CHECK TO SEE THAT THE CALIPER IS OPENING AND CLOSING SMOOTHLY AND THAT THE PADS ARE CLOSING SUCH THAT THEY ARE ALIGNED WITH THE WHEEL RIM.

  • Page 31: Adjusting The Rear Brake

    Adjusting the Rear Brake 1. PULL AND RELEASE THE REAR BRAKE LEVER (THE HANDBRAKE ON THE RIGHT SIDE OF THE HANDLEBAR) SEVERAL TIMES. CHECK THAT THE CALIPER IS OPENING AND CLOSING SMOOTHLY AND THAT THE REAR BRAKE PADS ARE CLOSING SUCH THAT THEY ARE ALIGNED WITH THE REAR BRAKE RIM.

  • Page 32: Attaching The Seat

    Attaching the Seat 1. PULL OPEN THE LATCH ON THE SEAT CLAMP. 2. LOCATE THE "MINIMUM INSERTION" MARK ENGRAVED NEAR THE BOTTOM OF THE SEAT POST. LOWER THE SEAT POST THROUGH THE CLAMP AND INTO THE SEAT TUBE. (IF THE CLAMP OPENING IS TOO NARROW TO RECEIVE THE POST, YOU CAN WIDEN IT BY TURNING THE KNOB COUNTERCLOCKWISE WHILE HOLDING THE LATCH STEADY.) 3.
  • Page 33 4. CLOSE THE LATCH ON THE SEAT CLAMP. SEAT CLAMP LATCH...
  • Page 34 5. CHECK THAT THE SEAT IS SECURE: USE YOUR HAND TO PUT DOWNWARD PRESSURE ON THE SEAT. IF THE SEAT POST SLIPS FURTHER DOWN INTO THE TUBE, BRING IT BACK TO POSITION AND TIGHTEN THE CLAMP BY TURNING THE KNOB CLOCKWISE.

  • Page 36: Crank Arm

    RIGHT ("R") PEDAL CRANK ARM SPINDLE Attaching the Pedals YOU WILL NEED THE 15MM WRENCH. 1. NOTE THE "R" AND "L" MARKINGS ON THE END OF SPINDLE OF EACH PEDAL, INDICATING "RIGHT" AND "LEFT." 2. ALIGN THE SPINDLE ON "R" PEDAL WITH THE HOLE AT THE END OF THE CRANK ARM ON THE SIDE OF THE BIKE WHERE YOU WILL PEDAL WITH YOUR RIGHT FOOT.
  • Page 37 15MM WRENCH 4. FINISH INSERTING AND THEN TIGHTENING THE PEDAL INTO THE CRANK ARM BY TURNING IT CLOCKWISE WITH THE 15MM WRENCH. CHECK THAT THE RIGHT PEDAL IS SECURE. 5. REPEAT STEPS 2-4 WITH THE LEFT ("L") PEDAL. IMPORTANT: THE SPINDLE ON THE LEFT PEDAL IS REVERSE THREADED AND NEEDS TO BE INSERTED AND TIGHTENED WITH COUNTERCLOCKWISE TURNS.

  • Page 38: Inflating The Tires

    DUST CAP TIRE VALVE Inflating the Tires BEFORE YOUR FIRST RIDE, YOU WILL NEED TO ADD AIR TO YOUR TIRES TO BRING THEM TO THE RECOMMENDED PRESSURE OF 40 PSI (POUNDS PER SQUARE INCH). USE A GAUGE TO CHECK THAT THE TIRE PRESSURE IS AT OR AROUND 40 PSI PRIOR TO EVERY RIDE.
  • Page 39 2. FOLLOW THE MANUFACTURE'S INSTRUCTIONS ON YOUR AIR PUMP TO INSERT AIR INTO THE TIRE. CHECK PERIODICALLY WITH A GAUGE AND CONTINUE ADDING AIR UNTIL YOU REACH 40 PSI. IMPORTANT: ONLY USE A MANUAL AIR PUMP TO INFLATE THE TIRES ON YOUR BIKE. NEVER USE AN AIR COMPRESSOR;...
  • Page 40 DUST CAP TIRE VALVE 4. FINGER-TWIST THE DUST CAP CLOCKWISE ONTO THE VALVE. 5. REPEAT WITH THE OTHER TIRE.

  • Page 41: Adjusting The Handlebar Position

    Adjusting the Handlebar Position (if necessary) THE HANDLEBAR SHOULD BE IN POSITIONED SUCH THAT THE RIDER CAN EASILY REACH BOTH HANDGRIPS. ADJUSTING THE ANGLE CAN BE DONE WITH A 6MM ALLEN KEY (NOT INCLUDED). 1. LOOSEN THE BOLTS ON THE HANDLEBAR CLAMP BY TURNING EACH CLOCKWISE WITH THE 6MM ALLEN KEY FOR 1 - 2 ROTATIONS.

  • Page 42: Securing The Handbrakes

    Securing the Handbrakes 1.10 1. ROTATE THE HANDBRAKES AROUND THE HANDLEBAR UNTIL THEY ARE AT THE DESIRED HEIGHT. 2. WHILE HOLDING EACH HANDBRAKE IN POSITION, TIGHTEN THE BOLT ON THE HANDBRAKE CLAMP BY TURNING IT CLOCKWISE WITH THE ALLEN KEY. HANDLEBAR BOLT 5MM ALLEN KEY...

  • Page 43: Battery Compartment

    BATTERY COMPARTMENT 3 AA BATTERIES Inserting & Changing the Batteries 1.11 BATTERIES FOR MAIN FRAME LIGHTS YOU WILL NEED 3 AA BATTERIES (NOT INCLUDED). 1. TO UNLOCK THE BATTERY COMPARTMENT, GENTLY PUSH THE END OF IT AND TURN IT COUNTERCLOCKWISE. 2.
  • Page 44 4. SLIDE THE COMPARTMENT BACK INTO THE FRAME. 5. GENTLY PUSH THE COMPARTMENT IN AND TURN IT CLOCKWISE TO LOCK IT INTO THE FRAME.

  • Page 45: Pre-Ride Safety Checks

    Pre-Ride Safety Checks 1.12 CONDUCT THESE IMPORTANT SAFETY CHECKS BEFORE EVERY RIDE. BRAKES ∙ CHECK THE BRAKES ARE IN GOOD WORKING ORDER. ∙ CHECK THAT THE BRAKE PADS ARE NOT WORN, ARE ALIGNED, AND ARE CENTERED CORRECTLY ON THE WHEEL RIMS. (SEE PAGE 44.) ∙...
  • Page 46 CHECKING THE BRAKES CHECK THAT THE BRAKE PADS ARE IN PROPER ALIGNMENT AND THE BRAKES ARE FUNCTIONING PROPERLY PRIOR TO EVERY RIDE. TO READJUST ALIGNMENT OF THE PADS, LOOSEN THE BOLTS ON THE BRAKE CALIPER, PLACE THE PADS IN THE CORRECT POSITION, AND RE-TIGHTEN THE BOLTS.

  • Page 47: Features And Functions

    2. Features & Functions Using the Bell USE THE BELL AS AN ALERT TO OTHER RIDERS AND PEDESTRIANS. TO SOUND THE BELL, FLICK DOWN ON THE BELL TAB QUICKLY AND FORCEFULLY WITH YOUR RIGHT-HAND THUMB. BELL TAB BELL...

  • Page 48: Using The Lights

    Using the Lights FRAME LIGHTS YOU CAN LIGHT UP YOUR RIDE WITH 4 DIFFERENT LIGHTING PATTERNS AND IN 8 DIFFERENT COLORS (INCLUDING "MULTI"). TO TURN THE LIGHTS ON OR OFF: PRESS AND HOLD THE LIGHTING POWER BUTTON FOR 1-2 SECONDS. TO CHANGE TO ANOTHER LIGHTING PATTERN (4 TOTAL): PRESS AND HOLD THE MODE BUTTON FOR 3-4 SECONDS.

  • Page 49: Using The Kickstand

    Using the Kickstand TO USE THE KICKSTAND, PIVOT IT DOWN AND GENTLY TILT YOUR BIKE ONTO IT TO STAND. TO RAISE THE KICKSTAND, PIVOT IT BACK UP. IMPORTANT: ALWAYS RAISE THE KICKSTAND BEFORE RIDING. KICKSTAND...

  • Page 50: Making Moves

    3. Making Moves Riding Your Jetson Light Rider NOW THAT YOU HAVE YOUR JETSON LIGHT RIDER 20 SAFELY ASSEMBLED, IT’S TIME TO RIDE OUT AND LIGHT UP THE WORLD. TO MOVE: ROTATE THE PEDALS FORWARD. TO TURN: ROTATE THE HANDLEBAR LEFT OR RIGHT.

  • Page 51: Using The Brakes

    Using the Brakes SQUEEZE ONE OR BOTH HANDBRAKES TO SLOW DOWN; SQUEEZE MORE FORCEFULLY TO COME TO A COMPLETE STOP. TO AVOID ABRUPT MOVEMENTS, TRY TO SQUEEZE THE HANDBRAKE(S) GRADUALLY. ∙ LEFT HANDBRAKE FRONT WHEEL BRAKE ∙ RIGHT HANDBRAKE REAR WHEEL BRAKE FRONT BRAKE HANDBRAKE REAR BRAKE HANDBRAKE...

  • Page 52: Helmet Safety

    Helmet Safety A HELMET SHOULD BE WORN BY THE RIDER AT ALL TIMES. PROPER POSITIONING: IMPROPER POSITIONING: THE FOREHEAD IS COVERED THE FOREHEAD IS EXPOSED. BY THE HELMET. A FALL COULD RESULT IN SERIOUS INJURY. * WEAR A HELMET, APPROPRIATE CLOTHING, SHOES, AND SAFETY GEAR. AVOID CLOTHING THAT CAN GET CAUGHT INTO OR UNDER THE WHEELS.

  • Page 53: Care & Maintenance

    CAREFULLY WIPE WITH A DAMP CLOTH AND THEN DRY WITH A DRY CLOTH. ∙ DO NOT APPLY WATER DIRECTLY TO THE JETSON LIGHT RIDER. THIS CAN CAUSE DAMAGE TO THE FRAME AND ELECTRICAL SYSTEMS, WHICH CAN RESULT IN MALFUNCTIONS THAT LEAD TO PERSONAL INJURY.

  • Page 55: Stay Connected

    Stay connected. Be sure to follow @ridejetson on social media to learn about fantastic offers, giveaways, and all the latest Jetson news. Loving your ride? Then be sure to leave a review at ridejetson.com/reviews. We can’t wait to hear from you!
  • Page 56 Date Code: 08/2024 Document Edition: v1.0 © 2024, JETSON. ALL RIGHTS RESERVED. Manufactured by JETSON ELECTRIC BIKES LLC. No portion of this document, including shape, copy, graphics, and design, may be reproduced or transmitted in any form or by any means.
