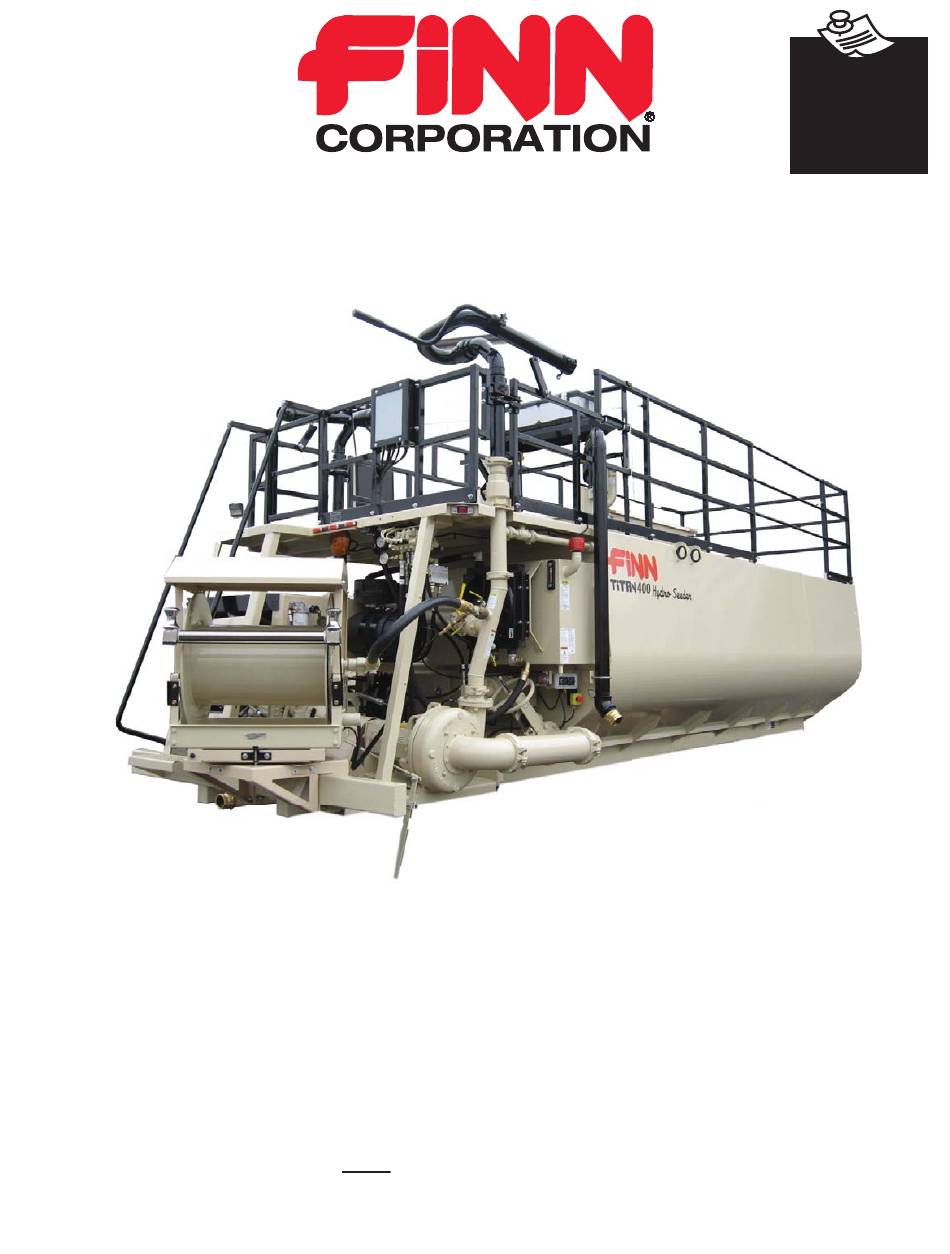

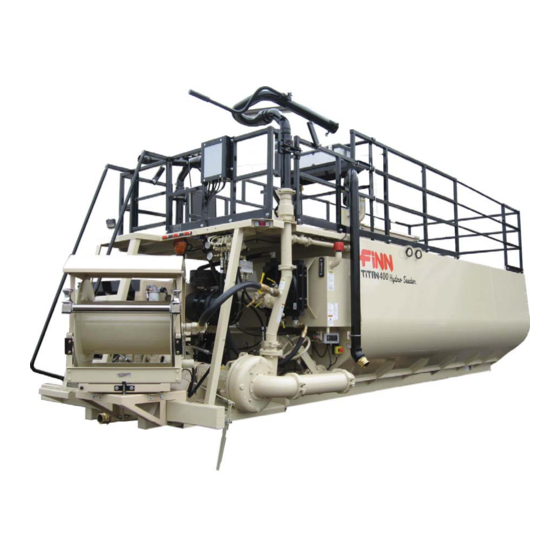

TITAN280 / TITAN330 / TITAN400
Operator Instructions and Parts Manual
TITAN MMA2017 Rev. D
9281 LeSaint Drive • Fairfield, Ohio 45014
Phone (513) 874-2818 • Fax (513) 874-2914
Sales: 1-800-543-7166
HydroSeeder
Model MMA
Serial No. _____________
Activate
Activate
Your Warranty
Your Warranty
By Registering
By Registering
TODAY!!!
TODAY!!!
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HydroSeeder TITAN280 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Finn HydroSeeder TITAN280

Summary of Contents for Finn HydroSeeder TITAN280

  • Page 1 Activate Activate Your Warranty Your Warranty By Registering By Registering TODAY!!! TODAY!!! 9281 LeSaint Drive • Fairfield, Ohio 45014 Phone (513) 874-2818 • Fax (513) 874-2914 Sales: 1-800-543-7166 TITAN280 / TITAN330 / TITAN400 HydroSeeder ® Operator Instructions and Parts Manual Model MMA Serial No.
  • Page 2 FOR OFFICE USE ONLY DATE UPDATE DESCRIPTION CODE 02/26/11 Initial release MMA0226 02/10/16 Revision A: Part number corrections MMA0210 09/29/16 Revision B: new identification light bar MMA0929 03/15/17 Revision C: Manual Canister added to unit; added to Structure and Railing parts list MMA2017 06/26/17 Revision D: Structure and Railing parts list updated;...
  • Page 3 IF FINN CORPORATION DOES NOT HAVE YOUR COMPLETED REGISTRATION FORM ON FILE, YOUR WARRANTY CLAIM WILL BE DENIED. Once your FINN equipment has been registered, your FINN Limited Warranty will be activated per the warranty statement on the next page.
  • Page 4 Follow the instruction sheet, on property damage sustained by a person claiming to be a third party how to use your Finn Oil Analysis Kit that comes with the Kit. Failure beneficiary of a surviving warranty under the law of any jurisdiction.

  • Page 5: Table Of Contents

    Definition of Hydroseeding ........6 The FINN HydroSeeder® and How It Works ......6 Mounting The HydroSeeder®...
  • Page 6 INDEX (Continued) CLEANING AND MAINTENACE Cleaning and Maintenance ........32 - 37 After First 4 to 8 Hours of Operation.

  • Page 7: Safety First

    SAFETY FIRST With any piece of equipment, new or used, the most important part of its operation is SAFETY! FINN Corporation encourages you and your employees to familiarize yourselves with your new equipment and stresses safe operation. The first five pages of this manual are a summary of the main safety aspects associated with this unit.

  • Page 8: Safety Summary Section

    Practice all other usual and customary safe working precautions. Above all, remember that safety is up to you. The FINN HydroSeeder® is designed to mix and apply water, seed, fertilizer, agricultural lime, and hydrau- lic mulch to the prepared seedbed. The resultant slurry from mixing one or more of the above materials may react, causing harmful or deadly gasses within the tank.
  • Page 9 Only the operator should be located on the platform 3. Recirculation valve must be open and material flow- during operation. ing back into the tank when using the remote valve. A closed or plugged recirculation line will cause extreme 6. Operator(s) of equipment heat in the pump or discharge lines that will result in should never ride on the severe bodily injury and damage to the equipment.
  • Page 10 Make sure your company’s 9. It is recommended that only authorized, genuine FINN plan meets all the requirements of 29 CFR 1910.146., replacement parts be used on the machine.
  • Page 11 CURRENT SET OF SAFETY DECALS DANGER DANGER CONFINED SPACE HAZARD! (Reference: OSHA 29 CFR 1910.146) Before entering tank: 1. Drain, flush, and ventilate tank interior. ELECTROCUTION HAZARD! 2. Turn off engine and disconnect battery cables. 3. Continuously ventilate area or wear appropriate breathing apparatus. DO NOT aim stream toward electrical 4.

  • Page 12: Operation And Maintenance

    THE FINN HYDROSEEDER® AND HOW IT WORKS The FINN HydroSeeder® will apply seed, fertilizer and/or lime, wood fiber mulch, or stabilizing materi- als in any prescribed or desired combination. The materials placed in the HydroSeeder® slurry tank...

  • Page 13: Truck Mounting Calculations

    TRUCK MOUNTING CALCULATIONS (WB x FL) – (WB x FE) = G WB x (RE + HW - RL.) = G G + C must be equal to or less than CA (WB x FE) + (G x HW) = FL (WB x RE) + HW x (WB –...

  • Page 14: Attachments

    Mounting the HydroSeeder® to the truck must allow for tire clearance, as well as frame twist. Place hard wood spacers along the length of truck rails or use FINN Spring Mounting Kit (number 011562) or equivalent. Also, two spring kits are required for the TITAN400.

  • Page 15: Pre-Start Check

    NOTE: For remote pump on/off control, the clutch cylinder must be con- nected to an air supply. 5. Air Flush System: The air flush option uses compressed air to purge any remaining mulch slurry from the HydroSeeder ® hose, the discharge boom and the recirculation piping. To maximize performance, all discharge plumbing should be purged after every load.

  • Page 16: Two-Valve Operation

    TWO-VALVE OPERATION ® This HydroSeeder is equipped with two independently operated ball valves to control slurry flow. One is located in the recirculation line below the platform and the other is located in the discharge line above the platform. The valve handles should be positioned as shown in Figures 6 and 7 for the particular application required.

  • Page 17: Discharge Through Boom

    1. DISCHARGE THROUGH BOOM: CLOSED Flow is through boom with no flow through closed recir- POSITION culation valve (Figure 6). Flow through boom is controlled FLOW by engaging and disengaging slurry pump clutch. NOTE: Do not use the discharge valve to control dis- OPEN tance.

  • Page 18: Starting Procedure

    STARTING PROCEDURE CAUTION See HYDROSEEDER® SAFETY SUMMARY SECTION on pages 2 through 5 before operating the machine. Failure to comply could result in mild to moderate personal injury. Failure to comply could also result in product or property damage. Before starting, open recirculation valve, close discharge and remote valves (if applicable), disengage (turn off) clutch, and place agitator control in the NEUTRAL position.

  • Page 19: Faceplate

    Faceplate The keypad on the PowerView is a capacitive touch-sensing system. There are no mechanical switches to stick or wear out. It can be operated in extreme temperatures, while wearing gloves, and is impervi- ous to ice, snow, mud, grease, etc. When the key is touched, feedback is provided by flashing on the screen.

  • Page 20: Stored Fault Codes

    Stored Fault Codes The PowerView Display will store any fault GO TO 4-UP DISPLAY ENGINE CONFGURATION codes generated by the engine, along with a text STORED FAULT CODES description. To access these fault codes: ADJUST BACKLIGHT ADJUST CONTRAST 1. Touch the Menu Key to display the Main SELECT UNITS SETUP 1-UP DISPLAY Menu.

  • Page 21: Area Coverage - Material Capacity

    ® The following tables show loading versus coverage rates for the FINN T170 HydroSeeder Table A shows rates for one-step applications. The coverage area is determined by the fiber mulch ®...
  • Page 22 TABLE B – Seed and Fertilizer Only Unit Amount of Material in Tank in lbs (kilograms) Coverage Area in sq. ft (sq. m) Seed Fertilizer Total sq. ft (sq. m) Acreage (Hectare) TITAN280 3,136 (1,422) 3,600 (1,633) 6,736 (3,055) 392,040 (36,420) 9 (3.64) TITAN330 3,485 (1,580) 4,000 (1,814) 7,485 (3,395)

  • Page 23: Tank Capacity Chart

    Top of TITAN280 Load Hatch Gallons in. (cm) from in. (cm) from (Liters) top of load hatch bottom 2,750 Gallons 2,750 (10,410) 9 (22.9) 58.5 (148.6) 10,400 Liters 2,700 (10,220) 12.75 (32.4) 54.75 (139.1) 2,600 (9,840) 14.75 (37.5) 52.75 (134) 2,500 (9,465) 16.5 (41.9) 51 (129.5)
  • Page 24 TITAN400 Gallons in. (cm) from in. (cm) from (Liters) top of load hatch bottom 3,975 (15,045) 9 (22.9) 58.5 (148.6) 3,900 (14,762) 10 (25.4) 57.5 (146.1) 3,800 (14,383) 11.5 (29.2) 56 (142.2) 3,700 (14,005) 12.5 (31.8) 55 (139.7) 3,600 (13,626) 14 (35.6) 53.5 (135.9) 3,500 (13,248)
  • Page 25 NOTES...

  • Page 26: Loading (For Wood Fiber Mulch)

    G. Replace nozzle and gasket in discharge boom. 4. Continue filling tank with water. 5. Increase engine speed to full RPM. Governed speed of the engine on the FINN HydroSeeder® should be 2,550 to 2,600 RPM under load. 6. Start loading dry material, loading the lightest material first. Agitator control should be in full MIX position for mixing.

  • Page 27: Loading And Mixing Bfm, Fgm, Smm, And Other Highly Viscous Slurries

    C. Fertilizer – Stand over hatch opening and drop the bag onto the bag cutter. Grasp both ends of the bag and dump material. D. All other additives – Consult with manufacturer for proper loading technique. 7. When all materials are loaded and in suspension, and the tank is full, move the agitator to NEUTRAL then full speed FORWARD to ensure all material is mixed.
  • Page 28 4. Continue filling tank with water. 5. Increase throttle to 3/4 of full throttle. 6. Start loading dry material, loading the lightest materials first. Agitator control should be in full REVERSE for mixing. Seed - Cut open the seed bag and dump contents into slurry tank. (When using inoculant, add it in the tank along with the seed.) When using quick-swelling seeds, load them just prior to application.

  • Page 29: Prior To Application

    PRIOR TO APPLICATION 1. Operator should familiarize self with area to be seeded and develop a plan to ensure uniform application. 2. Develop a plan for communication between operator and driver of the carrying or towing ve- hicle to signal for start, stop, turn, etc. through the use of the signal horn. 3.

  • Page 30: Application Of Slurry

    APPLICATION OF SLURRY I. GENERAL APPLICATION TECHNIQUES DANGER Do not spray toward power lines, transformers or other high voltage conductors. Failure to comply will result in death or serious injury. CAUTION The driver of the carrying vehicle should remain alert for hazards to the operator, such as low power lines, low hanging branches, etc.

  • Page 31: Pump Take-Off System Or Hose Reel With Remote Valve

    A. PUMP TAKE OFF SYSTEM OR HOSE REEL WITH REMOTE VALVE: 1. Open recirculation valve, close boom discharge valve, and close remote valve at the end of the hose. 2. Engage clutch. When stream is flowing freely through the recirculation line, open the pump take-off valve.

  • Page 32: Hose Work With Radio Remote Transmitter

    C. HOSE WORK WITH RADIO REMOTE TRANSMITTER: 1. Begin with the engine around 1/4 throttle (1,400 RPM). 2. Close recirculation valve. If using an extension hose connected to the discharge boom, open the discharge valve. If using the hose reel, close the discharge valve and open the pump take- off valve to the hose reel.

  • Page 33: Liming With The Hydroseeder

    In using large concentrations of granular solids through the HydroSeeder®, it is advisable to keep the slurry moving through the pump at all times. This keeps the solids from settling in the lines and creat- ing a clog. This unit was designed for the application of agricultural-grade lime or FINN HLL. PROCEDURE 1.

  • Page 34: Troubleshooting Your Hydroseeder

    TROUBLESHOOTING YOUR HYDROSEEDER ® ® Because of the tremendous work load usually placed upon the HydroSeeder , minor malfunctions will occur from time to time. If these are not remedied immediately, they could lead to poor performance and damage to the equipment. This section describes symptoms, possible causes, and the corrective action(s) to take.
  • Page 35 B. If the recirculation system is not working: 1. Disengage (turn off) clutch and shut down engine. 2. Remove two clamps on each side of the recirculation valve. 3. Slide rubber seals back and remove valve assembly. 4. Check valve assembly, recirculation nozzle in the discharge pipe, and the recirculation pipe going into tank.
  • Page 36 TROUBLESHOOTING YOUR HYDROSEEDER ® Problem Probable Causes Suggested Solutions LEAKS: Tank Bearing Lack of lubrication – seal worn Replace seal and follow lube Bolts not tightened schedule. Tighten uniformly to 25 lb-ft (34 N•m). Pressure Pipe Clamps Rubber seal cracked, pinched, Replace;...
  • Page 37 VALVE: Valve stuck Frozen Thaw out ice and lubricate; leave in discharge position during stor- age. Constant plugging during operation Foreign material in slurry Drain and clean out tank; check storage for foreign materials. Constant plugging during loading Loading HydroSeeder® before Reinstruct your operator.

  • Page 38: Cleaning And Maintenance

    CLEANING AND MAINTENANCE AFTER FIRST 4 TO 8 HOURS OF OPERATION 1. Check and adjust clutch. See clutch manual. DAILY: ® 1. Cleaning the HydroSeeder A. Fill slurry tank to center of agitator shaft with clean water. B. Move agitator lever to full speed to flush off inside of tank top and walls. C.

  • Page 39: Seasonal And Winter Storage Maintenance

    5. Check antifreeze in radiator. Add antifreeze as required. 6. Inspect the slurry tank for buildup of residue in the suction area and clear if necessary. 7. Check and clean engine radiator. Flush with clear, low-pressure waterspray and blow dry with compressed air.

  • Page 40: Hydraulic System

    The hydraulic oil filter must be replaced on schedule with a 25 micron absolute filter (FINN part number 011869). The hydraulic system relief is factory set at 3,200 psi (22,063 kPa).
  • Page 41 2. To remove impeller (3), loosen and remove the two victaulic clamps and remove the discharge pipe. Remove twelve bolts (17) that hold pump casing (1) in place. Exercise caution while re- moving the pump casing (1) because it is heavy (approximately 150 lb [68 kg]) and the O-ring (5) can easily be damaged.
  • Page 42 55 Pressure Lubricator Pressure Lubricator (Includes Items #44-46) (includes items 56-58) 17 16 15 NOTE: Item #34 (10¨ Clutch Assembly Kit) Includes Items #35-51) FIGURE 18 CLUMP ASSEMBLY Ref. No. Part Number Description No. Required 012976 Pump Casing 012879-1B Wear Plate 012976-02 Impeller 013131...
  • Page 43 013132 AS568B O-Ring #455 013126 Seal Housing Machining 012733 Seal 013163-01 Clump gasket 013128 Clump Mounting Plate Machining 0WF12SAE 3/4 SAE Flat Washer 10OY12 3/4-10 UNC Hex Nut 00WL12 3/4 Lock Washer 0X1232 3/4-12 UNC HHCS x 2" Lg. 0X1228 3/4-12 UNC HHCS x 1-3/4"...
  • Page 44 LUBRICATION LOCATIONS...

  • Page 45: Lubrication And Fluids Chart

    LUBRICATION AND FLUIDS CHART Ref. No. Location Lubricant Frequency Number Check Clutch Lever Bearings Weekly Grease Agitator Shaft Bearings Daily Check Fuel Level Daily Grease Discharge Swivels Daily Check Engine Oil Level Daily Check Engine Oil and Filter See Engine Manual Grease Pump Bearings See Pump Manual Check Hydraulic Fluid Level...
  • Page 46 NOTES...
  • Page 47 TITAN280 / TITAN330 / TITAN400 HydroSeeder ® Parts Manual Model MMA WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE TITAN MMA2017 Rev. D...
  • Page 48 SEE FUEL TANK DETAIL SEE HATCH DETAIL WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE TITAN MMA2017 Rev. D...

  • Page 49: Structure And Railing

    STRUCTURE AND RAILING Ref. Part Number Description No. Req’d 012919 Rear Right Corner Rail F400-0015 Long Rear Toe Rail 012771 Hand Rail 012918 Rear Guard Rail F400-0012 Left Corner Rear Toe Rail 013149 Swing Gate Weldment 013122 Gate Spring 013150 Rear Corner Guard Rail 013168 Left Rear Rail Extension (TITAN330 and TITAN400)
  • Page 50 SEE FUEL TANK DETAIL SEE HATCH DETAIL WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE TITAN MMA2017 Rev. D...
  • Page 51 FUEL TANK DETAIL STRUCTURE AND RAILING Ref. Part Number Description No. Req’d F400-0030 Boom Holdown 012514 Square U-Bolt for 1-1/2 in. Square Pipe 005613 Square Tubing Plug 012977 Tool Box F400-0002 Main Tank Top F400-0009-03 Narrow Tank Top Support 3 (280) 2 (330) 6 (400) F400-0009-04...
  • Page 52 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE TITAN MMA2017 Rev. D...
  • Page 53 HATCH Ref. Part Number Description No. Req’d 012909 Hatch Lid Weldment 070627 Lid Hinge Weldment 012903 Hatch Liner Weldment 012938 Safety Cross Strap Weldment 012834 Bag Cutter Stainless 002909 Handle 005433 Latch WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE TITAN MMA2017 Rev.
  • Page 54 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE TITAN MMA2017 Rev. D...

  • Page 55: Discharge Boom Assembly

    DISCHARGE BOOM Ref. No. Ref. Part Number Description No. Req’d  12900-01 Boom Stand Pipe  012896 Upper Boom Discharge Weldment  012897 Lower Boom Discharge Weldment  013159 Titan Boom Handle  012888 3 in. Straight Swivel  011914 Black Knob/Set Screw ...
  • Page 56 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE TITAN MMA2017 Rev. D...

  • Page 57: Second Discharge Boom Assembly (Optional)

    SECOND DISCHARGE BOOM ASSEMBLY (OPTIONAL) Ref. Part Number Description No. Req’d 012900-04 Long Boom Connector Pipe 012902 3 in. Stainless Steel Ball Valve 012921 LH Discharge Valve Stand Pipe 002438 3 in. Victaulic Clamp 002439 Clamp Seal 1 Per 002868 3 in.
  • Page 58 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE TITAN MMA2017 Rev. D...

  • Page 59: Engine And Radiator

    ENGINE AND RADIATOR Ref. Part Number Description No. Req’d 013107 Cummins Tier III Engine 013036 Radiator / Charge Air Cooler 055498 Hump Reducer 052022-05 Air Intake Tube 075247 Cobra Elbow 052012 45º Elbow 055367 Hump Adapter 013135 Breather Assembly 013135-M Main Filter 013135-S Safety Filter...
  • Page 60 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE TITAN MMA2017 Rev. D...

  • Page 61: Radiator Parts

    RADIATOR PARTS Ref. Part Number Description No. Req’d CUM11000378 90º Elbow Fitting CUM80000207 Hose Clamp CUM50000491 3/4 in. Heater Hose CUM50000499 3/8 in. Heater Hose (Not Shown) CUM110000827 Fan Guard CUM10000737 Blower Fan CUM3910128 Spacer CUM50000887 Large Charge Air Cooler Tube CUM50000437 Charge Air Cooler Hose 3 in.
  • Page 62 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE TITAN MMA2017 Rev. D...

  • Page 63: Clump. Piping And Discharge Assembly

    CLUMP. PIPING AND DISCHARGE ASSEMBLY Ref. Part Number Description No. Req’d 011727-09 Recirculation Nozzle 011727-10 Recirculation Connector 011727-11 Recirculation Connector 012316 Flange Gasket 012385 6 in. Victaulic Elbow 012726-03 Recirculation Pipe 013145 Titan Clump Assembly 012900-05 Suction Pipe 012083 1-1/4 in. Stainless Steel Ball Valve 012971 Valve Handle 012902...
  • Page 64 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE TITAN MMA2017 Rev. D...

  • Page 65: Clump Assembly

    CLUMP ASSEMBLY Ref. No. Ref. Part Number Description No. Req’d  013134 Titan Clump Casing  012976-02 Impeller  012976-02A Impeller Seal  013132 Titan Clump Casing Seal  013131 Titan Clump Shaft Seal  013126 Seal Housing  160389 3/8 in.
  • Page 66 VIEW A VIEW B VIEW A VIEW B WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE TITAN MMA2017 Rev. D...

  • Page 67: Controls

    CONTROLS Ref. No. Ref. Part Number Description No. Req’d 013022 Handle Extension 013022-02 Top Seal 013022-03 Bottom Seal 013086 Foot Pedal Weldment 013082 Foot Pedal Bushing F400-0035 Control Box Mount 013193 TITAN Control Box 013026 Clutch Lever Mounting Weldment F330-0075 Nozzle Holder 000427 Handle Grip...

  • Page 68: Ground Level Controls

    Pump Key Switch Switch BLU 3 GRN 3 CG 1T ORG/BLK Not Used: BLUE/BK & BRN DO NOT CUT SHORT GROUND LEVEL CONTROLS Ref. Part Number Description No. Req’d 013022 Handle Extension 013022-02 Top Seal 012792 Ground Level Control Box 052076 Ignition Switch 023076...
  • Page 69 This Page Left Blank Intentionally WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE TITAN MMA2017 Rev. D...
  • Page 70 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE TITAN MMA2017 Rev. D...

  • Page 71: Bearing And Seal Assembly

    BEARING AND SEAL ASSEMBLY Ref. No. Ref. Part Number Description No. Req’d  012527 Inner Clamping Ring w/Studs 1 per  012528 Agitator Shaft Seal 2 per  012525 Outer Clamping Ring 1 per  012451 Flangette 1 per  012450 2 in.
  • Page 72 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE TITAN MMA2017 Rev. D...

  • Page 73: Agitator Assemblies

    AGITATOR ASSEMBLIES Ref. Part Number Description No. Req’d 012496-01 Idle Stub Shaft 1 per F330-0010-01 Bolt-On Paddle 2 per 012501-02 Left-Hand Agitator Section (TITAN280) 1 per 012500-02 Left-Hand Agitator Section (TITAN330) 1 per SE0064-03-02 Left-Hand Agitator Section (TITAN400) F330-0010-02 Bolt-On Paddle 2 per 012495-01 Drive Stub Shaft...
  • Page 74 Optional Third Agitator WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE TITAN MMA2017 Rev. D...

  • Page 75: Hydraulic Agitator Drive

    HYDRAULIC AGITATOR DRIVE Ref. Part Number Description No. Req’d 012892 Hydraulic Motor 012881 Auburn Gearbox F400-0008 Torque Arrestor Plate 012522-02 Rubber Bushing 012522-04 Torque Arm Insert 012930 Torque Arm Weldment Reference F400-0019 Coupling Guard 053023 2 in. x 2 in. ID Steel 2 Piece Coupling 012625 Splitcollar 012495-01...
  • Page 76 DETAIL A 12 50 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE TITAN MMA2017 Rev. D...

  • Page 77: Hydraulic System

    HYDRAULIC SYSTEM Ref. Part No. Ref. Number Description No. Req’d  008708 Lenz #20-APC  011932 Lenz #A3405-12-16  012044 Pressure Gauge #CF-5000-25  012086 Lenz #A3105-8-10 (Midstate #6400-08-10)  012087 Lenz #A3105-12-12  012362 Lenz #12 STP Plug  012516 Lenz #A3355-4 45°...
  • Page 78 HYDRAULIC SYSTEM Ref. Part No. Ref. Number Description No. Req’d 012287 2 in. Ball Valve 012881 Auburn Gearbox 012892 Hydraulic Motor 012894 Hydraulic Reservoir 013028 Breather Cap 013048 Hydac Low Pressure Filter Assembly 013117 Rexroth Hydraulic Pump 013119 AKG DC16S-12-TC115 Heat Exchanger 013190 Discharge Flange Pad 013139...
  • Page 79 This Page Left Blank Intentionally WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE TITAN MMA2017 Rev. D...
  • Page 80 DETAIL A DETAIL A WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE TITAN MMA2017 Rev. D...

  • Page 81: Hydraulic System, Third Agitator

    HYDRAULIC SYSTEM, THIRD AGITATOR Ref. Part No. Ref. Number Description No. Req’d  011932 Lenz #A3405-12-16  012086 Lenz #A3105-8-10 (Midstate #6400-08-10)  012088 Lenz #A3105-12-16  013166 Lenz #A3605-12 (Midstate #6803-12-12-12)  013202 Lenz #A3105-10-12  055274 Lenz #A3405-4-4 ...
  • Page 82 DETAIL A DETAIL A WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE TITAN MMA2017 Rev. D...

  • Page 83: Hose Reel Assembly

    HOSE REEL ASSEMBLY Ref. No. Ref. Part Number Description No. Req’d  080302 Flanged Riser  080302G Hose Reel Riser Gasket  008144 Hose Reel Gear  008200 Hose Reel Chain (69 in.)  008433 Pinlock with Brackets Assembly  008313 Idle Side Bearing ...

  • Page 84: Tool Kit

    12 in. Whip Hose W/1/8 in. Male Ends 021375 Grease Gun (Hose Not Included) 012305 Adhesive Label (Removal Aerosol Can) 020365 Multi Puprose Grease 012681A FINN Beige Aerosol Paint 006532 Coupler Gasket 3 in. 041371 3 in. Evertite Dust Cap-Brass 012992 Titan Nozzle Adapter Assembly 002427 Adapter 3 in.

  • Page 85: Spare Parts List

    SPARE PARTS LIST Part Number Description No. Req’d 013028 Hydraulic Reservoir Cap 008705 High Pressure Hydraulic Filter Element 013049 Low Pressure Hydraulic Filter Element CU-LF3970 Oil Filter CU-FF5612 Fuel Filter 023910 Safety Air Filter 023076 Ignition Key 002439 3 in. Victaulic Pipe Gasket 006722 1-1/4 in.
  • Page 86 (Inside of Railing - Both Sides) (Both Sides) (Both Sides) RIGHT SIDE OF UNIT LEFT SIDE OF UNIT (Both Sides) WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE TITAN MMA2017 Rev. D...
  • Page 87 DECALS Ref. No. Part Number Description No. Req'd 012820 TITAN280/TITAN330/TITAN400 Decal Sheet 023174** "FINN" Decal 011595** "HydroSeeder®" Decal 012821 "Fall Hazard" Decal 011793 "3,000 Gallon" Decal (TITAN330 Only) 011792 "2,500 Gallon" Decal 011791 "2,000 Gallon" Decal 011790 "1,500 Gallon" Decal 005188 "1,000 Gallon"...
