NTI SPLITMUX Video Wall Console- 4K Input, 4HD Outputs

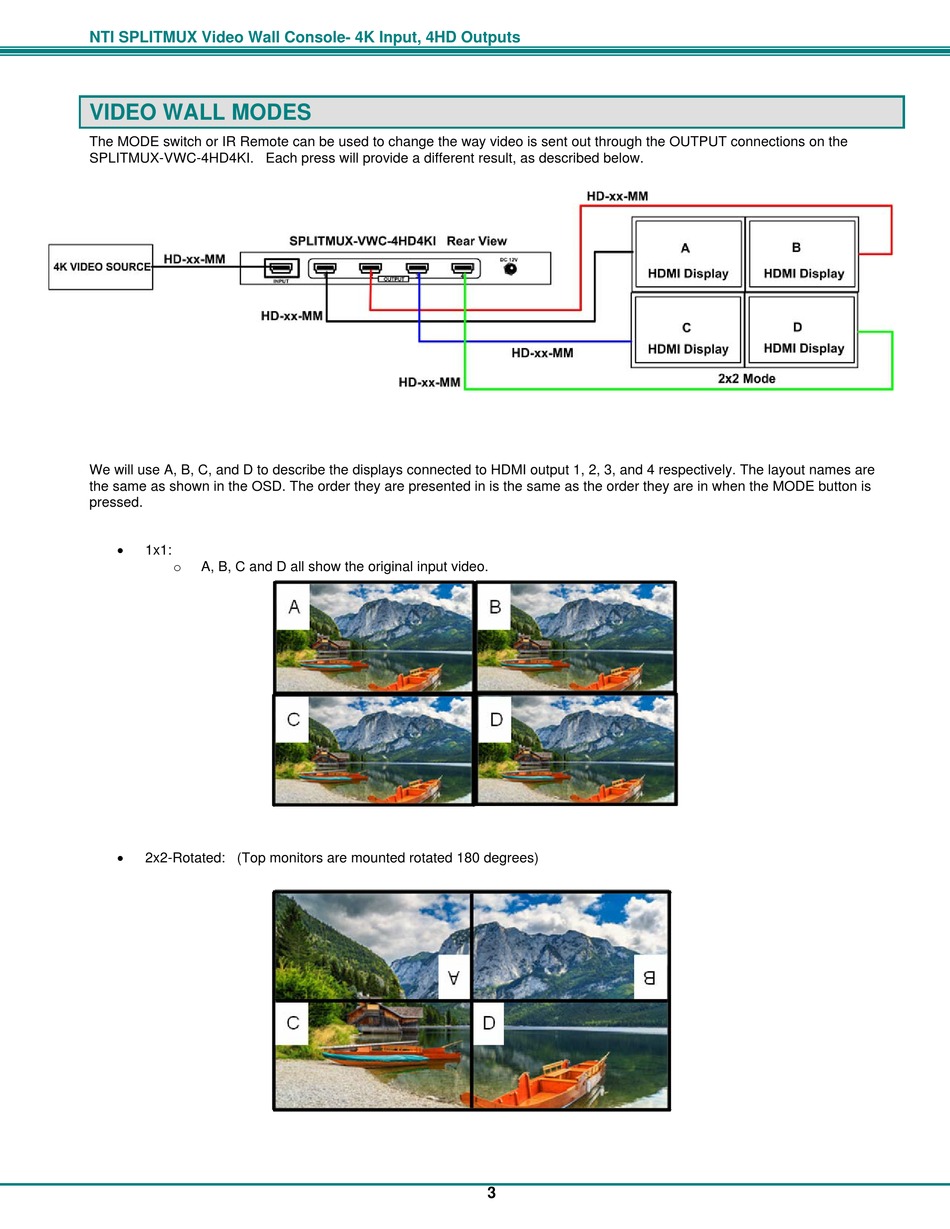

VIDEO WALL MODES

The MODE switch or IR Remote can be used to change the way video is sent out through the OUTPUT connections on the
SPLITMUX-VWC-4HD4KI. Each press will provide a different result, as described below.
We will use A, B, C, and D to describe the displays connected to HDMI output 1, 2, 3, and 4 respectively. The layout names are
the same as shown in the OSD. The order they are presented in is the same as the order they are in when the MODE button is
pressed.

1x1:
A, B, C and D all show the original input video.
o

2x2-Rotated: (Top monitors are mounted rotated 180 degrees)
3
