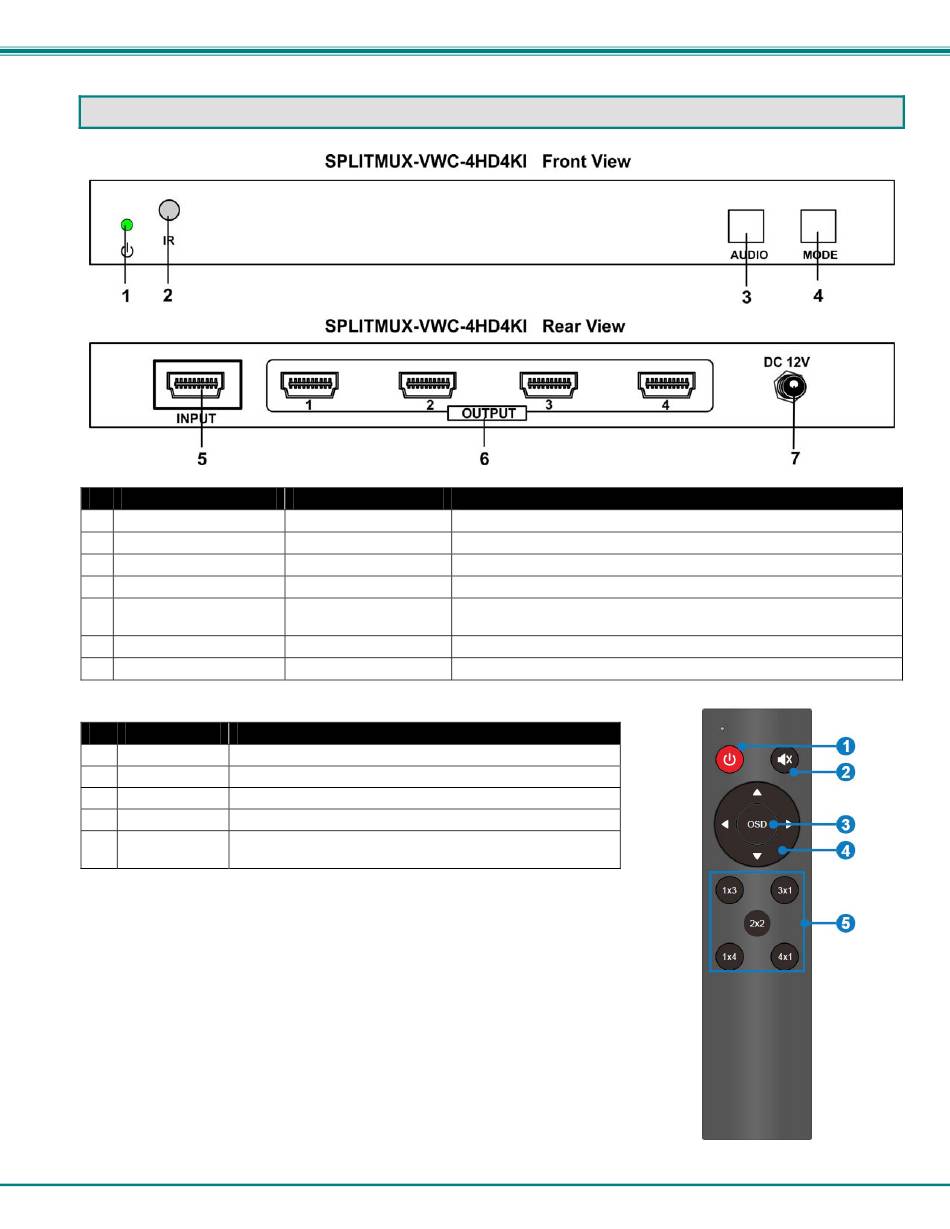

FEATURES AND FUNCTIONS

# LABEL
1 Power Symbol
2 IR
3 AUDIO
4 MODE
5 INPUT
6 OUTPUT (1-4)
7 DC 12V
# BUTTON DESCRIPTON
1 Standby Press to enter/exit standby mode
2 Mute Press to mute/un-mute audio
3 OSD Press to show/hide OSD
4 Navigation Press to navigate in OSD
5 Video Wall Press to select video wall mode. Note: 2x2 button will
Modes toggle between 2x2 mode and 2x2_Rotation mode.
CONNECTOR/LED DESCRIPTION
LED Illuminates green when power is ON
IR-Sensor Receives IR signals from IR Remote
Button For Muting/ Un-muting the audio output
Button For controlling the video wall layout- press to change the mode
HDMI Type A Female For connection to video source- maximum resolution
4Kx2K@60Hz:4:4:4
HDMI Type A Female For connection to displays- maximum resolution 1920x1080p
5.5x2.1 DC Jack For connection of included 12VDC 2A power supply
