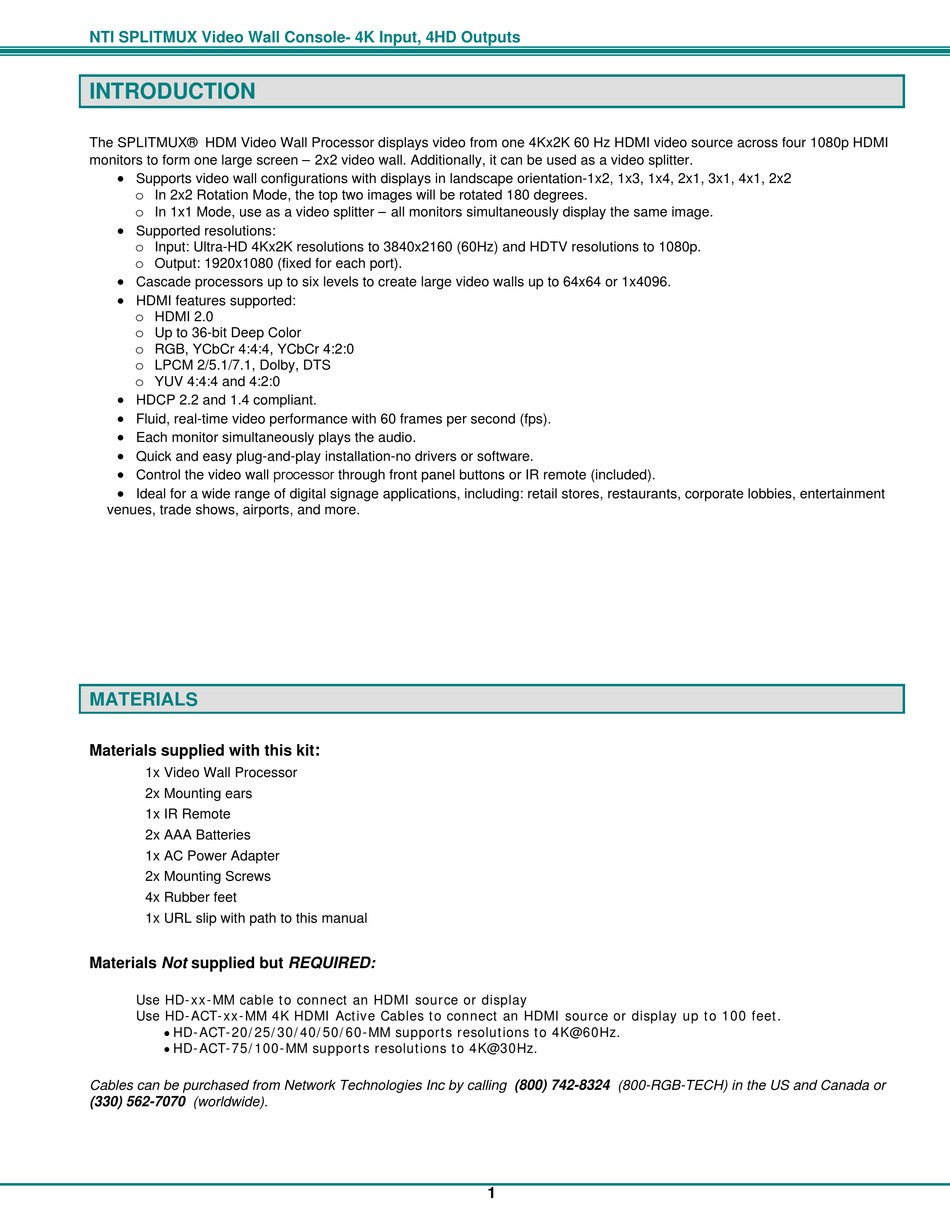

INTRODUCTION

The SPLITMUX® HDM Video Wall Processor displays video from one 4Kx2K 60 Hz HDMI video source across four 1080p HDMI
monitors to form one large screen – 2x2 video wall. Additionally, it can be used as a video splitter.

Supports video wall configurations with displays in landscape orientation-1x2, 1x3, 1x4, 2x1, 3x1, 4x1, 2x2
o In 2x2 Rotation Mode, the top two images will be rotated 180 degrees.
In 1x1 Mode, use as a video splitter – all monitors simultaneously display the same image.
o

Supported resolutions:
o Input: Ultra-HD 4Kx2K resolutions to 3840x2160 (60Hz) and HDTV resolutions to 1080p.
Output: 1920x1080 (fixed for each port).
o

Cascade processors up to six levels to create large video walls up to 64x64 or 1x4096.

HDMI features supported:
o HDMI 2.0
o Up to 36-bit Deep Color
RGB, YCbCr 4:4:4, YCbCr 4:2:0
o
o LPCM 2/5.1/7.1, Dolby, DTS
o YUV 4:4:4 and 4:2:0

HDCP 2.2 and 1.4 compliant.

Fluid, real-time video performance with 60 frames per second (fps).

Each monitor simultaneously plays the audio.

Quick and easy plug-and-play installation-no drivers or software.

Control the video wall processor through front panel buttons or IR remote (included).

Ideal for a wide range of digital signage applications, including: retail stores, restaurants, corporate lobbies, entertainment
venues, trade shows, airports, and more.

MATERIALS

Materials supplied with this kit
1x Video Wall Processor
2x Mounting ears
1x IR Remote
2x AAA Batteries
1x AC Power Adapter
2x Mounting Screws
4x Rubber feet
1x URL slip with path to this manual
Materials Not supplied but REQUIRED:
Use HD-xx-MM cable to connect an HDMI source or display
Use HD-ACT-xx-MM 4K HDMI Active Cables to connect an HDMI source or display up to 100 feet.
 HD-ACT-20/25/30/40/50/60-MM supports resolutions to 4K@60Hz.
 HD-ACT-75/100-MM supports resolutions to 4K@30Hz.
Cables can be purchased from Network Technologies Inc by calling (800) 742-8324 (800-RGB-TECH) in the US and Canada or
(330) 562-7070 (worldwide).
:
1
