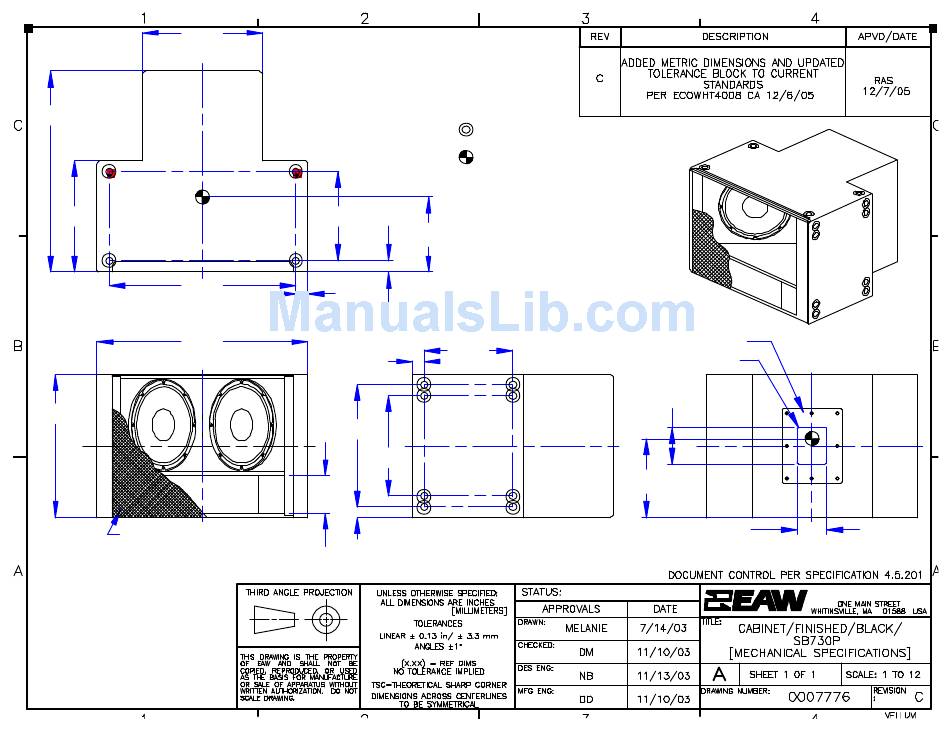

EAW SB730P Dimensions

16.37
[415.92]
L C
27.38
[695.33]
15.19
[385.83]
25.44
[646.18]
DIMENSIONS APPLY TO TOP AND BOTTOM
TOP
28.75
[730.25]
L C
19.50
[495.30]
C L
GRILLE PARTIALLY SHOWN
FRONT
NOTES:
1. SYMBOL INDICATES MOUNTING POINT,
3/8-16 THREADED HOLE (PI ANGLE).
2. SYMBOL INDICATES CENTER OF BALANCE.
3. WEIGHT APPROX. 110 LBS[49.9 Kg]
4. SHIPPING WEIGHT APPROX. 124 LBS[56.2 Kg]
1.59
12.10
[307.37]
[40.46]
10.25
[260.35]
(1.66)
[42.16]
12.10
[307.37]
1.59
[40.46]
16.71
[425.35]
13.70
[348.05]
5.09
[129.29]
RIGHT SIDE
(1.40)
[35.47] DIMENSIONS APPLY TO BOTH SIDES
SB730P
ACCESS PANEL
INPUT
5.00
[127.00]
C L L C
10.75
[273.05]
4.00
[101.60]
PRODUCTION
C L
BACK
EASTERN ACOUSTIC WORKS
