EAW SM129zi Specifications

S M 1 2 9 z i S p e c i f i c a t i o n s
DESCRIPTION
•
Compact 2-way 12-inch Stage Monitor / PA
•
Less than 15 inches high for low profile applications
•
Rubber feet included for floor mounting
•
Passive EQ and crossover for economical single amplifier operation
•
Foam-backed steel grille for physical and dirt protection

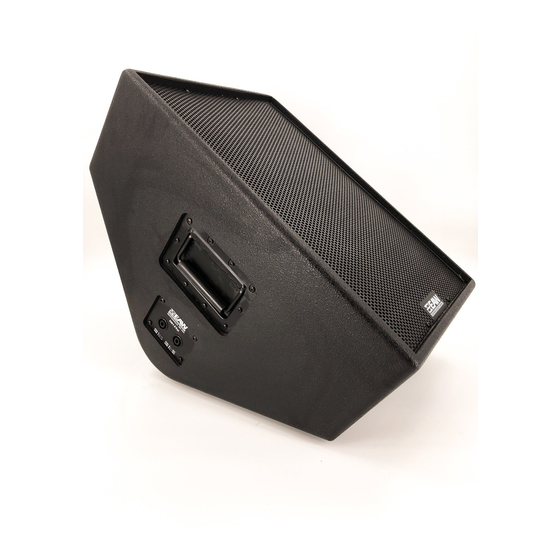

(foam not shown in photo)
The SM129zi is a compact, professional loudspeaker designed for
dual-purpose stage monitor and PA use. Its 12-inch low frequency
transducer provides strong LF performance while keeping a small
enclosure size for situations with limited space. The smooth HF
response and high output capability cuts through stage sound for
quality monitoring and provides good projection for PA use.
The low profile and compact size are ideal for situations where small
physical size is needed,
performance. Integral mounting points accept a third-party, external,
stand adapter for pole mounting, such as the K&M™ 195/8 or
Ultimate Support™ BMB-200K.
Portable usage is enhanced by the heavy-duty enclosure
construction, foam-backed steel grille, and integral handles. The
connector panels on each side have dual jacks for reliable input and
loop through connections.
Applications include use as a stage monitor or as a PA loudspeaker
for band PA, TV productions, corporate events, theatres, houses of
worship, and live music clubs.
Six year warranty.
1 To achieve specified performance, the listed external signal processing with EAW-provided settings is required.
2 For recommendations to select power amplifier size refer to : "HOW MUCH AMPLIFIER POWER DO I NEED?" on the EAW web site.
EAW products are continually improved. All specifications are therefore subject to change without notice.
without sacrificing professional
Eastern Acoustic Works One Main Street Whitinsville, MA 01588 tel 800 992 5013 / 508 234 6158 fax 508 234 8251 www.eaw.com
2-WAY FULL-RANGE MONITOR
See NOTES TABULAR DATA for details
CONFIGURATION
Subsystem
Transducer
LF 1x 12 in cone
HF 1x 1 in exit, 1.75 in voice
coil compression driver
Operating Mode
Amplifier Channels
Single-amp LF/HF
1
PERFORMANCE
Operating Range 73 Hz to 20 kHz
Nominal Beamwidth
Horz 90°
Vert 45°
Axial Sensitivity (whole space SPL)
LF/HF 96 dB
Input Impedance (ohms)
Nominal
LF/HF 8
High Pass Filter
High Pass =>65 Hz, 12 dB/octave Butterworth
2
Accelerated Life Test
LF/HF 60 V
Calculated Axial Output Limit (whole space SPL)
Average
LF/HF 123 dB
ORDERING DATA
Description
SM129zi 2-Way Full-Range Monitor Black
Optional Accessories
None
group · G
Loading
Vented
Constant directivity horn
External Signal Processing
HPF
73 Hz to 20 kHz
Minimum
6.5 @ 170 Hz
450 W @ 8 ohm
Peak
129 dB
Part Number
0008926
Part Number: RD0305 (A) SM129zi May 2005
