Summary of Contents for EAW NT Series

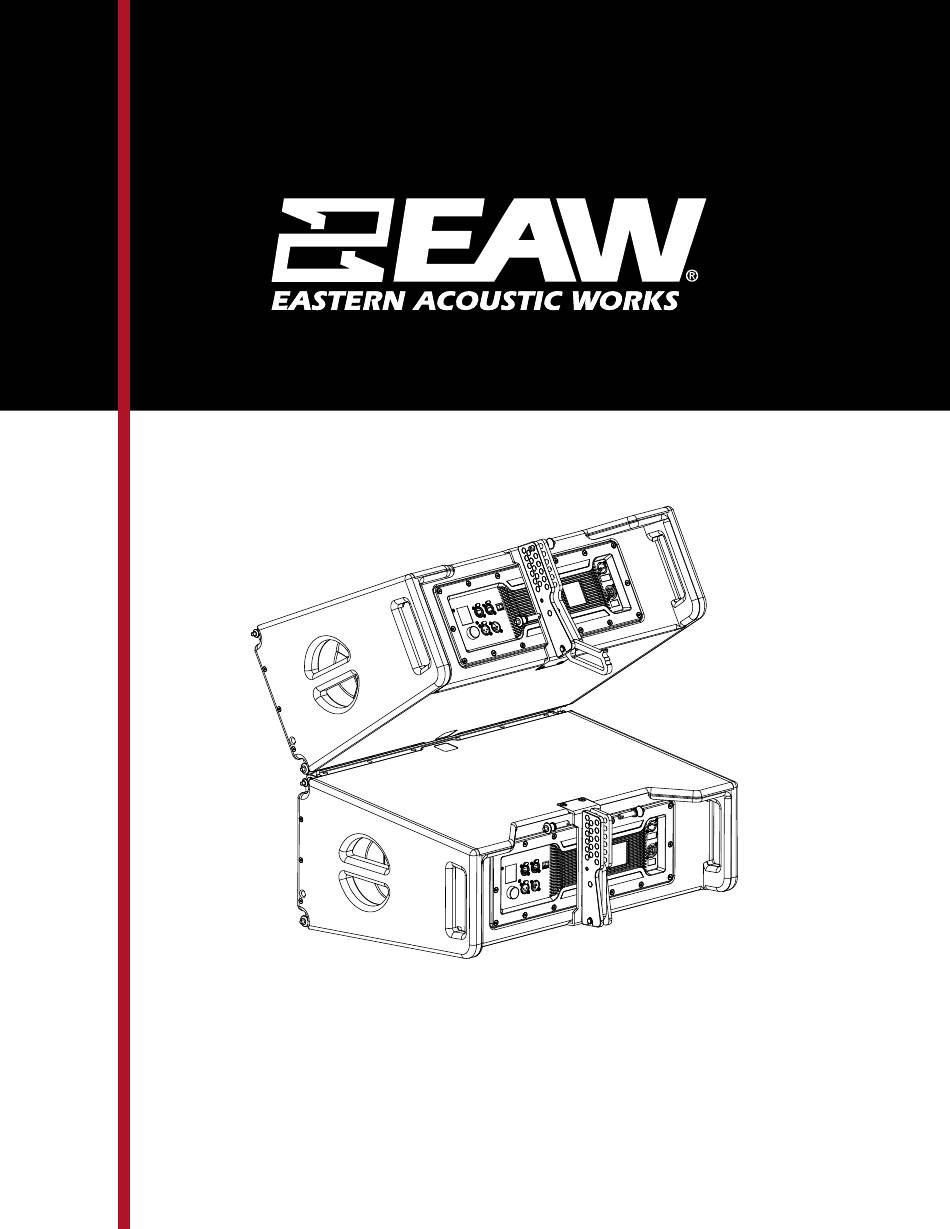

  • Page 1 NT Series Rigging Guide...
  • Page 2: Safety Instructions

    Safety Instructions Read and heed all warnings and safety instructions in this manual before using this product. Failure to follow these precautions may result in damage, injury, or death. 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions.
  • Page 3 sicurezza hardware e dovrebbero tentare di sospendere gli altoparlanti in testa. La mancata osservanza di queste precauzioni può provocare danni, lesioni o morte. Advertencias de suspensión ADVERTENCIA: La suspensión de cualquier cosa, especialmente por encima de las personas, se debe hacer con mucho cuidado.
  • Page 4 Table of Contents ..........................................3 NTX210L Walkaround ........................................ 4 SBX218 Walkaround ........................................4 SBX118 Walkaround ........................................5 Rigging Assemblies / Rigging Pins ..................................6 Handles ............................................6 Using EAW Resolution 2 ......................................7 Rigging Instructions ........................................8 Service, Inspection & Maintenance ................................... 14...
  • Page 7 Always use EAW Resolution to verify the structural integrity of the array you intend to suspend. The ONLY exception to this is with the pre-defined, pre-approved array configurations provided later in this manual.
  • Page 8 EAW Resolution™ 2 is a tool to assist sound system designers and engineers to select, configure, and implement EAW loudspeaker products. Resolution™ 2 predicts direct sound pressure level (SPL) in a ‘virtual’ venue. Signal processing can be applied in software, and the resulting frequency response calculated for ‘virtual microphones’...

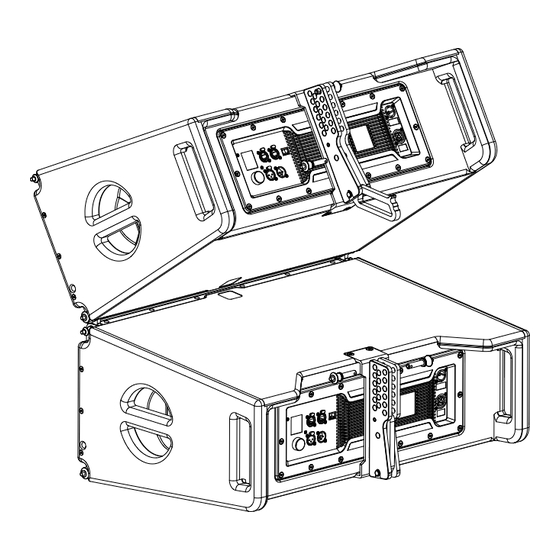

  • Page 9 The assembly of two NTX modules can be done following the steps below: • On the first module, remove the pins [3], raise the retractable brackets [2] and fasten them to the new position using the pins [3]. • Remove the pins [1] from the second module, place it on top of the first module, inserting the brackets [2] as shown. Then fasten the front side of the two modules using the pins [1] of the second module.
  • Page 10 The below example explains two cases in which you want to set a specified angle between two modules using the rear rigging. Before carrying out any other operation, make sure that once the movable arm is inserted [6], the hole of the chosen angle is contained inside the loop as shown.
  • Page 11 For quick installation, the following optional accessories can be purchased: • Fly-bar for the flown and stacked use for line arrays of NTX210L modules. • A cart to transport up to 4 NTX210L modules. NTX210L Flybar NTX Flybar using one shackle/pick point NTX Flybar using two shackles/pick points The assembly of an NTX210L module to an NTX Flybar can be done following the steps below: •...
  • Page 12 Pin NTX210L using pin on the groundstack adapter to secure cabinet to rigging. NT Series Array Transition Bar To array an SBX118F subwoofer with NTX210L line array loudspeakers, the NT Series transition bar is needed. Follow the steps outlined below to build the array.
  • Page 13 • Connect any additional SBX118F using the same four rigging points as used previously by the flybar. • To rig NTX210L to array, start by pinning transition bar to the first NTX210L and set splay angle using angle and locking pin. •...
  • Page 14 Additional NTX line array cabinets may be added by following the steps outlined at the top of Section 10 on page 22. Carts, casters and caster pallets available for NT Series Products • The NTX Cart can transport up to 4x NTX line array items.
  • Page 15 SBX218 & SBX118F castor pallets may transport up to 2 subwoofers. Castor kits are available and may be utilized directly on SBX subwoofers. All components in the NT Series systems are designed to withstand the most rigorous and demanding environments. Through regular operation it may still be necessary to replace acoustical, electronic and mechanical components.
  • Page 16 Eastern Acoustic Works 19 National Drive Franklin, MA 02038 tel 800 992 5013 / +1 508 234 6158 www.eaw.com ©2024 Eastern Acoustic Works All rights reserved. Products are not drawn to scale. All terms, conditions, and specifications subject to change without notice.
