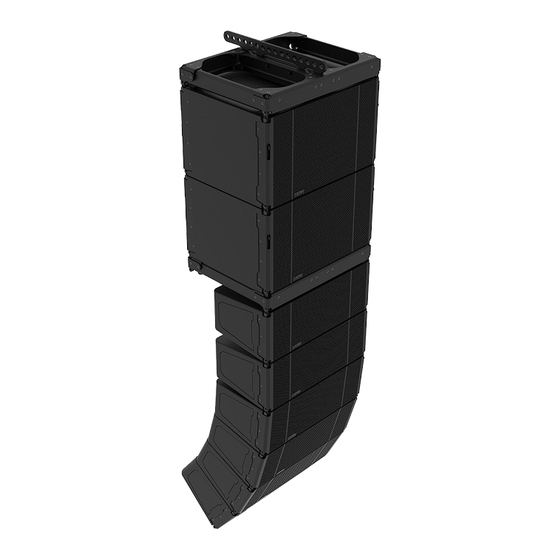

EAW SB Series Application Manual

EAW SB Series Application Manual

Line array

Advertisement

Line Array
Application Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EAW SB Series

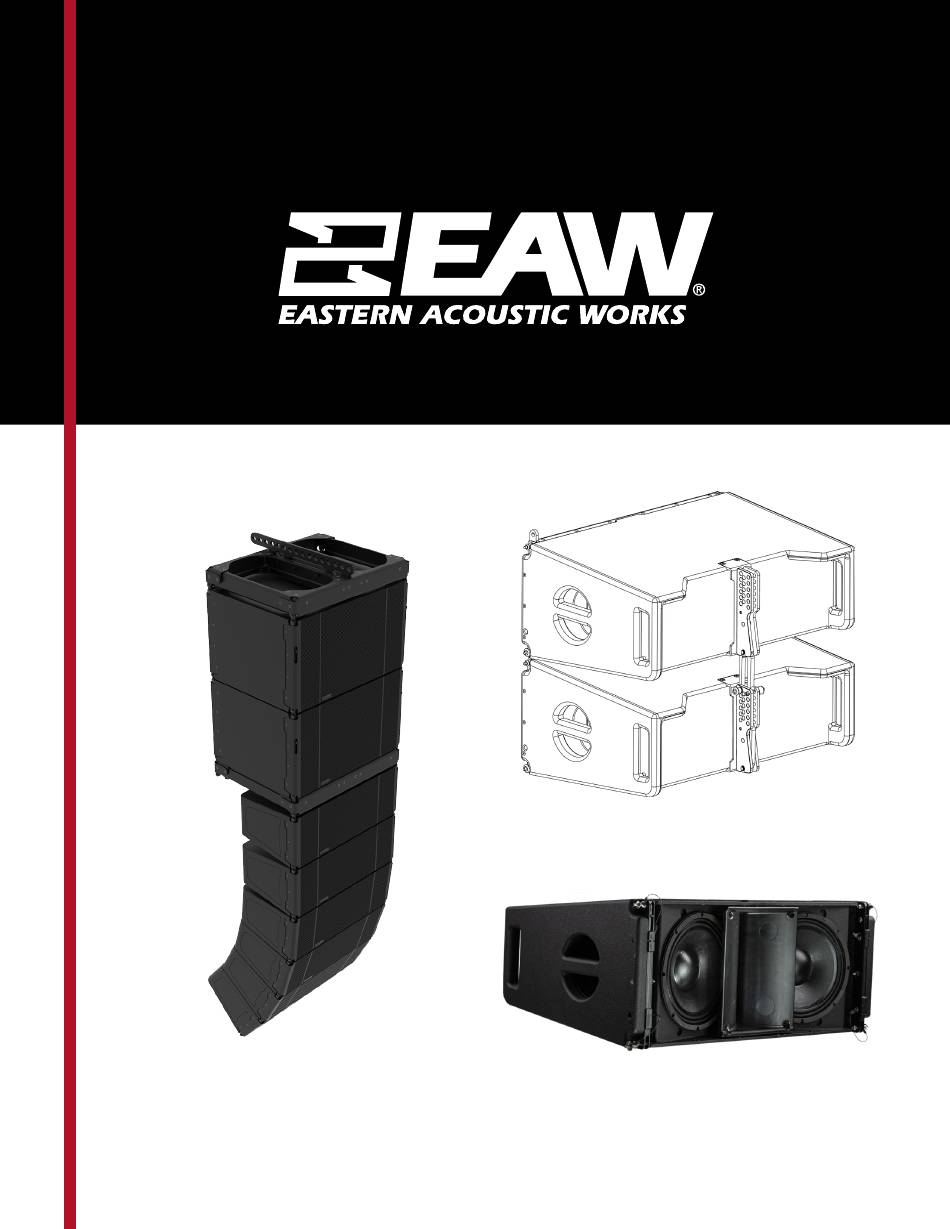

  • Page 1 Line Array Application Guide...
  • Page 2 Resolution Users will need to perform the following 2 help file. general tasks to properly put an EAW line source product into use. This manual includes Using EAW Resolution™ details for each task. EAW Resolution is the key to determining 1.
  • Page 3 Line Array Application Guide EAW Passive Line Array Products - KF810P Symmetry of Sources Symmetrical arrangement Phase Aligned LF Tuned of acoustic sources along spacing of LF components to a common axis for utmost extend pattern control without consistency throughout the need for enormous horns.
  • Page 4 Line Array Application Guide EAW Passive Line Array Products - KF810P Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 5 Line Array Application Guide EAW Passive Line Array Products - SB818P|F Retractable Rigging 18in Premium Transducer For groundstack With wicked long excursion configuration 5.3in voice coil driver Cable Chases On front and back conceal wiring and rigging for clean look...
  • Page 6 Line Array Application Guide EAW Passive Line Array Products - SB818P|F Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 7 Line Array Application Guide EAW Passive Line Array Products - KF210 CONFIGURATION Subsystem Transducer Loading 2x10" cone, 2.5" VC Vented 1x1.4" exit, 3" VC compression drivers Isophasic Wave Guide Operating Mode Amplifier Channels External Signal Processing Single-amp LF/HF DSP w/EAW Focusing™ & DynO™...
  • Page 8 Line Array Application Guide EAW Passive Line Array Products - KF210 Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 9 Line Array Application Guide EAW Passive Line Array Products - SB818 CONFIGURATION Subsystem Transducer Loading 1x18", 4" VC Vented Operating Mode Amplifier Channels External Signal Processing Single-amp DSP w/EAW DynO™ PERFORMANCE Operating Range 25hz-120hz Nominal Beamwidth Horz: 360° Vert: 360°...
  • Page 10 Line Array Application Guide EAW Passive Line Array Products - SB818 Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 11 8x KF810P-80 line items. It is quite clear how much more directive the vertical has become in this image and if we continue to add modules to the array, the effect will become more pronounced. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 12 125Hz across this listening area. If directivity at lower frequencies is required for the application, array length must be considered. Pairing with EAW UXA4416 Power Amplifier Below are the recommended configurations when using UXA4416 with line array products...
  • Page 13 Line Array Application Guide SB818P|F MODEL CHANNEL AMPLIFIER UXA4416 KF210 - Bi Amped MODEL CHANNEL AMPLIFIER UXA4416 Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 14 +/- to MF/HF into a Phoenix connector (which can then plug into the KF810P input). It's possible to loop 2 more cabinets in the same manner using Loop Thru. 3-Way, Bi-Amp (LF, MF/HF) FOCUSING Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 15 (NOTE: Pin 2 +/- will be unused). When using bi amp, plug into UXA4410 outputs 1 & 3, then directly into the cabinet. It's possible to loop 3x more cabinets in either mode. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 16 Line Array Application Guide Using UXA4416 Power Amplifier It is required to use an EAW amplifer with any EAW line array products. Important processing such as limiting, FIR filters, and DYNO (Dynamic EQ) is prudent to the loudspeakers performance. Tel 800 992 5013 / +1 508 234 6158...
  • Page 17 • Long press goes to HOME screen 9. MENU Button Open amplifier MAIN MENU. 10. Removable grille with dust filter behind 11. Mains Overload LED indicates an overload on the mains voltage. 12. Metal Handles Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 18 18. LAN1 & LAN2 Connect the amplifier for configuration, control and monitoring purpose. RJ 45 connectors. 19. Dante Primary and Secondary Ports 20. Four digital signal output O1-O4 Stereo digital outputs on XLR connectors 21. Power Output two outputs on each speakon connector Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 19: Analog Inputs

    AES/EBU DIGITAL INPUTS D1/2 - D3/D4 • Pin 1 : Ground • Pin 2 : D1/2 - D3/4 Stereo Signal + • Pin 3 D1/2 - D3/4 Stereo Signal - Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 20 Outputs WARNING! RISK OF ELECTRIC SHOCK. WARNING! CLASS 3 WIRING IS MANDATORY FOR THIS EQUIPMENT Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 21: Connector Specifications

    UXA4416 features 4 Gigabit Ethernet network ports, managed by a high-performance switch compliant with IEEE802.1. LAN ports 1 & 2 support EAW control protocols, while LAN Ports 3 & 4 support DANTE networked audio. In order to operate both control and DANTE, an ethernet cable will need to be conntected to each of the designated LAN ports.
  • Page 22 LAN is determined by IPv4 protocol. A secondary switch or VLAN must be deployed and configured in a similar manner to another LAN port on the device. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 23 Two dry contacts. It warns of a unit’s GENERAL FAULT. The details of the fault will be shown in the dedicated fault screen. Operating modalities: • Normally Open (NO) • Normally Closed (NC) Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 24 Network Configuration menu item under the View menu. To discover amplifiers on the network Resolution must connect to the network. Start by clicking Network > Connect. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 25 Adding an Offline Amplifier To add a UXA4416 to the system, click on the “+” symbol next to Processors & Amplifiers in the Project Explorer window. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 26 A name for this amplifier can also be entered here. Click “OK” once complete. The offline UXA4416 will be added to the model, showing up in the network view area and added to the Project Explorer list. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 27 Network View amplifier. Both devices will now be in sync. If Cancel is selected then no settings will be overwritten and the two amplifiers will not be connected. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 28 It may also be possible that the settings, such as speaker models, stored in an old file are not available with the latest firmware. Try editing the offline amplifier. Or, try adding the online device and choosing options that are similar to the old settings. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 29 Greybox. 8. Input/Output Color Indicators: The colored bars at the bottom of the meter bank show the association between input and output channels. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 30 Usually, these settings include HPF, Array Size, and Air Loss. Additional options include Voicings and a Speaker Model refinement if the greybox is designed for a speaker family. Click Apply when finished. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 31 Note that if a BI amplified greybox is loaded, both input channels will be joined. (AB & CD). Inputs A & B correspond to the top NL4 connector on the amplifier back panel, whereas C & D correspond to the bottom connector. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 32 When using Analog, ensure that AES/EBU enable is turned off. Inputs A1-A4 will be available and selectable in the routing section. Digital inputs D1-D4 will be greyed out, as not available, since they share the same connector as Analog A3-A4.shown as greyed out Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 33 Under AES/EBU Link Outputs it’s possible to assign an input source to a digital output. On the Input Source line, select a signal to send to the corresponding digital output. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 34 Click on the Dante Tab to assign inputs to available Dante channels Double click under Input Name to rename the input, then select an available channel by clicking on the pencil edit button next to the Dante Channel dialog. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 35 Auto Select (AES Presence) – select the main input if an AES signal is detected. This option is only available when digital inputs are enabled and a digital input is selected on Main. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 36: Audio Meters

    Show button beside the Routing Mode selection for the channel. When online, the diagram shows the currently selected input (thick red line) based on the Routing Mode setting. Audio meters are also shown at sample points along the signal flow. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 37: Firmware Updates

    Click Select File and find the UXA4416 firmware update file. Any device in the list that can accept the firmware file will become selectable. Click the checkbox next to the UXA4416 amplifier. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 38 Once the firmware update starts it should not be stopped. The green progress bar will proceed to 100% as it uploads a number of files. After the files have been sent, the update process will complete on the amplifier. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 39 The amplifier will remain locked out. When this happens, you must restart the firmware update process by selecting the update file and amplifier and proceeding with the update. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 40 Rigging Hardware Integrated 2-point rigging Flybar 2042596 Flybar Amp Distro Rack [FB Rack] Caster Pallet 2072324 UXR Caster Pallet Gang Bracket 2072493-90 UXR Gang Bracket Kit UXR REAR PANEL VIEW Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 41 Use the pins connected to the flybar to secure in place. Using the same integrated rigging on the side of the cabinet, a second UXR amp rack may be flown under the first rack. UXR Amp Rack Flybar Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 42 Position the brackets on the inside edges of both racks. Line up the pin holes of the brackets with those on the cabinets. Secure by pinning the bracket to the racks. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 43 Line Array Application Guide Securely pin the brackets to the rack Gang plates shown here on both the front and rear of UXR Racks Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 44 Rigging Hardware and Accessories Rigging EAW loudspeakers will invariably require hardware not supplied by EAW. Various types of load-rated hardware are available from a variety of third-party sources. There are a number of companies specializing in manufacturing hardware for, designing, and installing rigging systems.
  • Page 45 Position per Resolution 2 software. STINGER • Place flybar assembly on top of SB818P|F and use M8 X 30 bolts w/flat and lock washer to rig front and rear positions. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 46 Do so by laying the frame on a surface, then lowering SB818P|F array and attach using M8 X 22 bolts w/flat and lock washer to rig front and rear positions. NOTE: Orientation of KF810P adapter “Z” hole needs to be located to the rear of the array. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 47 To connect a second KF810P, repeat the same process but with M8 X 22 threaded bolt w/ flat and lock washers on front rigging. Repeat this process to use desired KF810P amount in array (see Resolution for array limitations). Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 48 Select 0 deg (“Z”) position on rear rigging and use M10 bolt w/flat washers and lock nut to secure. • Attach shackle (¾ “) to desired stinger position and raise array (Use Resolution for optimal position). • Place second KF810P on surface underneath array and lower. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 49 The quantity recommendations below are for general purposes, providing a balanced system for most music applications. Quantities may need to be adjusted up or down for specific situations. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 50 • Place the first KF810P on top of frame, and secure front rigging with M8 x 22 bolts w/flat and lock washers (See Resolution for ground-stack limitations). Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 51 Place frame on the ground. “Z” hole needs to be orientated towards the front of intended array. • Place the first KF810P on top of frame, and secure front rigging with M8x22 bolts w/flat and lock washers. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 52 Repeat this process to add additional KF810Ps, with rigging arm on KF810P beneath (See Resolution for ground-stack limitations). NOTE: Refer to chart on KF810P rigging or Resolution for KF810P to KF810P rigging angles. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 53 [4] of the first module. The next page shows in detail the fastening of the angle on the rear between the two modules. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 54 LOCK” position and release module B. This way, module B is completely blocked by the two pins on the rear. After assembly is completed, always make sure that all the pins have been completely inserted and are locked. Rear Rigging Assembly Plate Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 55 Raise rigging ears on KF210 and align to flybar holes. • Insert front rigging pins on both sides. • Align and lock into place rigging plates on flybar to rear rigging assembly on KF210 module. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 56 KF cabinet. • Using the three-point rigging, set splay angle and pin on the groundstack adapter (See below) Pin Holder Label Angle Lock Label Pin Locater Label Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 57 To array an SB818 subwoofer with KF210 line array loudspeakers, the KF Series transition bar is needed. Follow the steps outlined below to build the array. • Connect the KF Series flybar to the first SB818 in the array using the 4 rigging points. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 58 • To rig KF210 to array, start by pinning transition bar to the first KF210 and set splay angle using angle and locking pin. • Connect NTX210L to front points on the bottom of SBX118F, and the two transition bar rigging points to rear points. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 59 49. KF210 & SBX818 Carts • The KF210 Cart can transport up to 4x KF210 line array items. • SB818 Carts can transport up to 2x SB818 subwoofers Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 60: Warranty

    Line Array Warranty Application Guide These EAW products were designed and engineered at our headquarters in Whitinsville, MA USA and go through multiple quality checks during manufacturing. We guarantee our loudspeakers against defects in workmanship, materials and against malfunctions for a period of 6 years from date of delivery.
