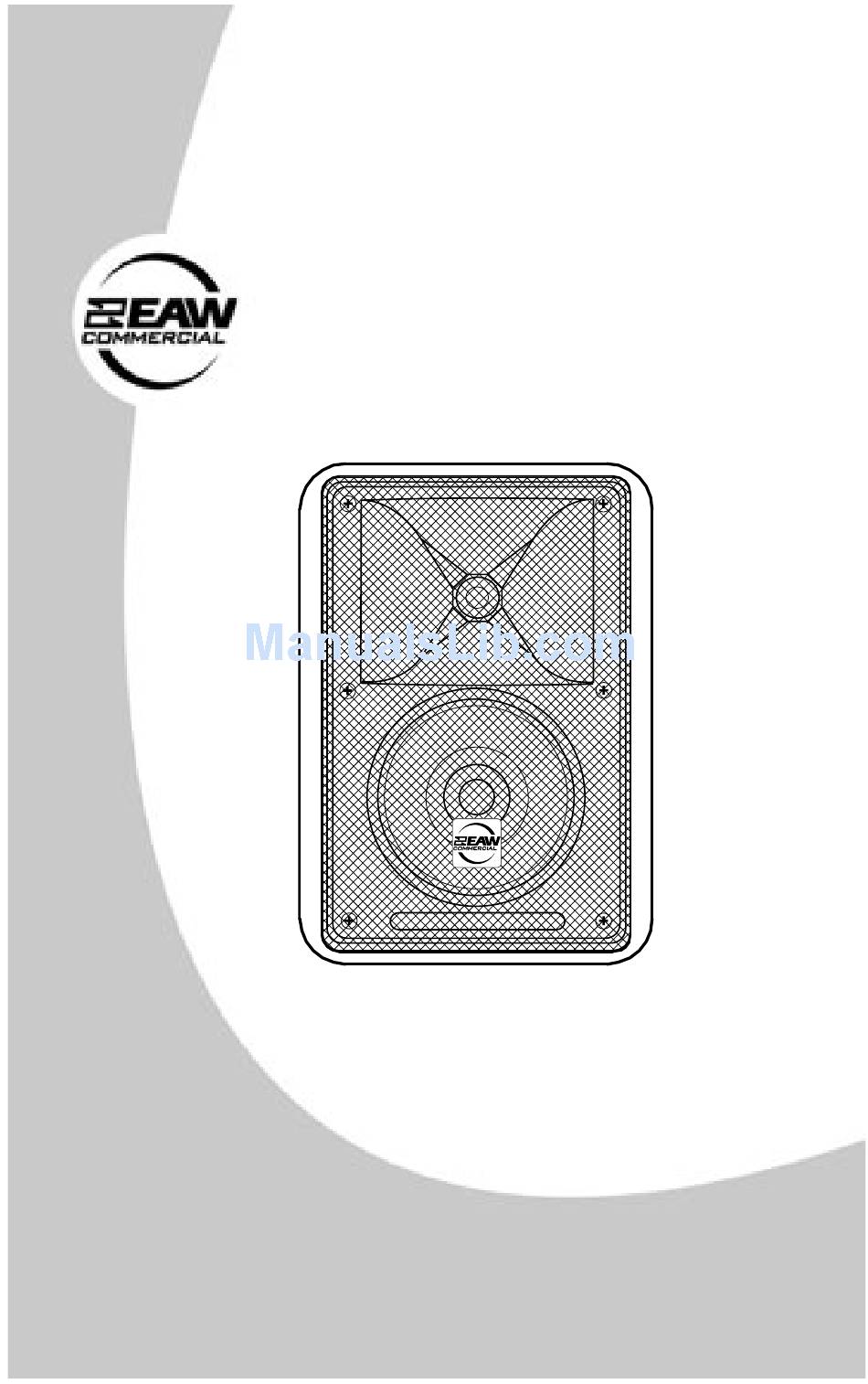

- Page 1 INSTRUCTION MANUAL Compact Two-Way Loudspeaker...
-
Page 2: Safety Instructions

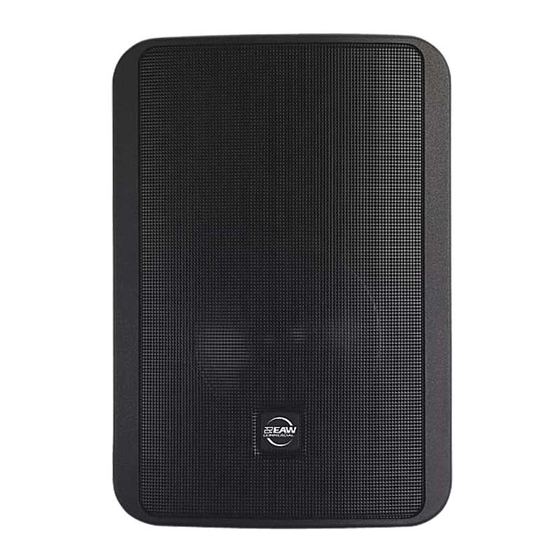

All repairs should be made by qualified service technicians. 1.6. Installation — Do not install this EAW Commercial product in any way that is not provided for in the instruction manual. 1.7. Respect the Safety Standards — The entire sound system must be designed in compliance with the current standards and laws regarding electrical systems. - Page 3 • Articulated surface mount hardware included 3. INTRODUCTION The SMS4 and SMS4W are a compact two-way loudspeaker system designed for constant- voltage. The 5” (130 mm) carbon fiber woofer, in combination with a 0.5” (13 mm) mylar dome tweeter mounted on a 110° x 110° constant directivity horn, provide natural, smooth sound reproduction, ideal for use in business music systems and indoor/outdoor background music applications.
- Page 4 The special hexagonal shape of the cabinet makes it possible to position the speaker in various way, as shown in the figure. The EAW Commercial plate on the front protective grille can be rotated to adapt it to the position of the speaker. The speaker body has...
-
Page 5: Specifications
2 The specifications provide three power values, which are determined by submitting the speaker to a series of laboratory tests lasting two hours each. In the test for Applicable Power, pink noise is applied in the operating range of the speaker, and the signal is filtered at the ends of the band with a 12 dB/octave slope. -
Page 6: Service Information
8. SERVICE INFORMATION In the event that your SMS4 or SMS4W should require servicing, please follow these instructions: 1. Call EAW Commercial Tech Support at 1-888-337-7404, 7 am to 5 pm PST (Monday-Friday), to verify the problem and obtain a Return Authorization (RA) Number. Be sure to have the serial number of the unit when you call. - Page 7 Warranty: LOUD Technologies Inc. requires its authorized EAW Commercial distributors to abide by the following warranty terms for all EAW Commercial brand products (all dates are from the date of delivery from an Authorized EAW Commercial Distributor to the end user/installation site): Loudspeakers –...
- Page 8 EAW Commercial | One Main Street | Whitinsville, MA 01588 USA TEL toll free within US/Canada 888.337.7404 | TEL outside US 425.892.6503 | FAX 425.485.1152 www.eawcommercial.com © 2004 LOUD Technologies Inc. All Rights Reserved. EAW Commercial is a registered trademark of LOUD Technologies Inc.
