Quasar Science R2 Quick Start Manual page 9

Local
Manual Mode
Data
Data: Off / Wireless: Off
Lead/Follow - Wired
Wired Leader
Data
Data: Green / Wireless: Off
Wired Follower
Data
Data: Cyan / Wireless: Off
Lead/Follow - Wireless
Wireless Leader
Data
Data: Green / Wireless: Purple
Wireless Follower
Data
Data: Cyan / Wireless: Purple
*Check Status Lights are enabled in Config

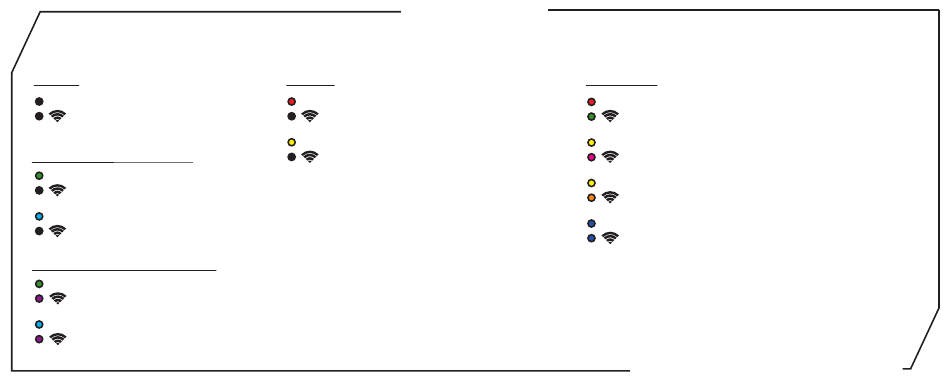

Status Lights
Wired
DMX Mode / Data Received
Data
Data: Red / Wireless: Off
Ethernet Mode / Data Received
Data
Data: Yellow / Wireless: Off
**For Blink Pattern definition, view the full manual
Wireless
Wireless DMX
Data
Data:Red / Wireless: Green (Or Universe Color)
WiFi Mode (Art-Net over WiFi)
Data
Data: Yellow / Wireless: Magenta
WiFi Access Point Mode (Art-Net over WiFi)
Data
Data: Yellow / Wireless: Orange
Bluetooth Mode
Data
Data: Blue / Wireless: Blue
