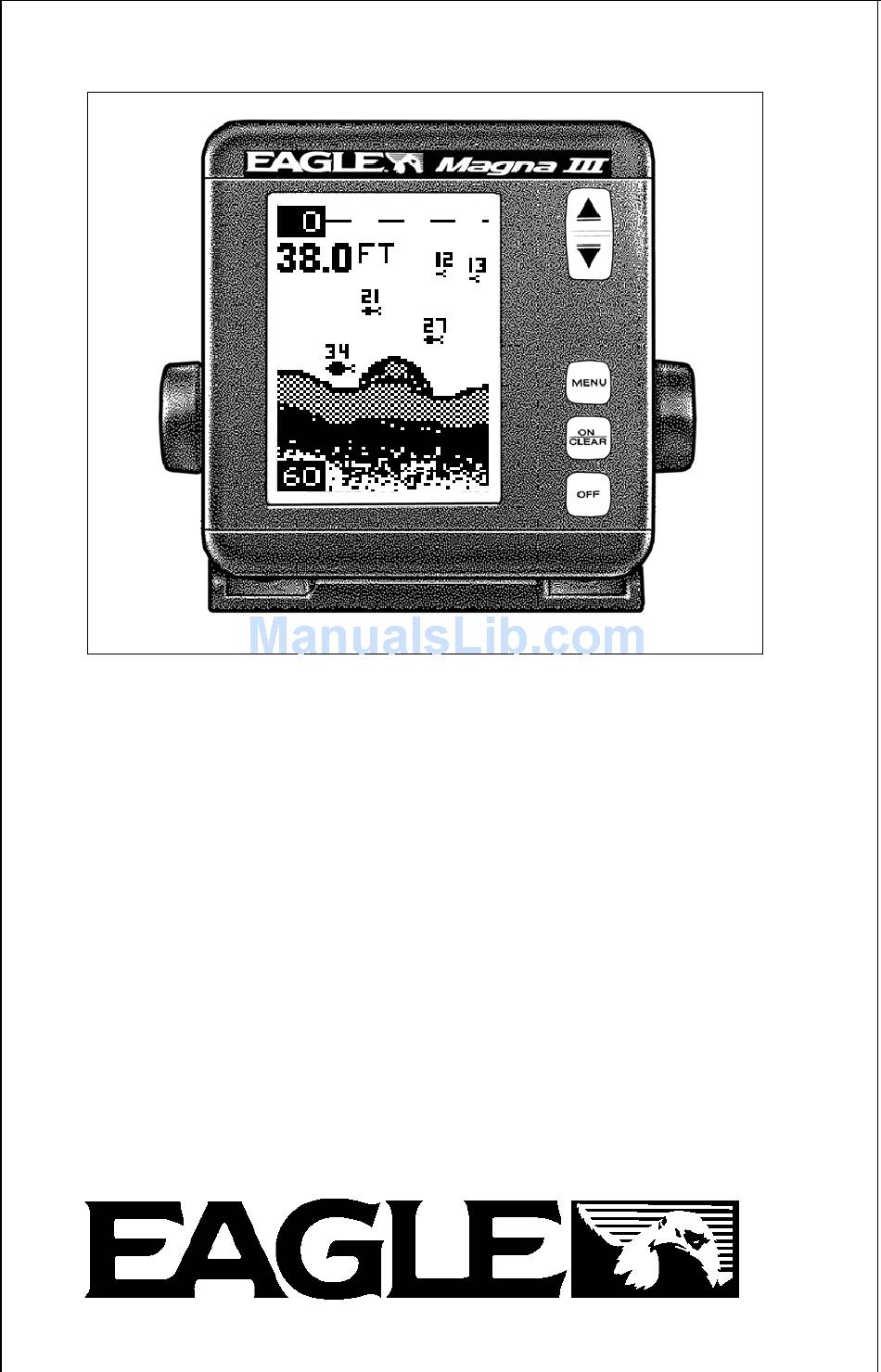

Eagle III Installation And Operation Instructions Manual

Eagle magna iii sonar: operation instruction.
Hide thumbs

Advertisement

Magna III
Magna III
Magna III
Magna III
Magna III
Magna III Plus
Magna III Plus
Magna III Plus
Magna III Plus
Magna III Plus
INSTALLATION AND OPERATION
and
and
and
and
and
INSTRUCTIONS
1
TM

Advertisement

   Related Manuals for Eagle III

   Summary of Contents for Eagle III

  • Page 1

    Magna III Magna III Magna III Magna III Magna III Magna III Plus Magna III Plus Magna III Plus Magna III Plus Magna III Plus INSTALLATION AND OPERATION INSTRUCTIONS...

  • Page 2: Table Of Contents

    INTRODUCTION ... 3 SPECIFICATIONS ... 3 INSTALLATION ... 4 INSTALLATION - Bracket ... 4 POWER CONNECTIONS ... 5 SPEED/TEMP SENSOR (MAGNA III PLUS ONLY) ... 6 MAGNA III PORTABLE ... 7 TRANSDUCER ... 9 KEYBOARD BASICS ... 10 DISPLAY ... 10 OPERATION ...

  • Page 3: Introduction, Specifications

    INTRODUCTION Thank you for purchasing an Eagle sonar. Your Magna or Magna III Plus is a high quality sonar designed for both professional and novice fisher- men. These units have an automatic feature that finds and displays the bottom, fish, structure, and more! All you have to do is press the on key.

  • Page 4: Installation, Installation - Bracket

    INSTALLATION - Bracket You can install the Magna III on the top of a dash or from an overhead with the supplied bracket. It can also be installed in the dash with an optional IDA-3 mounting kit. If you use the supplied bracket, you may be interested in the optional GBSA-1 swivel bracket kit.

  • Page 5: Power Connections

    POWER CONNECTIONS The Magna III works from a 12 volt DC system only. For the best results, run the power cable directly to the boat’s battery. Keep the power cable away from other boat wiring, especially the engine’s wires. This will give the best isolation from electrical noise.

  • Page 6

    SPEED/TEMPERATURE SENSOR INSTALLATION - (Magna III Plus Only) Mount the speed/temp sensor on the boat’s transom in a location where the flow of water is the smoothest. There should be a minimum of turbulence and air bubbles in the chosen location. The port (left) side of the transom is preferred, however, the starboard (right) side can be used if necessary.

  • Page 7: Magna Iii Portable

    After installing the batteries, close the case and plug the power cable on the battery case into the Magna III Portable. Plug the adapter cable into the back of the sonar unit. Turn the sonar unit on. If it doesn't work, make certain the battery terminals are making good contact against the battery contacts.

  • Page 8

    In cold weather the efficiency of dry cell batteries drops with the tempera- ture. We find it a good idea to have the Magna III Portable good and warm along with the batteries before we leave home. If the batteries do lose a charge, you can sometimes restore them by placing them in a warm room or car interior.

  • Page 9: Transducer

    Magna III. Your portable sonar is now ready for use. HULL PERMANENT MOUNT TRANSDUCER INSTALLATION The HS-WSBK supplied with your Magna III is a transom mount trans- ducer. It can be installed on any outboard or stern-drive (inboard\outboard) powered boat. It can also be permanently installed inside the boat to "shoot-through"...

  • Page 10: Keyboard Basics, Display

    DISPLAY - General The lights flash for about ten seconds when the Magna III is turned on. Three menus appear, one after the other. The menus are the lights (LAMP), feet-meter selection (FEET/METER), and contrast adjustment (DARK/LIGHT).

  • Page 11: Operation, Menus, Automatic, Range

    OPERATION MENUS The Magna III and Magna III Plus use menus to guide you through the unit’s functions and features. The menu key accesses these features, allowing you to customize the unit to your particular needs and water conditions. All you have to do to leave one menu and enter another is press the menu key repeatedly.

  • Page 12: Zoom

    ON/ CLEAR key to clear the display. If you wait a few seconds, it will automatically clear. The Magna III and III Plus have the following ranges: 10, 20, 40, 60, 120, 240, 480, and 900 feet.

  • Page 13

    5, 10, 20, 30, 50, 100, and 150 meters. Zoom - Manual Operation To operate the zoom feature when the Magna III is in the manual mode, first press the menu key. Then press the down arrow key in the RANGE/ZOOM menu to place the Magna in the zoom mode.

  • Page 14: Sensitivity, Grayline

    The Magna III adjusts the sensitivity level to keep a solid bottom signal on the screen. It adds a little extra when it’s in the automatic mode. This gives it the capability to show fish and other detail.

  • Page 15

    If you reach the maximum or minimum level, a tone sounds alerting you to the limits. The level chosen by the Magna III when it’s first turned on is usually adequate for most conditions. Experiment with your unit to find the Grayline setting that’s best.

  • Page 16: Fish Track, Chart Speed

    The Fish ID feature can’t be used when the Magna III is in the manual mode. If you turn the automatic feature off, the Fish ID feature will automatically be turned off, also. FISH TRACK™ The Magna III automatically displays the depth of a target when the Fish ID feature places a fish symbol on the screen as shown below.

  • Page 17: Display Mode

    DISPLAY MODE The Magna III has three different screen modes. The Magna III Plus has six. To change modes, press the MENU key until the “DISP MODE” (Display Mode) menu appears. Then press the up or down arrow keys until the desired mode number appears.

  • Page 18

    DISPLAY MODE - MAGNA III PLUS ONLY CHT 1 (Chart #1) This is the default mode used when the Ma- gna III Plus is first turned on. It has the following features: 1. Automatic On 2. Fish ID Feature On 3.

  • Page 19

    The digital temperature, speed, and log shows beneath the depth. The log starts counting when the Magna III Plus is first turned on. When the Magna III Plus is turned off, the log is reset to zero.

  • Page 20: Alarms

    ALARMS FISH ALARM The Fish Alarm sounds a tone when a fish symbol appears on the screen. To use the fish alarm, press the menu key until the “FISH ALARM” menu appears on the screen. Now press the up arrow key to turn the alarm on. Repeat the above steps to turn the fish alarm off.

  • Page 21: Back Light, Feet/meter, Display Contrast

    ALARM” menu to adjust the deep alarm. When the bottom signal goes deeper than the setting, an alarm tone sounds. LIGHTS The Magna III and Magna III Plus’ display is backlighted for night use. To turn the back- lights on or off, press the menu key repeat- edly until the LAMP menu appears.

  • Page 22: Asp (advanced Signal Processing), Simulator

    ON/CLEAR key to clear the screen. ASP (Advanced Signal Processing) ASP is a program embedded in the Magna III’s computer that is specifically designed to eliminate noise. It continually monitors the signals from the receiver, determines which echoes are noise and rejects them.

  • Page 23: Transducer Cone Angles

    The angle between the outside edges of the cone is the cone angle. Eagle offers a choice of transducers with either an 8 or 20 degree cone angle. The transducer supplied with the Magna III has a 20 degree cone angle.

  • Page 24: Surveying A Lake, Fish Arches

    The most efficient way to become acquainted with a body of water is to survey it with your Magna III Start with a map of the lake, if possible, and indicate the promising spots in relation to landmarks on shore. Keep a few marker buoys in the boat, ready to toss overboard.

  • Page 25: Water Temperature And Thermoclines

    The easiest way to do this on the Magna III is with the Zoom feature. This feature expands the echoes, making it easier to see detail. For the best results, turn the sensitivity up as high as possible without getting too much noise on the screen.

  • Page 26

    Many times bait fish will be above the thermocline while larger game fish will suspend in or just below it. The Magna III can detect this invisible layer in the water, but the sensitiv- ity will probably have to be turned up to see it.

  • Page 27: Troubleshooting

    IMPORTANT INFORMATION! If your unit is not working, or if you need technical help, please use the following troubleshooting section before contacting the factory customer service department. It may save you the trouble of returning your unit. TROUBLESHOOTING Unit won’t turn on: 1.

  • Page 28

    3. The water may be deeper than the sonar’s ability to find the bottom. If the sonar can’t find the bottom signal while it’s in the automatic mode, the digital will flash continuously. It may change the range to limits far greater than the water you are in.

  • Page 29

    With the boat at rest in the water, the first thing you should do is turn all electrical equipment on the boat off. Make certain the engine is off, also. Turn your Magna III on, then turn off ASP (Advanced Signal Processing). There should be a steady bottom signal on the display. Now turn on each piece of electrical equipment on the boat and view the effect on the sonar’s display.

  • Page 30

    in shallow water, or when the boat is at rest. In nearly all cases, the cause of the malfunction will be the location and/or angle of the transducer. The face of the transducer must be placed in a location that has a smooth flow of water at all boat speeds.

  • Page 31: Warranty

    EAGLE ELECTRONICS FULL ONE-YEAR WARRANTY “We", “our”, or “us” refers to EAGLE ELECTRONICS, a division of LEI, the manufacturer of this product. “You” or “your” refers to the first person who purchases this product as a consumer item for personal, family, or household use.

  • Page 32

    United States, use the enclosed UPS shipping label for easy, free shipping to our factory customer service department. There are six easy steps: 1.Call Eagle at the toll-free number on the front of this flyer for a Return Authorization (RA) number and instructions about what accessories to return.

  • Page 33: Accessory Ordering Information

    This UPS shipping offer is good only in the continental United States (excludes Alaska and Hawaii). Eagle Electronics may find it necessary to change or end our shipping policies, regulations, and special offers at any time. We reserve the right to do so without notice.

  • Page 34

    Customer Service Department, the missing item(s) will be shipped directly to you free of charge. DISPLAY UNIT RUBBER WASHER RUBBER WASHER GIMBAL KNOB GIMBAL KNOB GIMBAL BRACKET TRANSDUCER, POWER CABLE BRACKET, HARDWARE FUSE SPEED/TEMP SENSOR FUSE HOLDER (Magna III Plus models Only)

  • Page 35: How To Obtain Service

    How to Obtain Service (Canadian Customers Only) We back your investment in quality products with quick, expert service and genuine Eagle replacement parts. If you need service or repairs, contact the Eagle Factory Customer Service Department at the toll-free number listed below. A technician may be able to solve the problem and save you the inconvenience of returning your unit.

  • Page 36: Eagle Electronics Po Box

    Your unit is covered by a full one-year warranty. (See inside for complete warranty details.) If your unit fails and the failure is not covered by the original warranty, Eagle has a flat-rate repair policy that covers your unit and accessories packed with the unit at the factory. There is a 180-day warranty on all non-warranty repairs from the factory, which is similar to the original warranty, but is for 180 days rather than one year.
