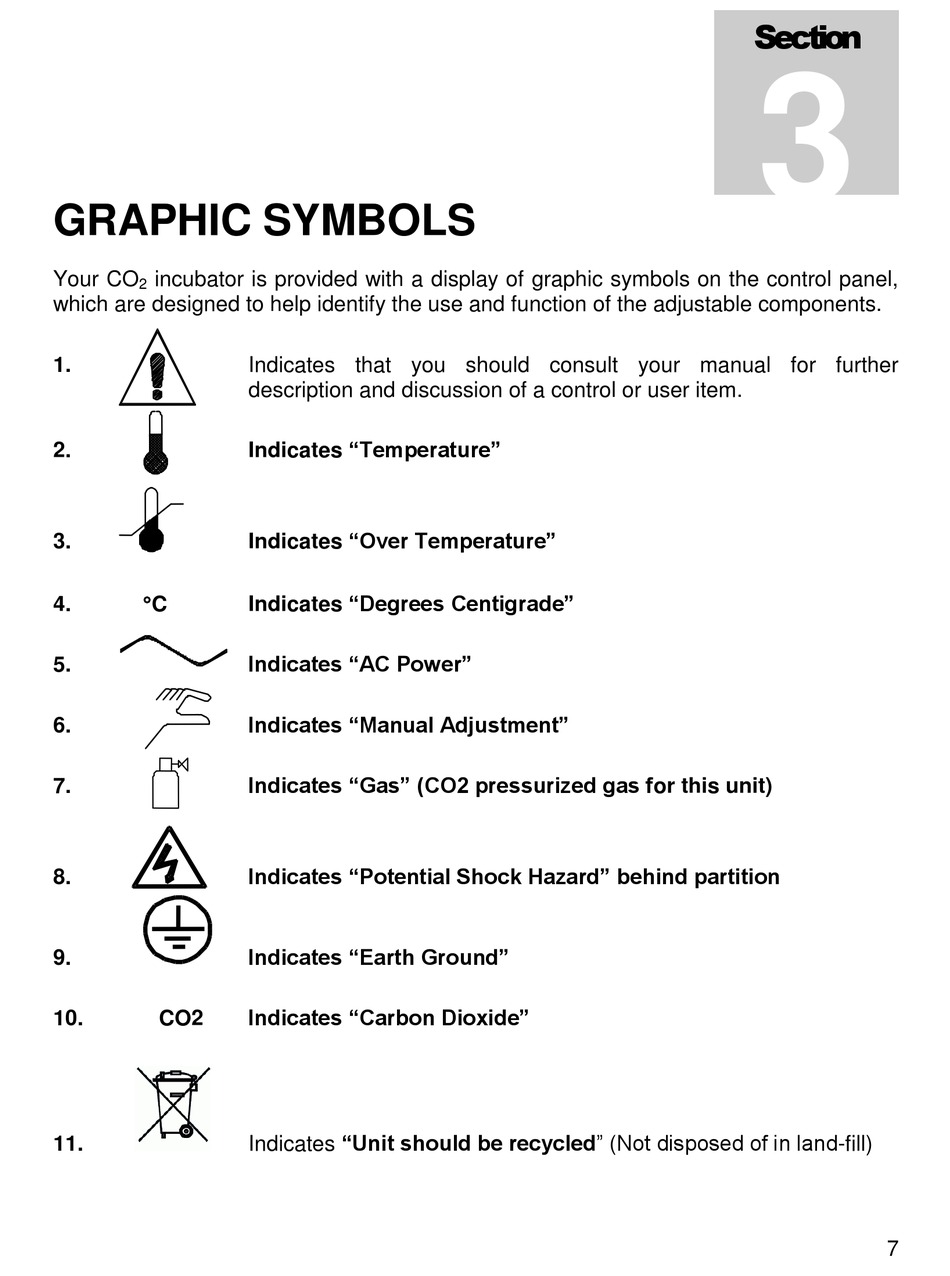

GRAPHIC SYMBOLS
Your CO incubator is provided with a display of graphic symbols on the control panel,
2
which are designed to help identify the use and function of the adjustable components.
1.
2.
3.
C
4.
5.
6.
7.
8.
9.
10. CO2
11.
Indicates that you should consult your manual for further
description and discussion of a control or user item.
Indicates "Temperature"
Indicates "Over Temperature"
Indicates "Degrees Centigrade"
Indicates "AC Power"
Indicates "Manual Adjustment"
Indicates "Gas" (CO2 pressurized gas for this unit)
Indicates "Potential Shock Hazard" behind partition
Indicates "Earth Ground"
Indicates "Carbon Dioxide"
Indicates "Unit should be recycled" (Not disposed of in land-fill)
Section
3
7
