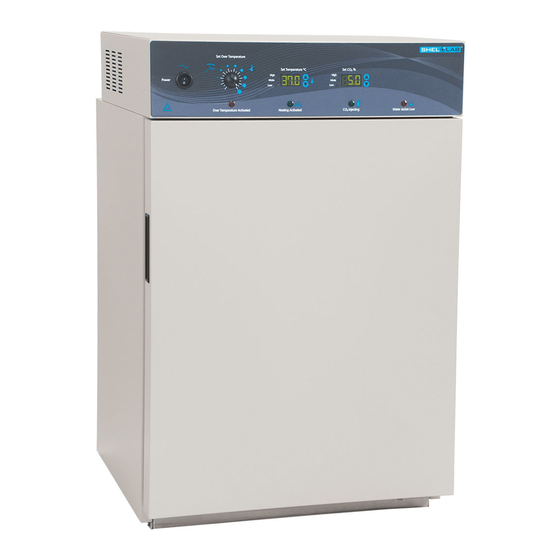

- Page 1 ECONOMY WATER-JACKETED CO INCUBATOR 110 – 120 Volts Installation - Operation Manual SCO6WE...
- Page 2 W arning: This product contains chemicals, including triglycidyl isocyanurate, known to the State of 4 8 T 4 8 T California to cause cancer as well as birth defects or other reproductive harm. For more information, go to w ww.P65Warnings.ca.gov 3 3 T 3 3 T ¡...
- Page 3 110 – 120 Voltage Part Number (Manual): 4861748 Revision: April 14, 2020 SHEL LAB is a brand of Sheldon Manufacturing, INC, an ISO 9001 certified manufacturer. Safety Certifications These units are TÜV listed as water jacket incubators for professional, industrial, or educational use where the preparation or testing of materials is done at an ambient air pressure range of 22.14 –...
-
Page 4: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ................................. 7 Read this Manual ..................................7 Safety Considerations and Requirements ........................7 Contacting Assistance ................................8 Manufacturing Warranty ..............................8 Engineering Improvements..............................8 Gas Supply ..................................9 Reference Sensor Devices ..............................10 RECEIVING YOUR UNIT ............................11 Inspect the Shipment ................................ - Page 5 Calibrate the CO Display ..............................50 Anode and Water Quality ..............................54 UNIT SPECIFICATIONS ............................55 Weight ..................................... 55 Dimensions .................................... 55 Max Shelves For Unit ................................. 56 Capacity ....................................56 ......................................56 Temperature ..................................56 Power ...................................... 56 PARTS LIST ................................57 Accessories ...................................
- Page 6 TABLE OF CONTENTS P a g e...
-
Page 7: Introduction
INTRODUCTION Thank you for purchasing a SHEL LAB incubator. We know you have many choices in today’s competitive marketplace when it comes to constant temperature equipment. We appreciate you choosing ours. We stand behind our products and will be here if you need us. -
Page 8: Contacting Assistance
Therefore, some changes, modifications, and improvements may not be covered in this manual. If your unit’s operating characteristics or appearance differs from those described in this manual, please contact your SHEL LAB dealer or customer service representative for assistance. -
Page 9: Co 2 Gas Supply
INTRODUCTION Note: A CO gas regulator must be purchased separately from the incubator. UPPLY Supply Required The incubator must be connected to a carbon dioxide gas supply system in order to establish and maintain a CO -enriched incubation chamber atmosphere. The supply can be a building CO gas system or a supply cylinder (tank). -
Page 10: Reference Sensor Devices
INTRODUCTION EFERENCE ENSOR EVICES Must be purchased separately Reference sensor devices or a combined device are required for calibrating the incubator temperature and CO displays. Reference devices must meet the following standards: Accurate to at least 0.1°C • Temperature Accurate to at least 0.1% CO •... -
Page 11: Receiving Your Unit
RECEIVING YOUR UNIT NSPECT THE HIPMENT When a unit leaves the factory, safe delivery becomes the responsibility of the carrier. • Damage sustained during transit is not covered by the manufacturing defect warranty. • Save the shipping carton until you are certain that the unit and its accessories function •... -
Page 12: Orientation Photo
RECEIVING RIENTATION HOTO SCO6WE Back of Unit Back of Unit Side of Unit Fuse in Cord Inlet Water Jacket Ports Sample Port and USB Port Fill Port Siphon Port Anode Top Gas In Port Control Panel Side of Unit Access Port... -
Page 13: Record Data Plate Information
RECEIVING ECORD LATE NFORMATION The data plate contains the unit model number, serial number, and part number. Customer Support will need this information during any support call. Record it below for future reference. The data plate is located on the inside of the incubation chamber door in the top right corner. •... - Page 14 RECEIVING 14 | P a g e...
-
Page 15: Installation
INSTALLATION NSTALLATION ROCEDURE HECKLIST For installing the unit in a new workspace location. Pre-Installation Verify a CO gas supply source suitable for your application is available and can be connected to the incubator, page 9. Check that the required ambient conditions for the unit are met, page 16. -
Page 16: Required Ambient Conditions
INSTALLATION EQUIRED MBIENT ONDITIONS These units are built for use indoors at room temperatures between 15°C and 30°C (59°F and 86°F), at no greater than 80% Relative Humidity (at 25°C / 77°F The ambient temperature should not change by 2°C (3.6°F) or more during operation. Operating outside these conditions may affect the incubator temperature performance. -
Page 17: Power Source Requirements
INSTALLATION OWER OURCE EQUIREMENTS When selecting a location for the unit, verify each of the following requirements is satisfied. Power Source: The power source must match the voltage and amperage requirements listed on the unit data plate. This unit is intended for 110 – 120 volt, 50/60 Hz applications at 6.0 amps. The wall power source must be protective earth grounded. -
Page 18: Lifting And Handling
INSTALLATION IFTING AND ANDLING The unit is heavy. Use appropriate lifting devices that are sufficiently rated for these loads. Follow these guidelines when lifting the unit. Lift the unit only from its bottom surface. • Doors, handles, and knobs are not adequate for lifting or stabilization. •... -
Page 19: Install The Incubator
INSTALLATION NSTALL THE NCUBATOR Install the unit in a workspace location that meets the criteria discussed in the previous entries of the Installation section. EIONIZED AND ISTILLED ATER Do not use deionized water to clean the unit, even if DI water is readily available in your laboratory. Use of deionized water may corrode metal surfaces and is not covered by the •... -
Page 20: Install The Chamber Ceiling Air Duct
INSTALLATION NSTALL THE HAMBER EILING Note: Exercise caution to avoid striking the sensors and blower fan wheel on the chamber ceiling when installing the duct. Note: The incubator must be turned off and unplugged when carrying out this procedure. Install the ceiling air duct to ensure the even flow of air throughout Chamber Ceiling Air Duct the incubation chamber space. -
Page 21: Shelving Installation
INSTALLATION HELVING NSTALLATION Install the shelving in the incubation chamber. Install the shelf standard rails. • Align the keyhole slot of the standard with the mounting peg on the side of the chamber wall. • Mount the shelf standard. Install the shelf slides. •... -
Page 22: Connect To The Co Supply
INSTALLATION ONNECT TO THE UPPLY Note: See page 9 for CO supply requirements. to Chamber Dual-Stage CO Optional Tubing Kit Connects to 3/16” Pressure Regulator with Inline HEPA Filter (4.76mm) ID Tubing “IN” Connect the supply source to the incubator. Do not initiate a flow of CO to the incubator at this time. -
Page 23: Access Port Stopper
INSTALLATION CCESS TOPPER Each incubator ships with a silicone stopper installed in the access port located on the right side of the incubation chamber interior. The stopper should always be installed inside the chamber to obtain the • best temperature uniformity and prevent condensation from forming inside the port. - Page 24 INSTALLATION 24 | P a g e...
-
Page 25: Graphic Symbols
GRAPHIC SYMBOLS The unit is provided with graphic symbols on its exterior. These identify hazards and adjustable components as well as important notes in the user manual. Symbol Definition Consult the user manual Consulter le manuel d'utilisation Temperature display Indique l'affichage de la température Over Temperature Limit system Thermostat température limite contrôle haute AC Power... - Page 26 SYMBOLS Symbol Definition Potential shock hazard Risque de choc électrique Recycle the unit. Do not dispose of in a landfill. Recycler l'unité. Ne jetez pas dans une décharge. Indicates water level low Indique faible niveau d'eau Indicates CO Indique gaz CO2 Indicates the incubator heater is active L'élément chauffant est la production de chaleur 26 |...
-
Page 27: Control Panel Overview
CONTROL PANEL OVERVIEW Control Panel Power Switch Power is supplied when the switch is in the ( I ) ON position. Over Temperature Limit This graduated dial sets the mechanical heating cut off for the Over Temperature Limit system (OTL). The OTL helps prevents unchecked heating of the chamber in the event of an electronics failure or external heat spike. - Page 28 CONTROL PANEL OVERVIEW Set CO Display and Controls Shows the current concentration of CO as a percentage of the incubation chamber atmosphere. The display has a range of OFF (0%) to 20% and an accuracy of 0.1%. The display shows “LO” until the CO sensor registers a concentration in the chamber greater than 0%.
-
Page 29: Operation
OPERATION HEORY OF PERATION Heating When powered, the incubator heats to and maintains a user-selected target setpoint in the incubation chamber. The incubator senses the chamber air temperature using a solid-state probe mounted on the chamber interior wall. When the incubator detects that the chamber temperature has dropped below the target setpoint, it pulses power to heating elements on the surface of the water-jacket insulation space and in the outer chamber door. - Page 30 OPERATION Atmosphere The incubator also controls and maintains the gas concentration of CO in the chamber atmosphere by operating an internal injection solenoid valve connected to a gas input port. The incubator monitors CO concentration level in the chamber using an infrared sensor located in the recirculation duct.
-
Page 31: Put The Incubator Into Operation
OPERATION From a cold start, the incubator requires 12 hours to come up to and stabilize at temperature Note: and humidity levels prior to loading samples. Stabilization safeguards samples. UT THE NCUBATOR INTO PERATION Perform the procedures below after the unit has been installed in a new workplace location. These prepare the incubator for normal use. - Page 32 OPERATION Continued from the previous page. Run the unit for at least 12 hours (for example, overnight) with chamber doors closed prior to: Setting the Over Temperature Limit (next step). • Loading samples. • This helps ensure a stable temperature environment. Perform the Set the Over Temperature Limit.
-
Page 33: Humidify The Incubator
OPERATION UMIDIFY THE NCUBATOR The humidification pan must be filled with water and placed on the floor of the incubation chamber in order for the incubator to achieve its stated temperature uniformity specification. Humidifying the chamber helps slow the drying of samples in open, “breathable” containers. Always place and secure the copper token in the pan to slow the growth of microbiological •... -
Page 34: Set The Temperature Setpoint
OPERATION ET THE EMPERATURE ETPOINT Perform the steps below to adjust the setpoint to your process or application temperature. Set the Over Temperature Limit control to its maximum setting, if not already set to max. This prevents the heating cutoff system •... -
Page 35: Muting The Audible Temperature Alarm
OPERATION UTING THE UDIBLE EMPERATURE LARM Audible and visual deviation alarms activate if the incubation chamber temperature deviates by 1°C above or below the temperature setpoint. The low deviation alarm has a delay of 15 minutes to prevent the low alarm from sounding each time the doors are opened, causing a short-lived drop in temperature. -
Page 36: Start A Flow Of Co
OPERATION TART A LOW OF Gas Cylinder Open the cylinder valve to supply CO to the regulator. Set the regulator to deliver 15 – 20 Pounds per Square Inch (psi) to the incubator CO Port. Never exceed 20 psi. Building Supply System Initiate a flow to supply 15 –... -
Page 37: Set The Co Setpoint
OPERATION ET THE ETPOINT The incubator comes from the factory with the CO setpoint set to Off. Set the setpoint percentage to the gas concentration required by your study or production protocol. Navigate to the CO Setpoint Adjustment mode Briefly push and release either the Up or Down arrow buttons to activate the CO setpoint adjustment mode. -
Page 38: Muting The Audible Co Alarm
OPERATION UTING THE UDIBLE LARM Audible and visual deviation alarms activate if the incubation chamber CO concentration deviates by 1% above or below the CO setpoint. The low deviation audible alarm has a delay of 15 minutes to prevent the low alarm from sounding each time the doors are opened, causing a short-lived drop in CO concentration. -
Page 39: Set The Over Temperature Limit (Otl)
OPERATION Note: Test the OTL system at least once per year to verify its functionality. Failure to set the OTL voids the manufacturing defect warranty if over temperature damage occurs. (OTL) ET THE EMPERATURE IMIT This procedure sets the mechanical heating cutoff to approximately 1°C above the current chamber temperature. -
Page 40: Loading Samples
OPERATION OADING AMPLES The manufacturer strongly recommends waiting at least 12 hours after putting the incubator in operation before loading samples in the chamber. This safeguards against temperature instability. Samples should be placed at least 1 inch (25 mm) away from the chamber walls. •... -
Page 41: Data Output Capabilities
OPERATION UTPUT APABILITIES USB Outputs The incubator generates data outputs describing the chamber temperature and CO concentration percentage as a digital log line, once per minute. These outputs are transmitted through a USB-style RS232 serial port located on the right side of the unit. Required Software Viewing and logging this output requires a terminal emulator program •... -
Page 42: Condensation And The Dew Point
OPERATION ONDENSATION AND THE OINT Relative humidity inside the incubator chamber should never be allowed to exceed 95%. Exceeding this threshold will likely result in condensation, possible leaks around the incubator, and may cause corrosion damage if allowed to continue for any significant length of time. Condensation takes place whenever the humidity level in the incubator chamber reaches the dew point. -
Page 43: User Maintenance
USER MAINTENANCE Warning: Disconnect the unit from its power supply prior to performing maintenance or services. Avertissement: Débranchez cet appareil de son alimentation électrique avant d'effectuer la maintenance ou les services. LEANING AND ISINFECTING If a hazardous material or substance has spilled in the unit chamber, immediately initiate your site Hazardous Material Spill Containment protocol. -
Page 44: Minimizing Contamination Exposure
MAINTENANCE Disinfecting When disinfecting the unit, keep the following in mind: Always turn off and disconnect the unit to safeguard against electrical hazards. • For maximum effectiveness, disinfection procedures are typically performed after cleaning. • Disinfect the unit chamber using commercially available disinfectants that are non-corrosive, •... -
Page 45: Gas Lines And Hepa Filters
MAINTENANCE HEPA F INES AND ILTERS For the Optional Filtered Gas Tubing Kit The manufacturer recommends replacing the in-line gas HEPA filters once per year or “IN” when a filter is noticeably discolored. HEPA filters are directional and must be installed facing in the correct direction. •... -
Page 46: Calibrate The Temperature Display
MAINTENANCE ALIBRATE THE EMPERATURE ISPLAY Note: This procedure requires a temperature reference device. Please see the Reference Sensor Device entry on page 10 for the device requirements. Temperature calibrations match the temperature display to the actual air temperature inside the incubation chamber. - Page 47 MAINTENANCE 6. The unit temperature must be stable in order to perform an accurate calibration. The incubator must run for at least 12 hours prior to conducting a calibration. • The temperature is considered stabilized when the incubator has operated with the door •...
- Page 48 MAINTENANCE Temperature Calibration Continued Place the display in temperature calibration mode. a. Press and hold both the Up and Down temperature arrow buttons simultaneously for approximately 5 seconds. b. Release the buttons when the temperature display shows the letters “C O”. The display will begin flashing the current temperature display value.
- Page 49 MAINTENANCE Temperature Calibration Continued Compare the reference device reading with the chamber Reference Device temperature display. If the reference device and the chamber temperature • display readings are the same or the difference falls within the range of your protocol, the incubator is now calibrated for temperature.
-
Page 50: Calibrate The Co Display
MAINTENANCE ALIBRATE THE ISPLAY Note: This procedure requires a gas reference device. Please see the Reference Sensor Devices entry on page 10 for the device requirements. Gas calibrations are performed to match the incubator CO display to the actual CO concentration inside the incubation chamber. - Page 51 MAINTENANCE 5. The CO concentration in the incubation chamber must be stable in order to perform an accurate calibration. The incubator must run for at least 12 hours prior to conducting a calibration. • The CO concentration is considered stabilized when the incubator has operated with the •...
- Page 52 MAINTENANCE Calibration Continued Place the incubator CO display in its calibration mode. a. Press and hold both the Up and Down CO arrow buttons simultaneously for approximately 5 seconds. b. Release the buttons when the CO display shows the letters “C O”. The display will then begin flashing the current CO display value.
- Page 53 MAINTENANCE Calibration Continued Compare the reference device reading with the incubator CO display again. Reference Device If the reference device and the incubator display readings • are the same or the difference falls within the range of your protocol, the incubator is now calibrated for CO -OR- ...
-
Page 54: Anode And Water Quality
MAINTENANCE NODE AND ATER UALITY A replaceable metal anode comes installed in a threaded port near the water-jacket fill port on the back of the unit. The anode dissolves when in contact with the mineral salts and dissolved gases found in tap water. -
Page 55: Unit Specifications
UNIT SPECIFICATIONS The SCO6WE incubator is a 110 – 120 volt unit. Please refer to the incubator data plate for individual electrical specifications. Technical data specified applies to units with standard equipment at an ambient temperature of 25°C and at nominal voltage. The temperatures specified are determined in accordance to factory standard following DIN 12880 respecting the recommended wall clearances of 10% of the height, width, and depth of the inner chamber. -
Page 56: Max Shelves For Unit
SPECIFICATIONS HELVES Shelves APACITY Cubic Feet Liters 166.0 Range Accuracy Recovery Time 0 – 20% ± 0.1% Less than 5 minutes EMPERATURE Range Uniformity Stability Ambient +5ºC – 60ºC ± 0.2ºC at 37ºC ± 0.1°C @ 37°C OWER AC Voltage Amperage Frequency 110 –... -
Page 57: Parts List
PARTS LIST Part Part Number Part Part Number Anode, Water Jacket Gas Line HEPA Filter 0260500 2800525 Access Port Stopper Humidification Pan 995-00015 7750506 Leveling Foot Chamber Ceiling Air Duct 2700512 5121514 Power Cord 115 volt Gas Tubing Kit with 15 Amp, 9ft 5 in In-Line HEPA Filter (2.86m) NEMA 5-15P... -
Page 58: Accessories
Accessories and replacement parts can be ordered online at parts.sheldonmfg.com. If the required item is not listed online, or if you require assistance in determining which part or accessory you need contact SHEL LAB by emailing parts@sheldonmfg.com or by calling 1-800-322- 4897 ext. 3 or (503) 640-3000 ext. 3. - Page 59 PARTS 59 | P a g e...
